EDFA with low power input, high optic power output
| Parameters | Specification | |

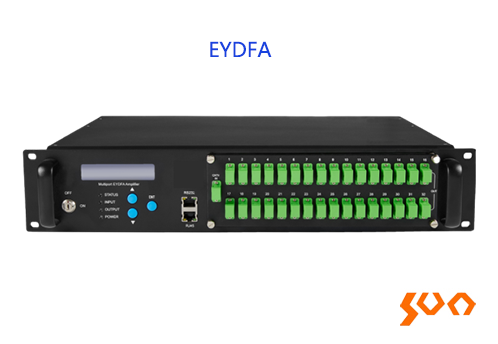

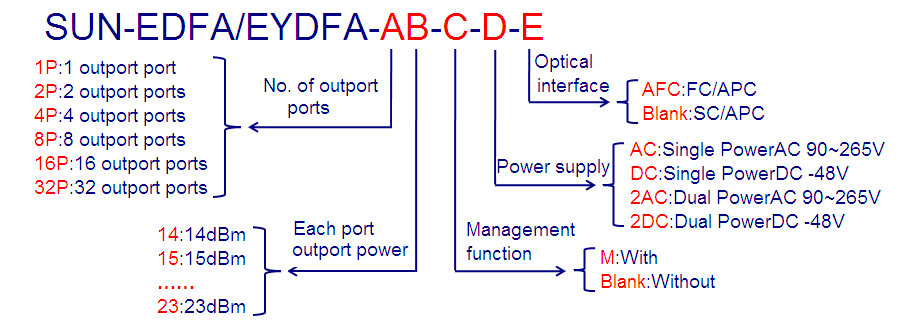

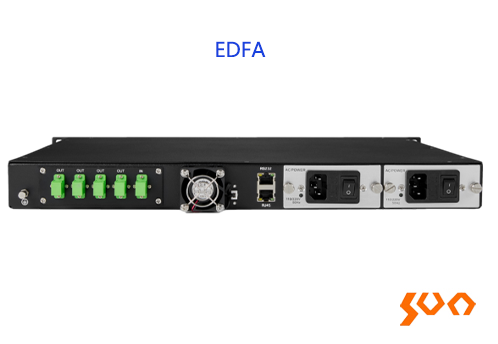

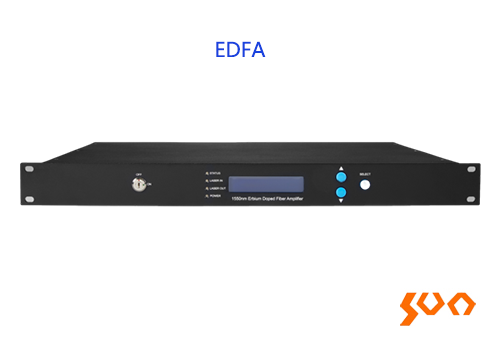

| Model | SUN-EDFA | SUN-EYDFA |
| Total Output Power (dBm) | 13 ~ 27 | 28 ~ 41 |
| No. of Output Ports | 1/2/4 | 8/16/32/64 |
| Each Port Output Power (dBm) | 13 ~ 27 | 16 ~ 23 |
| Input Power (dBm) | -10 ~ 10 | -8~10 |
| Wavelength (nm) | 1535~1565 | 1545~1565 |
| Output Power Stability (dB) | ≤ ±0.2 | |
| Bias Oscillation Sensitivity (dB) | < 0.2 | |
| Bias Oscillation Dispersion (PS) | < 0.5 | |
| Return Loss (dB) | ≥ 45 | |
| Optical Connector | FC/APC or SC/APC | |
| Noise Ratio (dB) | ≤ 5.0 | ≤ 6.0 |
| Interface | RJ45 (SNMP), RS232 or RS485 | |
| Power (W) | 50 | |
| Operation Voltage (V) | AC: 90 ~ 265 DC: -48 |
|
| Working Temperature (°C) | -20 ~ +85 | |
| Dimensions (mm) | 483 (L) x 380 (W) x 44.5 (H) | 483 (L) x 380 (W) x 89 (H) |
| Weight (kg) | 5 | 7 |
| No. | Name | Unit | Quantity |
| 1 | Fiber Amplifier | set | 1 |
| 2 | Power Adapter | piece | 1 or 2 |
SUN-CATV-T15 Optical Transmitter
Model: SUN-CATV-T15
CATV transmitter, RF input, multiple fiber ports output
Features
DFB lasers support maximum output power 16mW Perfect pre-distortion circuit AGC automatic gain control LED displays the working conditions and trouble alarm Different networks can be optimized by OMI adjustment (External Modulation Optical Transmitter has this function) Standard RJ 45 port for remote management
SUN-PLC Planar Light Wave Circuit (PLC) Splitters
Model: SUN-PLC
Splitting ratio: 1x2, 1(2)x4, 1(2)x8, 1(2)x16, 1(2)x32, 1(2)x64
Features
Low insertion loss Low PDL High reliability and stability Good channel uniformity
Fiber Optic Patch Cords and Pigtails
Model:
Different interface optional, Easy operation, Low insertion loss
Features
Low insertion loss High return loss Good repeatability
Variable Attenuation
Model:
Attenuation Value 0~30dB; FC female to female Adaptor type (bulkhead type), SM
Features
Small volume and light weight Low insertion loss (≤0.3dB) Stable and reliable attenuation value Attenuation value from 0 to 30dB continuously adjustable No wavelength limit
SUN-OPM200 Optical Power Meter
Model: SUN-OPM200
FC ⁄ SC ⁄ ST, REF, backlight control, USB port
Features
User self-calibration function Power measurements in dBm or mW Auto power off after 10 minutes without operation Standard FC/SC/ST interchangeable port Backlight LCD display for night operation REF setting function Intelligent backlight control Auto wavelength and frequency identification High storage capacity USB communication port for data transfer
SUN-OC-SLT-AP Stranded Loose Tube Light-armored (Aluminum Tape) Cable (GYTA)
Model: SUN-OC-SLT-AP
GYTA , light armored cable, 2-144cores
Features
Good mechanical and temperature performance High hydrolysis resistance and high strength loose tube Good crush resistance and flexibility High tensile strength ensured by steel wire APL moisture barrier
SUN-GE9100BP-VS Optical Line Terminal (OLT)
Model: SUN-GE9100BP-VS
1U rack mount, 2/4/8/16 PON ports, up to 1024 users (under 1:64 split ratio) for ONU access
Features
Space saving Convenient for installation and maintenance Maximum 16×PON, 8×Gigabit optical uplink and 8×Gigabit copper uplink ports
SUN-GPE1201G1FP1RW-VS Optical Network Unit (ONU)
Model: SUN-GPE1201G1FP1RW-VS
Dual mode (GPON/EPON), 1 port of SC/APC, 1 port of 10/100/1000M, 1 port of 10/100M RJ45, 1 port of VOIP POTS and 1 port of CATV (British), with wifi
Features
Dual Mode( can access gpon/epon olts ). Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc. Integrated OMCI remote configuration and maintenance function. Support rich QinQ VLAN functions and IGMP Snooping multicast features. Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset. Support 802.11n WiFi (2T2R) function. Support NAT, Firewall function. Support IPv4 and IPv6 dual stack. Integrated line testing compliant with GR-909 on POTS.
SUN-GPE1201G-VS Optical Network Unit (ONU)
Model: SUN-GPE1201G-VS
Dual Mode(GPON/EPON), 1 port of SC/UPC, 1 port of 10/100/1000M RJ45
Features
Full compatible with ITU-T G.984 Support 1 GE auto-adapting Ethernet ports Support OMCI and TR069 for remote management Support Auto-negotiation and MDI/MDIX Support the Ethernet interface rate, working mode and flows control configuration Support packet filtering and illegal message attack protection Support performance statistics of Ethernet link Support VLAN tagged label processing, traffic classification and packet filtering,. Support DHCP Option60 reporting the location information of the Ethernet interface
SUN-GPE1201G3FP2W-VS Optical Network Unit (ONU)
Model: SUN-GPE1201G3FP2W-VS
Dual Mode(GPON/EPON), 1 port of SC/UPC, 1 port of 10/100/1000M RJ45, 3 ports of 10/100M RJ45, 2 ports of VoIP POT, with Wi-Fi
Features
Dual Mode( can access gpon/epon olts ). Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc. Integrated OMCI remote configuration and maintenance function. Support rich QinQ VLAN functions and IGMP Snooping multicast features. Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset. Support 802.11n WiFi (2T2R) function. Support NAT, Firewall function. Support IPv4 and IPv6 dual stack. Integrated line testing compliant with GR-909 on POTS.
