SUN-OC-CT-SP Loose Tube Light-armored Cable (GYXTW)

Model: SUN-OC-CT-SP

GYXTW , Loose Tube Light-armored Cable, 2-24 cores

    Key Features

  • Good mechanical and temperature performance
  • High hydrolysis resistance and high strength loose tube
  • Good crush resistance and flexibility
  • High tensile strength ensured by parallel steel wires
  • Small diameter, light weight and friendly installation
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video

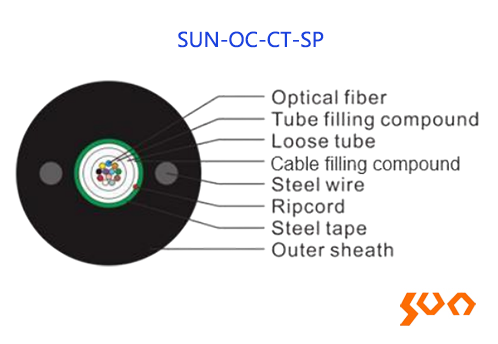

  • Sun Telecom's SUN-OC-CT-SP loose tube light-armored cable (GYXTW) construction is that 250um fibers are positioned in a loose tube which is made of high modulus plastic, filled with a water-resistant filling compound and wrapped with a layer of PSP (Steel Tape) longitudinally; Between the PSP (Steel Tape) and the loose tube a water-blocking material is applied to keep the cable compact and watertight; Two parallel steel wires are placed at the two sides of the steel tape, and the cable is completed with a polyethylene (PE) sheath.
  • Standards
    Sun Telecom’s SUN-OC-CT-SP loose tube light-armored cable (GYXTW) complies with standard IEC60794-1. Standard YD/T 769 is optional.
    Fiber Optic Characteristics
    Parameters Specification
    Fiber Type G.652D (9/125μm) G651A1 (50/125μm) G651A1b (62.5/125μm)
    Attenuation (dB/km) @850nm   ≤ 2.3 ≤ 2.7
    @1300nm   ≤ 0.6 ≤ 0.6
    @1310nm ≤ 0.35
    @1550nm ≤ 0.21
    Bandwidth (MHz·km) @850nm   ≥ 500 ≥ 200
    @1300nm   ≥ 500 ≥ 500
    Numerical Aperture   0.200±0.015NA 0.275±0.015NA
    Cable Cut-off Wavelength (nm) ≤ 1260

    Cable Specifications
    Parameters Specification
    Fiber Count 2 ~ 12 24
    Cable Diameter (mm) 8.0±0.2 8.5±0.3
    Approx. Cable Weight (kg/km) 70 80
    Outer Jacket Material MDPE
    Color Black
    Ripcord 1
    Tensile Strength (N) Short Term 1500 (fiber strain ≤0.6%)
    Long Term 600
    Crush Resistance
    (N/100mm)    		 Short Term 1000
    Long Term 300
    Min. Bending Radius (mm) Dynamic 20D
    Static 10D
    Cable Attenuation (dB/km) MM Fiber @850nm ≤ 3.0 (50/125μm)
    ≤ 3.3 (62.5/125μm)
    MM Fiber @1300nm ≤ 1.0
    SM Fiber @1310nm ≤ 0.36
    SM Fiber @1550nm ≤ 0.22
    Operating Temperature (°C) -40 ~ +70
    Storage Temperature (°C) -40 ~ +70


    Fiber and Loose Tube Color Identification
    The individual fiber and loose tubes should comply with standard TIA/EIA-598 and the color code as below.
    Fiber Colors per Tube
    NO. 1 2 3 4 5 6 7 8 9 10 11 12
    Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua

    13 14 15 16 17 18 19 20 21 22 23 24
    Blue with black strip Orange with black strip Green with black strip Brown with black strip Grey with black strip White with black strip Red with black strip Natural with black strip Yellow with black strip Violet with black strip Pink with black strip Aqua with black strip
    Color

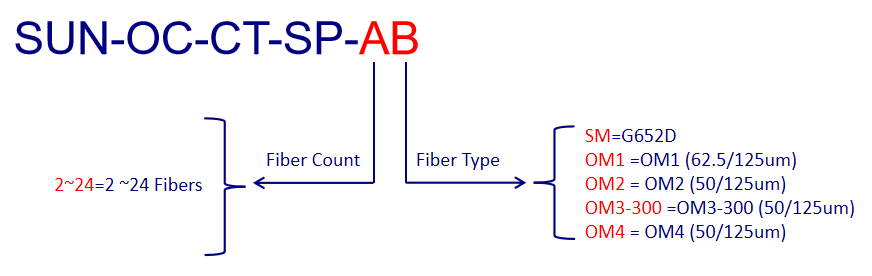

  • Example: SUN-OC-CT-SP-6SM-I
    GYXTW outdoor cable, central tube, single PSP armor and single MDPE jacket; 6 fibers, G652D; 1 ripcord
  • ● Core network
    ● Metropolitan area network
    ● Access network
