SUN-OC-SLT-SAP2 GYTA53 Cable

Model: SUN-OC-SLT-SAP2

GYTA53, Loose Tube Double Armored & Double Sheathed Cable, 2-144cores

    Key Features

  • Good mechanical and temperature performance
  • High hydrolysis resistance and high strength loose tube
  • Perfect crush resistance
  • High tensile strength ensured by steel wire
  • Good moisture-proof ensured by APL and PSP
  • Description
  • Specifications

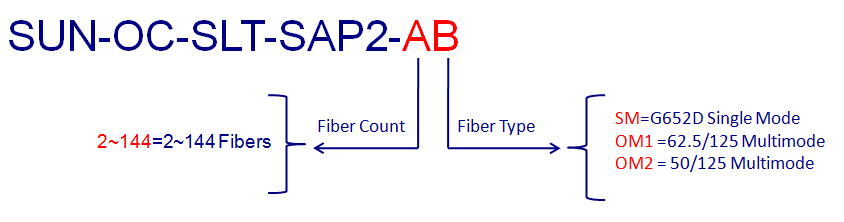

  • Ordering Information
  • Applications
  • FAQ
  • Product Video

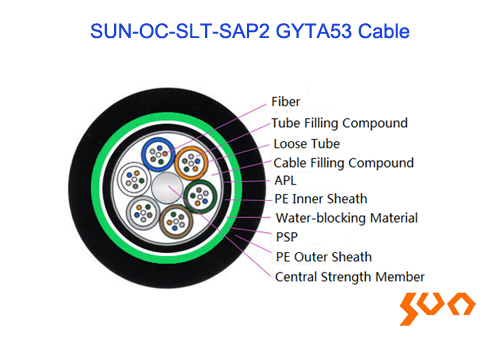

  • 　Sun Telecom’s SUN-OC-SLT-SAP2 stranded loose tube double armored and double sheathed cable (GYTA53) construction is that 250um fibers are positioned in a loose tube which is made of high modulus plastic and filled with a water-resistant filling compound; A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member; Tubes are stranded around the strength member into a compact and circular cable core; The APL (Aluminum Tape) is longitudinally applied over the cable core which is filled with the filling compound to protect it from water ingress and then the cable core is covered with a polyethylene (PE) inner sheath; After the PSP (Steel Tape) is longitudinally applied over the inner sheath, the cable is completed with a polyethylene (PE) outer sheath.

  • Standards
    Sun Telecom’s SUN-OC-SLT-SAP2 stranded loose tube double armored and double sheathed cable (GYTA53) complies with standard YD/T901 and IEC60794-1.

    Fiber Optic Characteristics
    Parameters Specification
    Fiber Type G.652D (9/125μm) G651A1
    (50/125μm)    		 G651A1b
    (62.5/125μm)
    Attenuation (dB/km) @850nm   ≤3.0 ≤3.3
    @1300nm   ≤1.0 ≤1.0
    @1310nm ≤0.36
    @1550nm ≤0.22
    Bandwidth (MHz·km) @850nm   ≥500 ≥200
    @1300nm   ≥500 ≥500
    Numerical Aperture   0.200±0.015NA 0.275±0.015NA
    Cable Cut-off Wavelength (nm) ≤1260

    Cable Specifications
    Parameters Specification
    Fiber Count 2~36 38~60 62~72 74~96 98~120 122~144
    Cable Diameter (mm) (±0.3) 12.6 13.5 13.5 14.8 16.0 17.2
    Cable Weight (kg/km) 188 225 225 217 246 279
    Tensile Strength (N) Short Term 3000
    Long Term 1000
    Crush Resistance (N) Short Term 3000
    Long Term 1000
    Bending Radius (mm) Dynamic 25D
    Static 12.5D
    Attenuation (dB/km) MM Fiber @850nm ≤3.0 (50/125μm)
    ≤3.3 (62.5/125μm)
    MM Fiber @1300nm ≤1.0
    SM Fiber @1310nm ≤0.36
    SM Fiber @1550nm ≤0.22
    Operating Temperature (°C) -40 ~ +70
    Storage Temperature (°C) -40 ~ +70



  • ● Core network
    ● Metropolian area network
