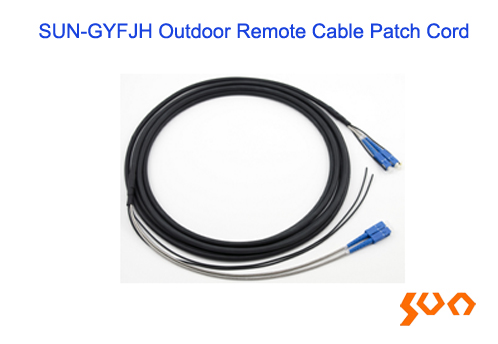

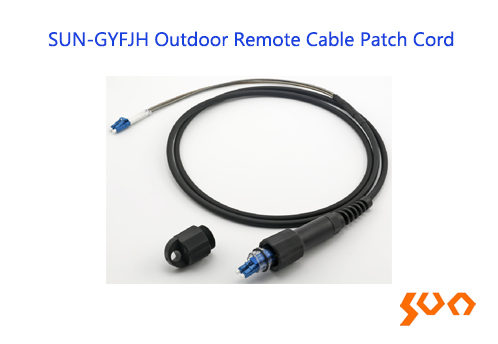

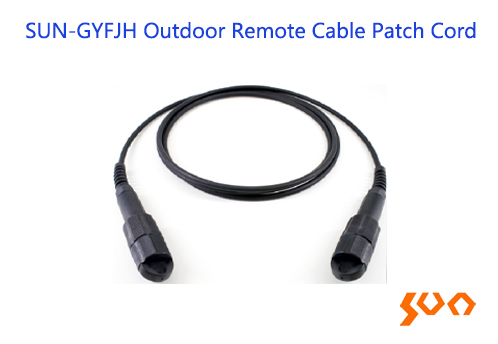

SUN-GYFJH Outdoor Remote Cable Patch Cord

Model: SUN-GYFJH

Low insertion loss, waterproof, dustproof

    Key Features

  • Low insertion loss and high return loss
  • High intensity of tension
  • Water&dust proof
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom’s SUN-GYFJH outdoor remote cable patch cord is widely used in fiber optic transmission in harsh environments like FTTA (Fiber To The Antenna). Main advantages of this patchcord: simple structure, easy handing and low cost.
    　
  • Patchcord Specifications
    Parameters
    Specification
    Connector
    Type
    PDLC-PDLC
    PDLC-DSC (DLC)
    DSC (DLC)-DSC (DLC)
    Insertion Loss (dB)
    ≤0.3
    Return Loss (dB)
    ≥50
    Main Cable
    Type
    Non-armored outdoor remote cable
    Fiber Core
    2
    Jacket Material
    LSZH
    Jacket Color
    Black
    Diameter (mm)
    7.0±0.2
    Brach Cable
    Type
    /
    3.0mm armored tube on DSC (DLC) end
    Length (m)
    /
    0.5 or as request
    Total Length (m)
    5/15/50/100 or as request
    Tolerance (m)
    0~+0.1, If L ≤10,
    0~+0.2, If 10< L≤20,
    0~+1%×L, if L>20, L= patchcord length
    Label on Cable Jacket
    As request
    RoHS
    Compliant
    Temperature (°C)
    Operating/Storage
    -20~+60

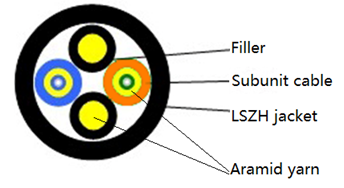

    7.0mm Non-armored Outdoor Remote Cable (GYFJH)


    Fiber Optic Characteristics
    Parameters
    Specification
    Fiber Type
    SM G652D (9/125μm)
    Attenuation (dB/km)
    @1310nm
    ≤0.35
    @1550nm
    ≤0.22
    Cable Cut-off Wavelength (nm)
    ≤1260

    Cable Specifications
    Parameters
    Specification
    Fiber Qty
    2
    Tight Buffer Fiber
    Diameter (mm)
    0.9±0.05
    Material
    LSZH
    Subunit Cable
    Diameter (mm)
    2.0±0.1
    Strength Member Material
    Aramid yarn
    Jacket Material
    LSZH
    Jacket Color
    Blue, orange
    Filler
    Quantity
    2
    Strength Member Material
    Aramid yarn
    Outer Jacket
    Diameter (mm)
    7.0±0.2
    Material
    Black LSZH
    Tensile Strength (N)
    Short Term
    400
    Long Term
    200
    Crush Resistance (N)
    Short Term
    2200
    Long Term
    1100
    Bending Radius (mm)
    Dynamic
    20D
    Static
    10D
    Cable Attenuation (dB/km)
    @1310nm
    ≤0.4
    @1550nm
    ≤0.3
    Operating/Storage Temperature (°C)
    -20 ~ +60

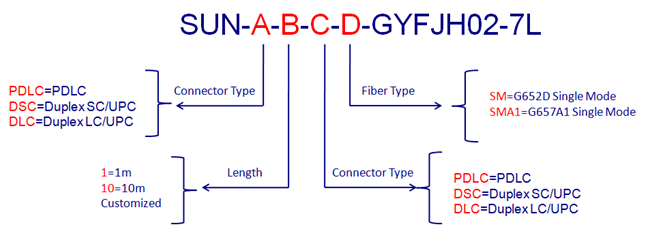

  • Example: SUN-PDLC-50M-DLC-SMA1-GYFJH02-7L
     PDLC/UPC-DLC/UPC, SM G657A1, GYFJH cable 2 cores, 7.0mm LSZH Black jacket. Cable total Length: 50m (Tolerance: 0~0.5m)

  •
    ● Telecommunication networks
    ● FTTA
