​How to Choose Fiber Optic Cable

Date: 2023-01-27 14:23:00

There are different types of fiber optic cable available in the market. They are different in sizes, shapes, colors, structure, and materials. So, how to choose the right fiber optic cable? This article will provide some tips for choosing the right fiber optic cable.

2

What is Fiber Optic Cable ?

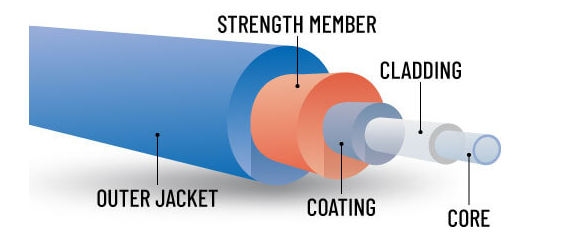

Fiber optic cable (also referred to as optical fiber cable) transmits data as pulses of light through flexible, optically pure fibers of glass or plastic. In addition, fiber optic cable is composed of four elements: core, cladding, coating, strength member, and outer jacket. The core is a thin glass/plastic fiber that transports the light pulses generated by a laser or light-emitting diode (LED). Cladding is a thin layer of glass that protects and surrounds the fiber core, reflecting light back into the core and causing light waves to travel the length of the fiber. The coating is designed to absorb shocks, prevent excessive bending and reinforce the fiber core. The strength member is designed to protect the fiber core from excessive pull forces and crushing, especially during installation, and the outer jacket protects the fiber from shocks, moisture, and other penetrative particulates.





Tips for Choosing the Right Fiber Optic Cable

1. Fiber Types
First, we should select single-mode (SM) or multi-mode (MM) fiber optic cable according to the network application and specification. Typically, SM fiber is used in long-distance and outdoor applications, and MM fiber is used in short-distance and indoor applications.

2. Fiber Counts
After we have selected the fiber type, we need to figure out how many fibers are required for the network construction. This depends a lot on the FTTX (Fiber-to- the-x) and ODN (optical distribution network ) scale and which part of the fiber optic cable is used.
A backbone fiber optic cable from the data center to the distribution cabinet can have fiber counts from 24 cores to 288 cores. Fiber counts for distribution fiber optic cable are like backbone fiber optic cable but normally fewer. And FTTH drop cable is normally 1 core or 2 cores.

3. Application Environment
The structure and material of the fiber optic cable should also be considered based on where the fiber optic cable is used.

Outdoor
When it’s an outdoor application and cable needed to be directly buried, a loose tube-stranded armored fiber optic cable is the best choice. This cable provides crush protection for optical fiber and the cable itself.
When it’s an aerial construction, a fiber cable that can support its weight is a better one. A self-supporting fiber optic cable has strength members such as an extra steel wire or FRP messenger or aramid yarn to provide performance on tensile. The most common self-supporting fiber optic cable structures are figure 8 and ADSS.

Indoor
Cable characteristics of flame retardant, low smoke, and halogen-free (LSZH) should be the first thing we need to pay attention to when the cable is used indoors. Normally, we can check this from the class of cable flame retardant and sheath material like LSZH.
In pipeline places, flame retardant (FR), and the smoke-free or combustible non-toxic type (LSZH) are good solutions. In an exposed indoor environment, a fiber cable of flame retardant, non-toxic, and smokeless type (riser cable) is required.
A tight buffer fiber also provides good mechanical performance such as a small bend diameter, soft and easy to strip for indoor application.

Building
When laying cables vertically or horizontally in the building, it is recommendable to select tight buffer fiber cables, distribution cables, or branch optical cables.

4. Connectors
The connector plays a key role in establishing a secure fiber network. The main types of connectors include ST, FC, SC, LC, and  MTP. The ST (straight tip) connector is the most popular connector in MM networks. It’s spring-loaded, which means it can be easily connected and removed.FC (ferrule connector) has a threaded body and is mainly used in high-vibration environments, polarized optical fibers, and SM fibers. The SC (subscriber connector) is a snap-in connector that latches with a simple push-pull motion. It’s mainly used in SM fiber, duplex networks, CATV, media converters, and FTTX. LC (Lucent connector) is a standard ceramic ferrule connector that can be easily terminated with any adhesive, nearly half the size of the SC connector. It is mainly used for SM fiber,  data centers, local networks, FTTH, CATV, etc. MTP (Multi-fiber termination push-on) connector is a registered trademark of US conec and provides a high-performance MPO connector designed for better optical and mechanical performance. It is used in data centers, broadcast communications, and industrial control applications.





Conclusion
So these have been a few of the several factors, which we need to consider when it comes to choosing the right fiber optic cables. Consider the tips in mind and pick the ones which are favorable for your applications. Sun Telecom provides a wide range of options for fiber optic cables to the global market. Contact us if you have any needs.

Position : Home >Products

Related News

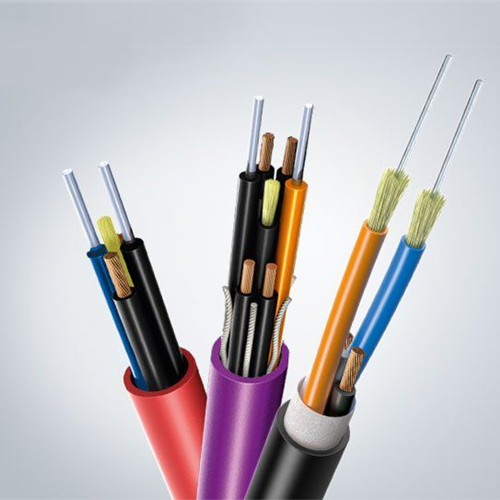

Hybrid Fiber Optic Cable - All You Need to Know
