Indoor or outdoor, 1x1:8 or 1x1:16 splitters, Max adaptors: 16, SC, DLC (SC type) adaptor
| Parameters | Specification | |
| Max. No. of Adapters | 16 | |
| Adaptor Type | SC, DLC (SC type) | |
| Splitter Type | Blockless PLC splitter | |
| No. of Inlet and Outlet Ports | 2 in 16 out | |

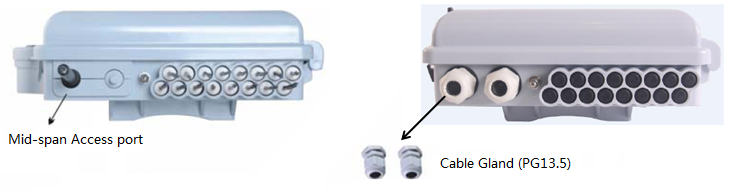

| Inlet Port Type1 | Mid-span access port or Cable gland(PG13.5) | |
| Cable Diameter (mm) | Inlet Port | 7 ~ 13 |
| Outlet Ports | 3 x 2mm drop cable | |
| Protection Rate | IP65 | |
| Material | PC+ABS | |
| Operating Temp (°C) | -25 ~ +55 | |
| Dimensions (mm) | 301 (L) x 224 (W) × 73 (H) | |
| Weight (kg) | 1.3 | |
| No. | Name | Unit | Quantity |
| 1 | Fiber Optic Distribution Box | set | 1 |
| 2 | Protective Tube (0.5m) | piece | 1 |
| 3 | Protective Sleeves | pieces | 16 |
| 4 | Ties | pieces | 10 |
| 5 | Key | pieces | 2 |
| Model | Name | Description |

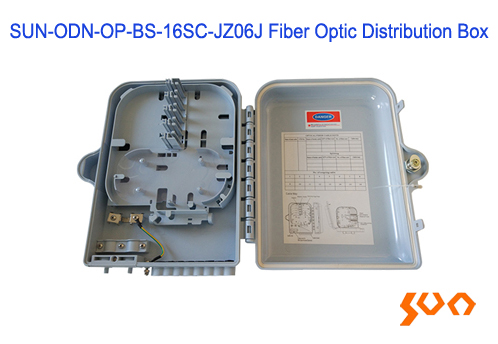

| SUN-ODN-OP-BS-16SC-MS-P-JZ06J | Fiber Optic Distribution Box | Gray; Suitable for 1 piece of 1x16 (or 1 piece of 1x8) blockless type PLC splitter; With the adaptor panel for max. 16 pieces of SC or duplex LC (SC type); Splitter and adapters NOT included；2 cable input ports (mid-span port included), 16 cable output ports; Material: PC+ABS; Dimensions: 301 (L) x 224 (W) x 73 (H) mm; Pole mounting accessories included |
| SUN-ODN-OP-BS-16SC-MS-W-JZ06J | Fiber Optic Distribution Box | Gray; Suitable for 1 piece of 1x16 (or 1 piece of 1x8) blockless type PLC splitter; With the adaptor panel for max. 16 pieces of SC or duplex LC (SC type); Splitter and adapters NOT included；2 cable input ports (mid-span port included), 16 cable output ports; Material: PC+ABS; Dimensions: 301 (L) x 224 (W) x 73 (H) mm; Wall mounting accessories included |
| SUN-ODN-OP-BS-16SC-CG-P-JZ06J | Fiber Optic Distribution Box | Gray; Suitable for 1 piece of 1x16 (or 1 piece of 1x8) blockless type PLC splitter; With the adaptor panel for max. 16 pieces of SC or duplex LC (SC type); Splitter and adapters NOT included；2 cable input ports (cable gland included), 16 cable output ports; Material: PC+ABS; Dimensions: 301 (L) x 224 (W) x 73 (H) mm; Pole mounting accessories included |
| SUN-ODN-OP-BS-16SC-CG-W-JZ06J | Fiber Optic Distribution Box | Gray; Suitable for 1 piece of 1x16 (or 1 piece of 1x8) blockless type PLC splitter; With the adaptor panel for max. 16 pieces of SC or duplex LC (SC type); Splitter and adapters NOT included；2 cable input ports (cable gland included), 16 cable output ports; Material: PC+ABS; Dimensions: 301 (L) x 224 (W) x 73 (H) mm; Wall mounting accessories included |
