Position: Home > Products > Fiber Optic Cables > Cable Ducts

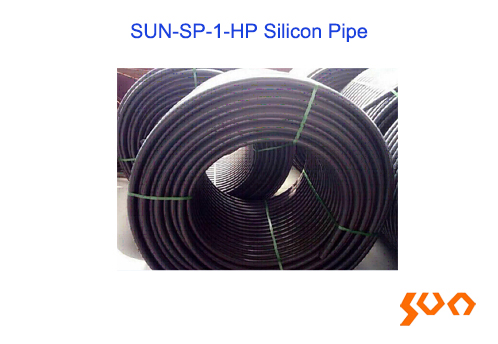

SUN-SP-1-HP Silicon Pipe

Model: SUN-SP-1-HP

Low friction, corrosion-resistance, high sealing performance, suitable for outdoor cable

    Key Features

  • Low friction internal coating for maximum fiber blowing distance
  • High sealing performance
  • Heat and corrosion resistance
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-SP-1-HP silicon pipe is a new type of composite pipe with silicone solid lubricant; made by high density polyethylene, and the core layer is silicone resin, a solid lubricant with the lowest friction coefficient. It is a low cost, corrosion-resistance pipe which has a high sealing performance. SUN-SP-1-HP silicon pipe is widely used in optical cable communication network system of highway and railway.

  • Specification
    Parameters Specification
    Duct Material HDPE
    Diameter (mm) 50/42 +0.3 40/33+0.3 32/28+0.3
    Wall Thickness (mm) 4.0 ±0.2 3.5 ±0.2 2.0 ±0.2
    Inner Surface Smooth with silicon
    Drum length (m) 3000 or customized
    Raw Materials Melt flow index (g/10 minutes) 0.1~0.3 (EN ISO 1133)
    Density (g/cm3) Min.0.94(ISO 1183)
    Tensile Strength at Yield (MPa) Min.21(ISO 527)
    Elongation at the Break (%) 350 (ISO 527)
    Environmental Stress Crack Resist(hours) Min.350(ISO 4599)
    Installation Temperature (℃) -20 ~ 50
    Storage Temperature (℃) -40 ~ 70
    Note: The Duct diameter can be customized according to customer requirements
  • Ordering Information
    SUN-SP-A-B-CD-E
    A B C D E
    Number of ways Diameter Material of Outer Jacket Thickness of Outer Jacket Ribs Inner Surface
    1=1 way
         		 5042=50/42mm
    4033=40/33mm
    3228=32/28mm
    Others    		 HP=HDPE
         		 4=4.0mm for 50/42mm duct
    3.5=3.5mm for 40/33mm duct
    2=2.0mm for 32/28mm duct
    Others    		 R= Include
    Blank= Not Include


  •  ● Outdoor cable blowing
     ● Duct system laying
