SUN-GE9100B-VS Optical Line Terminal (OLT)

Model: SUN-GE9100B-VS

1U rack mount, 2/4/8/16 PON ports, up to 1024 users (under 1:64 split ratio) for ONU access

    Key Features

  • Space saving
  • Convenient for installation and maintenance
  • Maximum 16×PON, 8×Gigabit optical uplink and 8×Gigabit copper uplink ports
  • Description
  • Specifications
  • Ordering Information

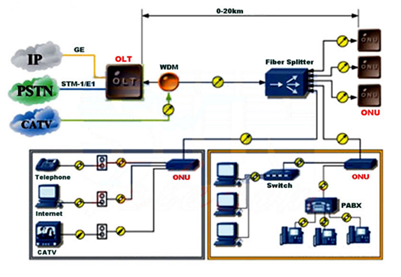

  • Applications
  • FAQ
  • Product Video
  • Sun Telecom’s SUN-GE9100B-VS series of EPON OLTs is high reliability, flexibility and easy to maintain. It supports 2/4/8/16 PON ports and connects max 1024 remote ONUs (by 1:64 splitting ratio). It is used to provide internet and IP integrated access services for users.
    　
  • Parameters
    Specification
    Model
    SUN-GE9102B-VS
    SUN-GE9104B-VS
    SUN-GE9108B-VS
    SUN-GE9116B-VS
    Package
    1U rack mount
    Hot-swappable
    Support
    Power Supply (V)
    AC: 100~240
    AC: 100~240
    Double AC: 100 ~ 240
    Double DC: -36 ~ -72
    Double AC: 100 ~ 240
    Double DC: -36 ~ -72
    Power Consumption (W)
    25
    30
    52
    102
    Working Temperature (°C)
    -10~55
    Storage Temperature (°C)
    -40~85
    Humidity (%)
    5~95, no condensing
    Dimensions (mm)
    442 (L) × 200 (W) × 43.6 (H)
    442 (L) × 320 (W) × 43.6 (H)
    Weight (kg)
    3.1
    4.2
    4.5
    6.5

    Service Features
    Item
    Feature
    Model
    SUN-GE9102B-VS
    SUN-GE9104B-VS
    SUN-GE9108B-VS
    SUN-GE9116B-VS
    Uplink Ports
    QTY
    4
    8
    16
    12
    Ethernet Interface
    2×10/100/1000M RJ45 Ports, auto-negotiable
    4×10/100/1000M RJ45 Ports, auto-negotiable
    8×10/100/1000M RJ45 Ports, auto-negotiable
    4×10/100/1000M RJ45 Ports, auto-negotiable
    Optical Interface
    2×SFP slots
    4×SFP slots
    4×SFP and 4×SFP+ slots
    4×SFP and 4×SFP+ slots
    PON Ports
    QTY
    2
    4
    8
    16
    Interface
    SFP slots
    Max. Splitting Ratio
    1:64
    Max Transmission (km)
    20
    Speed (Gbps)
    1.25
    Wavelengths (nm)
    1310 (RX )/1490 (TX)
    Optical Port
    SC/UPC
    Fiber Type
    9/125um SMF
    Tx Power (dBm)
    2~7
    Rx Sensitivity (dBm)
    -27
    Saturation Optical
    Power (dBm)
    -6
    Management Modes
    SNMP, Telnet, CLI
    Layer-2 Switch
    • VLAN port and VLAN protocol
    • VLAN TAG/UNTAG, VLAN transparent, VLAN transmission
    • 4096 VLAN
    • 802.3dd trunk
    • RSTP
    • QOS based on port, VID, TOS and Mac address
    • IGMP snooping
    • 802.x flow control
    • Port stability statistic and monitoring
    • ONU switch in the same PON
    EPON Functions
    • In compliance with IEEE802.3ah standard
    • Dynamic Bandwidth Allocation (DBA)
    • Standard OAM and extended OAM
    • ONU auto-discovery/Link detection/remote upgrade of software
    • Dynamic measuring distance
    • ACL and SNMP to configure data packet filter flexibly
    • Various LLID configuration and single LLID configuration. Different QoS for different users and different services by means of different LLID channels
    • RSTP, IGMP Proxy
    Management Functions
    • Fan group detecting
    • Port status monitoring and configuration management
    • Layer-2 switch configuration such as VLAN Trunk, RSTP, IGMP, QOS etc.
    • EPON management function: DBA, ONU authorization, ACL, QOS etc.
    • Online ONU configuration and management
    • User management
    • Alarm management

    Standard Package
    No.
    Name
    Unit
    Quantity
    1
    Optical Line Terminal (OLT)
    set
    1
    2
    Power Line
    piece
    1
    3
    Console Line
    piece
    1
    4
    USB Disk
    piece
    1

    Optional Accessories
    No.
    Name
    Unit
    Quantity
    1
    Downlink 1.25G Optical Transceiver
    pieces
    1~8
    2
    Uplink 1.25G Optical Transceiver
    pieces
    1~8
    3
    Uplink 10G Optical Transceiver
    pieces
    1~4

  • Model
    Name
    Description
    SUN-GE9102B-AC-VS
    Optical Line Terminal (OLT)
    1U rack mount; 2 ports of uplink 10/100/1000M RJ45, 2 slots for uplink optical SFP modules and 2 slots for downlink optical SFP modules; 1 port of CONSOLE and 1 port of management; Free EMS software; Internal power supply: AC100-240V (single power)
    SUN-GE9104B-AC-VS
    Optical Line Terminal (OLT)
    1U rack mount; 4 ports of uplink 10/100/1000M RJ45, 4 slots for uplink optical SFP modules and 4 slots for downlink optical SFP modules; 1 port of CONSOLE and 1 port of management; Free EMS software; Internal power supply: AC100-240V (single power)
    SUN-GE9108B-2AC-VS
    Optical Line Terminal (OLT)
    1U rack mount; 8 ports of uplink 10/100/1000M RJ45, 4 slots for uplink optical SFP modules and 4 slots for uplink optical SFP+ modules, 8 slots for downlink optical SFP modules; 1 port of CONSOLE and 1 port of management; Free EMS software; Internal power supply: AC100-240V (double power)
    SUN-GE9108B-2DC-VS
    Optical Line Terminal (OLT)
    1U rack mount; 8 ports of uplink 10/100/1000M RJ45, 4 slots for uplink optical SFP modules and 4 slots for uplink optical SFP+ modules, 8 slots for downlink optical SFP modules; 1 port of CONSOLE and 1 port
    of management; Free EMS software; Internal power supply: DC-48V (double power)
    SUN-GE9116B-2AC-VS
    Optical Line Terminal (OLT)
    1U rack mount; 4 ports of uplink 10/100/1000M RJ45, 4 slots for uplink optical SFP modules and 4 slots for uplink optical SFP+ modules, 16 slots for downlink optical SFP modules; 1 port of CONSOLE and 1 port of management; Free EMS software; Internal power supply: AC100-240V (double power)
    SUN-GE9116B-2DC-VS
    Optical Line Terminal (OLT)
    1U rack mount; 4 ports of uplink 10/100/1000M RJ45, 4 slots for uplink optical SFP modules and 4 slots for uplink optical SFP+ modules, 16 slots for downlink optical SFP modules; 1 port of CONSOLE and 1 port
    of management; Free EMS software; Internal power supply: DC-48V (double power)
    SUN-SFP-125013-20LC
    Optical Transceiver
    1.25Gb/s, 1310nm; SM, dual fiber, 20km; LC/UPC port, without DDM
    SUN-SFP-10G13-10LC-D
    Optical Transceiver
    SFP+, 10Gbps, 1310nm; SM, dual fiber, 10km; LC/UPC port, with DDM
    SUN-GE9100B-GS20D-VS
    Optical Transceiver
    Downlink optical SFP module, 1.25G, single-mode single fiber, 1490nm TX/1310nm RX, SC/UPC port, 20km; Used in SUN-GE9100B-VS series OLT
