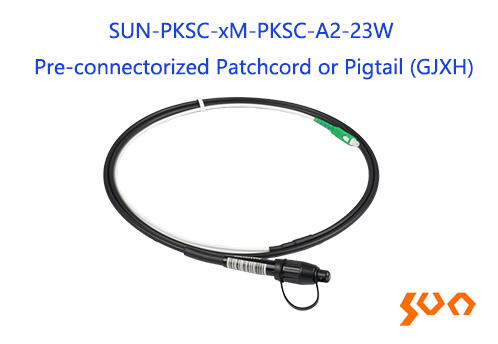

Type K pre-connectorized connector; Flat drop cable (without messenger wire)
Parameters | Specification | ||
Before Cable | After Cable | ||
Fiber Type | SM G657A2 | ||
Mode Field Diameter (um) | 8.6~9.2±0.4 (@1310nm) | ||
Cladding Diameter (um) | 125±0.7 | ||
Coating Diameter (um) | 245±10 | ||
Core Concentricity Error (um) | ≤0.5 | ||
Cladding Non-circularity (%) | ≤1.0 | ||
Zero Dispersion Wavelength (nm) | 1300~1324 | ||
Cable Cut-off Wavelength (nm) | ≤1260 | ||
Fiber Attenuation (dB/km) | @ 1310nm | ≤0.35 | ≤0.4 |
@ 1550nm | ≤0.21 | ≤0.3 | |
Macro bending Loss (dB) | 7.5mm radius, 1 turn | ≤0.5 @1550nm | |
7.5mm radius, 1 turn | ≤1.0 @1625nm | ||
10mm radius, 1 turn | ≤0.1 @1550nm | ||
10mm radius, 1 turn | ≤0.2 @1625nm | ||
15mm radius, 10 turns | ≤0.03 @1550nm | ||
15mm radius, 10 turns | ≤0.1 @1625nm |

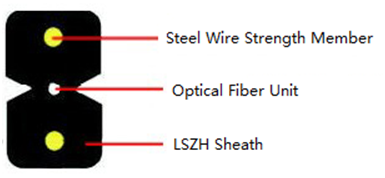

Parameters | Specifications | |
Fiber Count | 1 | |
Strength Member | Material | Steel Wire |
Number | 2 | |
Diameter (mm) | 0.4 | |
Outer Jacket | Material | LSZH |
Color | Black | |
Nominal Cable Dimension (mm) (W×H) | (2.0±0.1) x (3.0±0.1) | |
Tensile Strength (N) | Short Term | 200 |
Long Term | 100 | |
Crush Resistance (N/100mm) | Short Term | 1000 |
Long Term | 300 | |
Min. Bending Radius(mm) | Dynamic | 60 |
Static | 30 | |
Cable Attenuation (dB/KM) | At 1310nm | ≤0.4 |
At 1550nm | ≤0.3 | |
Operating Temperature (°C) | -20 ~ +60 | |
Storage Temperature (°C) | -20 ~ +60 |
Parameters | Specifications | ||
Side A | Type K pre-connectorized connector (SC/UPC or SC/APC) | ||
Side B | Type K pre-connectorized connector (SC/UPC or SC/APC) or open end | ||
Insertion Loss (dB) | ≤0.3 | ||
Return Loss (dB) | ≥50 (UPC); ≥60 (APC) | ||
Length (m) | As request | ||
Tolerance (m) | 0~+0.1, L≤10, 0~+0.2, 10~20, 1%×L, L≥20, L=patchcord length |
||
Temperature Range (°C) | -20~+60 |
