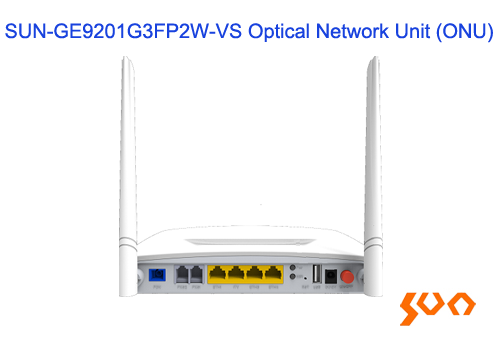

SUN-GE9201G3FP2W-VS Optical Network Unit (ONU)

Model: SUN-GE9201G3FP2W-VS

1xSC/APC optical port, 1x10/100/1000M, 3x10/100M RJ45 ports and 2xVoIP POTS ports

    Key Features

  • Compliant with IEEE802.3ah Standard
  • Up to 20KM transmission distance
  • VoIP function
  • 802.11 n/b/g Wi-Fi
  • Data encryption and group broadcasting
  • Broadcasting storm resistance function
  • VLAN division
  • Port isolation between different ports
  • ACL and SNMP to configure data packet filter flexibly
  • Dynamic Bandwidth Allocation (DBA)
  • Various LLID configuration and single LLID configuration
  • Software online upgrading
  • EMS network management based on SNMP and convenient for maintenance
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-GE9201G3FP2W-VS optical network unit (ONU) is one of the EPON products used in user side. This ONU has 1 x SC/UPC optical port, 1 x 10/100/1000M, 3 x 10/100M RJ45 ports and 2 x VoIP POTS ports. It is compliant with IEEE EPON standard. It provides triple play and Wi-Fi service.
  • Specifications
    Parameters Specification
    Rate (Gbps) Uplink: 1.244
    Downlink: 1.244
    Optical Output Power (dBm) -1 ~ 4
    Receiving Sensitivity (dBm) -27
    Receiving Saturability (dBm) -3
    PON Interface 1 x SC/UPC optical port
    Data Interface 1 x 10/100/1000M and 3x10/100M RJ45 ports
    POTS Interface 2 x VoIP ports
    Power Supply External power adapter, 12V/1A
    Power Consumption (W) < 7
    Working Temperature (ºC) 0 ~ +50
    Humidity 10 ~ 90%, no condensing
    Dimensions (mm) 205 (L) x 140 (W) x 37 (H)
    Weight (g) 340

    Standard Package
    No. Name Unit Quantity
    1 Optical Network Unit (ONU) set 1
    2 Power Adapter set 1
    3 UTP Patch Cord piece 1

  • Ordering Information
    Model Name Description
    SUN-GE9201G3FP2W-VS Optical Network Unit (ONU) EPON; 1 port of SC/UPC, 1 port of 10/100/1000M, 3 ports of 10/100M RJ45 and 2 ports of VoIP POTS; With Wi-Fi; External power supply: AC100~240V to DC12V power adapter

    Other Options of ONUs
    Model Name Description
    SUN-GE9204GP2RW-VS Optical Network Unit (ONU) EPON; 1 port of SC/APC, 4 ports of 10/100/1000M RJ45, 2 ports of VoIP POTS and 1 port of CATV Threaded F-female (British); With Wi-Fi; External power supply: AC100~240V to DC12V power adapter
    SUN-GE9201H(Z)G-VS Optical Network Unit (ONU) EPON; 1 port of SC/UPC and 1 port of 10/100/1000M RJ45; External power supply: AC100~240V to DC12V power adapter
    SUN-GE9201GW-VS Optical Network Unit (ONU) EPON; 1 port of SC/UPC,1 port of 10/100/1000M RJ45; With Wi-Fi; External power supply: AC100~240V to DC12V power adapter

  • ● FTTH access networks
    ● Telecommunication networks
    ● Local Area Networks
