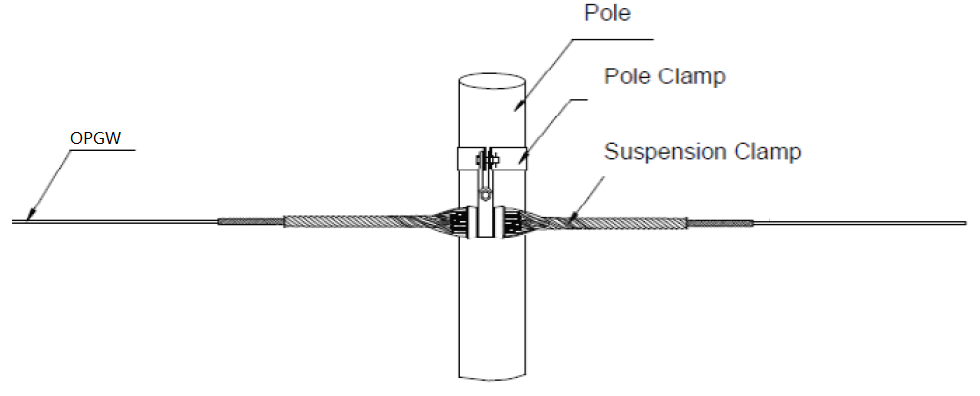

For OPGW Cables
| Item | Parameter | |
| Type | Single type suspension | |
| Material | Flat steel (50mm width × 5mm thickness) | |
| Surface | Hot dip galvanizing | |
| Bolt Dimension (mm) | M16 × 70 | |
| Standard Package | Each pole clamp including 2 bolts, 2 nuts, 2 flat washers, 2 spring washers | |
| Thickness of Galvanizing Coating (um) | ≥85 | |
| Model | Suitable Pole Diameter | |
| SUN-OPGW-PC-D125 | Used for pole and pole diameter: 101~125mm; Material: hot dip galvanized flat steel, dimensions (mm): 50 (W) × 5 (T) | |
| SUN-OPGW-PC-D150 | Used for pole and pole diameter: 126~150mm; Material: hot dip galvanized flat steel, dimensions (mm): 50 (W) × 5 (T) | |
| SUN-OPGW-PC-D175 | Used for pole and pole diameter: 151~175mm; Material: hot dip galvanized flat steel, dimensions (mm): 50 (W) × 5 (T) | |
| SUN-OPGW-PC-D200 | Used for pole and pole diameter: 176~200mm; Material: hot dip galvanized flat steel, dimensions (mm): 50 (W) × 5 (T) | |
| SUN-OPGW-PC-D225 | Used for pole and pole diameter: 201~225mm; Material: hot dip galvanized flat steel, dimensions (mm): 50 (W) × 5 (T) | |
| SUN-OPGW-PC-D250 | Used for pole and pole diameter: 226~250mm; Material: hot dip galvanized flat steel, dimensions (mm): 50 (W) × 5 (T) | |
| SUN-OPGW-PC-D275 | Used for pole and pole diameter: 251~275mm; Material: hot dip galvanized flat steel, dimensions (mm): 50 (W) × 5 (T) | |
| SUN-OPGW-PC-D300 | Used for pole and pole diameter: 276~300mm; Material: hot dip galvanized flat steel, dimensions (mm): 50 (W) × 5 (T) | |
| SUN-OPGW-PC-D325 | Used for pole and pole diameter: 301~325mm; Material: hot dip galvanized flat steel, dimensions (mm): 50 (W) × 5 (T) | |
SUN-OPGW Fiber Optic Cable
Model: SUN-OPGW
OPGW Cable, Stainless-steel optical fiber unit, Aluminum-clad steel wire, 2~48 cores
Features
Stainless-steel optical fiber unit with layer stranding structure Aluminum alloy wire and aluminum clad steel wire armored Coated with anticorrosive grease between layers Heavy load capacity and long span installation Used in constructing high pressure line over 110KV
SUN-FOSC-OPAD OPGW&ADSS Fiber Optic Splice Closure
Model: SUN-FOSC-OPAD
Max 144 fibers, 48 fibers ⁄ tray; 4 ports; Aluminum alloy
Features
Prompt, easy and convenient installation Good sealing performance Whole body of the closure is made of high strength AL-alloy High mechanical strength Can be reused, easy to rejoin and expand capacity Used on pole or tower
SUN-OPGW-CSR Cable Storage Rack
Model: SUN-OPGW-CSR
For OPGW Cables
Features
Hot dip galvanized surface treatment, against rust and corrosion A large space meet cable minimun radius of curvature Used on pole or tower
SUN-OPGW-TCTC/TCSC Series Tower Clamp
Model: SUN-OPGW-TCTC/TCSC
For OPGW Cables
Features
Used on tower Hot dip galvanized surface treatment, against rust and corrosion
SUN-OPGW-LDC Series Lead Down Clamp
Model: SUN-OPGW-LDC
For OPGW Cables
Features
Reliable, convenient and fast installation Used on pole or tower
SUN-OPGW-DSC Series Double Suspension Clamp
Model: SUN-OPGW-DSC
For OPGW Cables
Features
Mainly used on long span rivers and valleys with large drop in level Stress is equally distributed in large touching area Aluminum alloy rods against corrosion and improve the mechanical properties Double layer of preformed armored rods Used on pole or tower
SUN-OPGW-SC Series Single Suspension Clamp
Model: SUN-OPGW-SC
For OPGW Cables
Features
Simple structure, easy installation Stress is equally distributed in large touching area Double layer of preformed armored rods Used on pole or tower
SUN-OPGW-GW Grounding Wire
Model: SUN-OPGW-GW
For OPGW Cables
SUN-OPGW-VD Vibration Damper
Model: SUN-OPGW-VD
For OPGW Cables
SUN-OPGW-TS Series Tension Clamp
Model: SUN-OPGW-TS
For OPGW Cables
Features
Connect with the pole or tower and bear the line load Stress is equally distributed without intensive stress pivot Aluminum clad steel wires rod against corrosion and improve the mechanical properties Double layer of preformed armored rods Used on pole or tower
