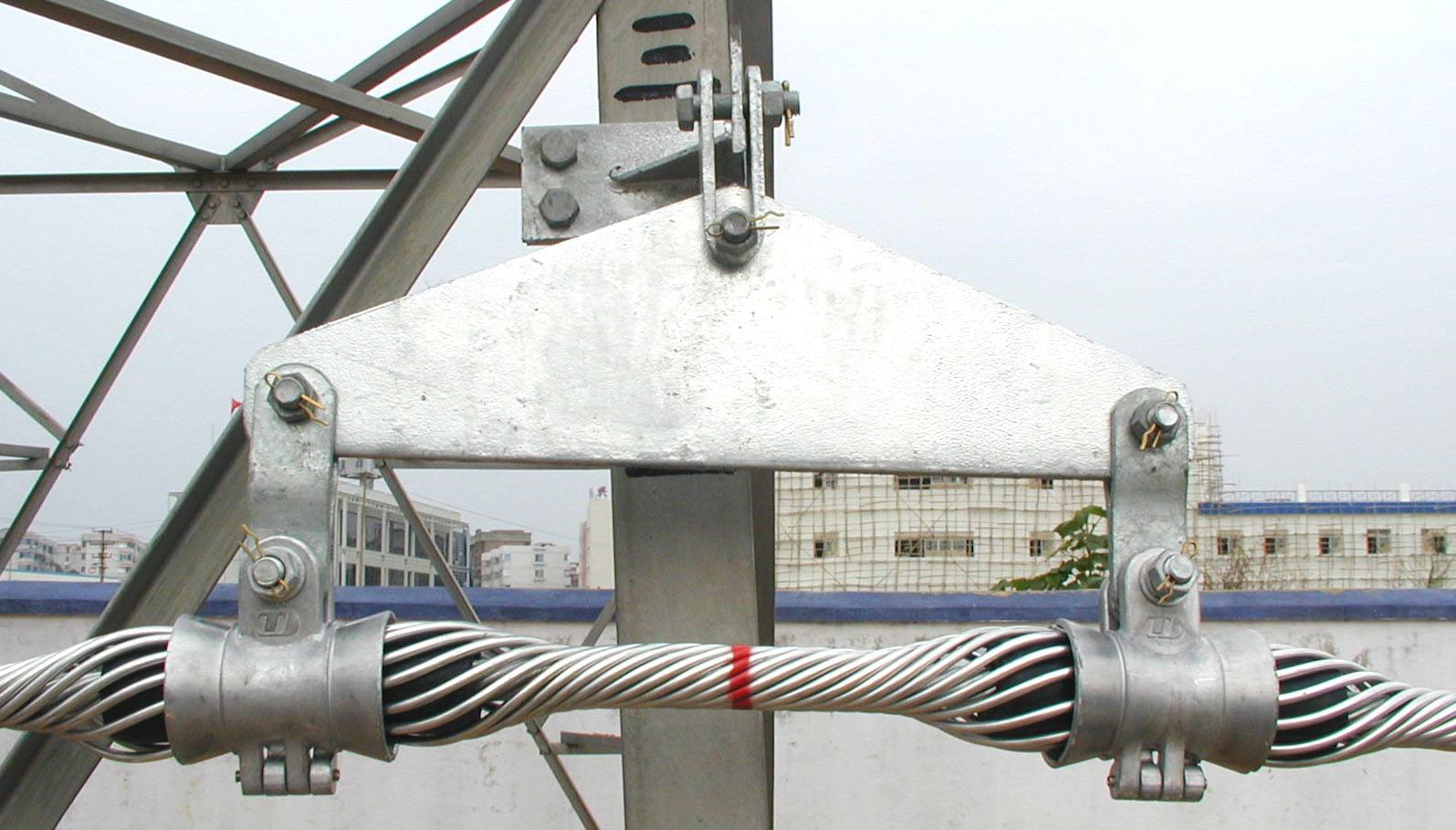

For OPGW Cables
| Item | Parameter | |
| Material | Shackle, Yoke plate, PS type clevis hinge | Galvanized steel |
| Housing | Aluminum | |
| Inner/outer preformed armored rods | Aluminum alloy | |
| Insert | Rubber | |
| Strength Class (KN) | 70, 100, 120 | |
| Suitable Cable Diameter (mm) | 9.8~10.6, 10.6~11.5, 11.5~12.3, 12.3~13, 13~14, 14~15, 15~15.8, 15.8~16.8, etc | |
| Layer of Preformed Armor Rods | Double layer | |

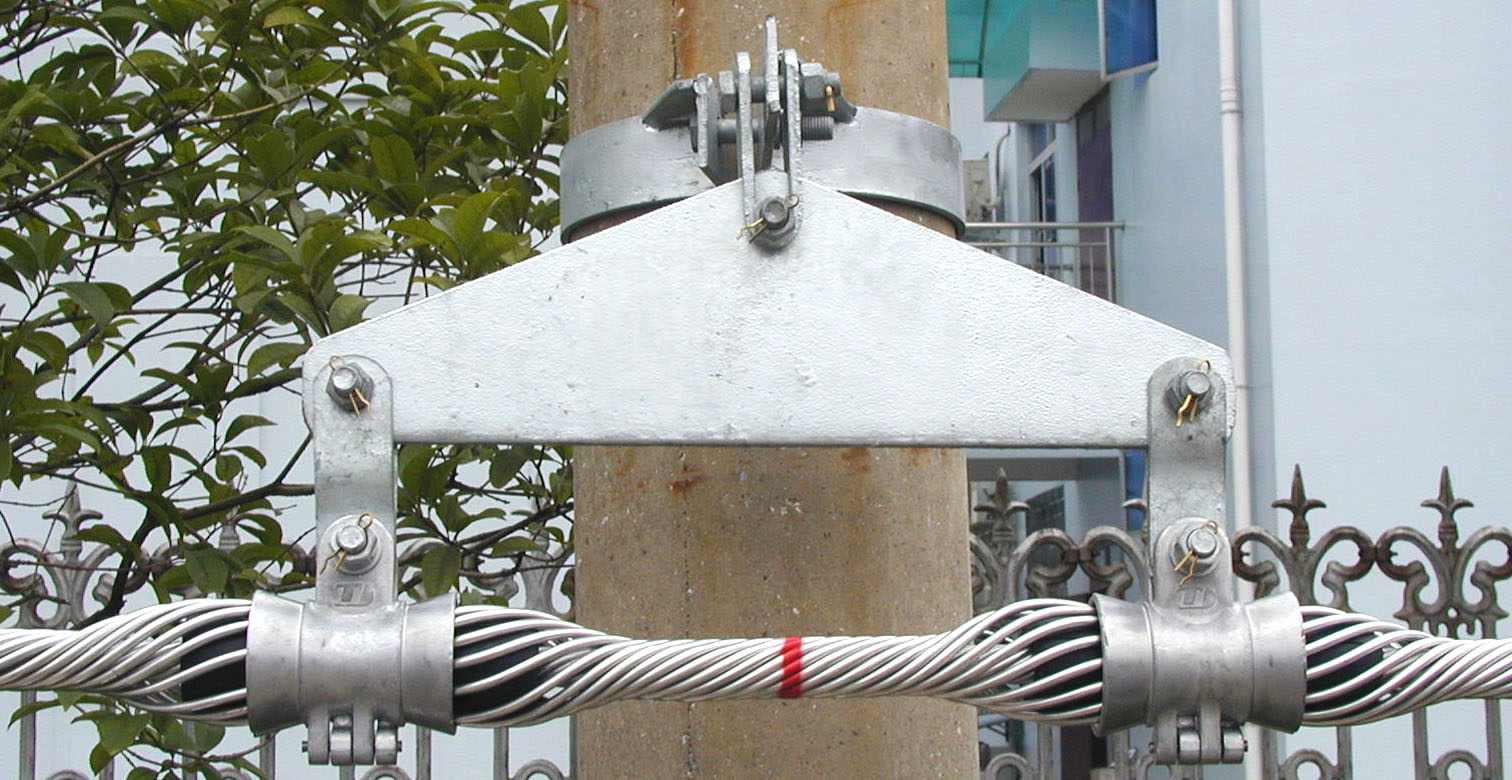

Pole mounted

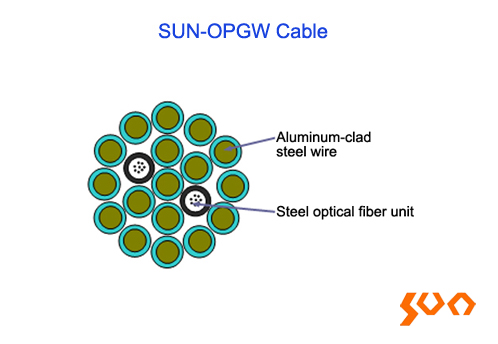

SUN-OPGW Fiber Optic Cable
Model: SUN-OPGW
OPGW Cable, Stainless-steel optical fiber unit, Aluminum-clad steel wire, 2~48 cores
Features
Stainless-steel optical fiber unit with layer stranding structure Aluminum alloy wire and aluminum clad steel wire armored Coated with anticorrosive grease between layers Heavy load capacity and long span installation Used in constructing high pressure line over 110KV
SUN-FOSC-OPAD OPGW&ADSS Fiber Optic Splice Closure
Model: SUN-FOSC-OPAD
Max 144 fibers, 48 fibers ⁄ tray; 4 ports; Aluminum alloy
Features
Prompt, easy and convenient installation Good sealing performance Whole body of the closure is made of high strength AL-alloy High mechanical strength Can be reused, easy to rejoin and expand capacity Used on pole or tower

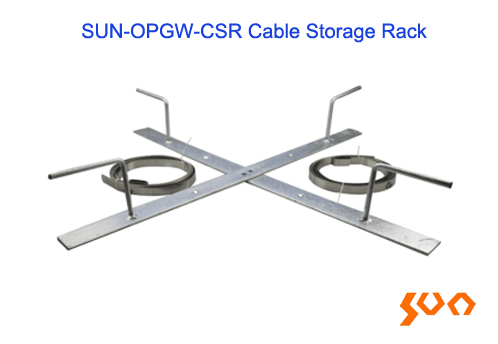

SUN-OPGW-CSR Cable Storage Rack
Model: SUN-OPGW-CSR
For OPGW Cables
Features
Hot dip galvanized surface treatment, against rust and corrosion A large space meet cable minimun radius of curvature Used on pole or tower

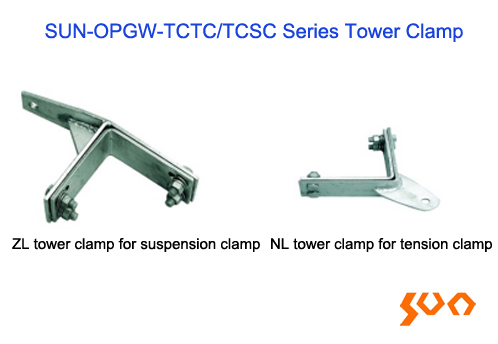

SUN-OPGW-TCTC/TCSC Series Tower Clamp
Model: SUN-OPGW-TCTC/TCSC
For OPGW Cables
Features
Used on tower Hot dip galvanized surface treatment, against rust and corrosion
SUN-OPGW-PC Single Suspension Type Pole Clamp
Model: SUN-OPGW-PC
For OPGW Cables
Features
Used on pole Hot dip galvanized surface treatment, against rust and corrosion Other types of pole clamp can be customized

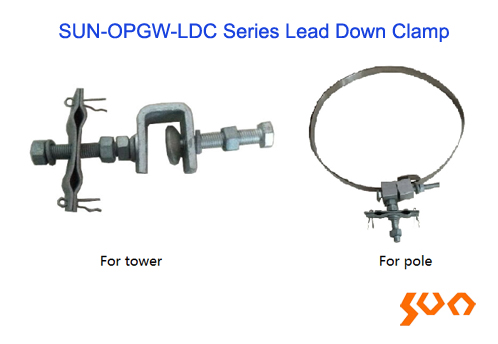

SUN-OPGW-LDC Series Lead Down Clamp
Model: SUN-OPGW-LDC
For OPGW Cables
Features
Reliable, convenient and fast installation Used on pole or tower

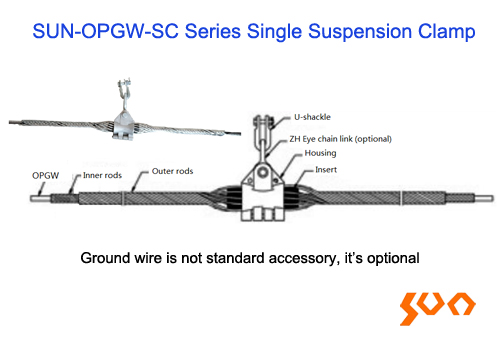

SUN-OPGW-SC Series Single Suspension Clamp
Model: SUN-OPGW-SC
For OPGW Cables
Features
Simple structure, easy installation Stress is equally distributed in large touching area Double layer of preformed armored rods Used on pole or tower
SUN-OPGW-GW Grounding Wire
Model: SUN-OPGW-GW
For OPGW Cables

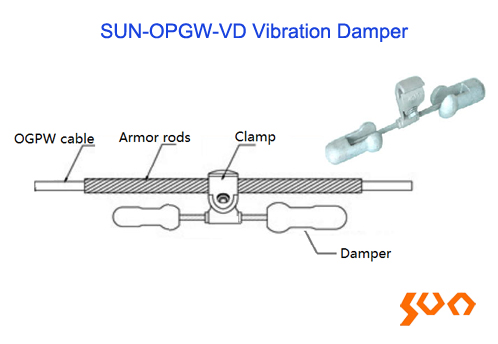

SUN-OPGW-VD Vibration Damper
Model: SUN-OPGW-VD
For OPGW Cables
SUN-OPGW-TS Series Tension Clamp
Model: SUN-OPGW-TS
For OPGW Cables
Features
Connect with the pole or tower and bear the line load Stress is equally distributed without intensive stress pivot Aluminum clad steel wires rod against corrosion and improve the mechanical properties Double layer of preformed armored rods Used on pole or tower
