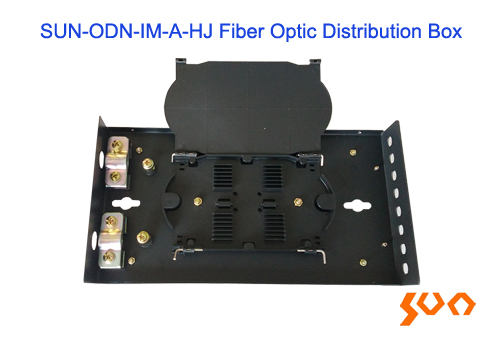

SUN-ODN-IM-A-HJ Fiber Optic Distribution Box

Model: SUN-ODN-IM-A-HJ

Indoor, Max adaptors: 8/12, SC/Duplex LC(SC type)/ST/FC

    Key Features

  • Indoor wall mount
  • SC/Duplex LC(SC type)/ST/FC adapter panel
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • 　Sun Telecom’s SUN-ODN-IM-A –HJ fiber optic distribution box is especially suitable for PON projects. It is made out of high strength engineering plastics with compacted size and light weight.
  • Specifications
    Parameters Specification
    Model SUN-ODN-IM-A-8-BW-HJ SUN-ODN-IM-A-8-GW-HJ
    Max. No. of Adapters 8 12
    Adaptor Type SC/Duplex LC(SC type)/ST/FC
    Box Material Cold-rolled steel
    Thickness of Cold-rolled steel (after spray) (mm) 0.8±0.05
    Environmental Temperature (°C) -25～55
    Dimensions (mm) 260(L) x 140(W) × 40(H) 330(L) x 183(W) × 70(H)

    Standard Package
    No. Product Unit Quantity
    1 Box set 1
    3 Ties pieces 4
    4 Protective Sleeves pieces According to core
    5 Fixing Screws set 1

  • Model Name Description
    SUN-ODN-IM-A-8SC-BW-HJ Fiber Optic Distribution Box Black; With adapter panel for max. 8 pieces of SC, adapters NOT included, 1 tray of 12 fibers/tray (12 slots/tray) included; Material: cold-rolled steel, thickness (after sprayed): 0.8±0.05mm; Dimensions (mm): 260 (L) × 140 (W) × 40 (H); Wall mounting accessories included
    SUN-ODN-IM-A-8DLC-BW-HJ Fiber Optic Distribution Box Black; With adapter panel for max. 8 pieces of duplex LC, adapters NOT included, 1 tray of 12 fibers/tray (12 slots/tray) included; Material: cold-rolled steel, thickness (after sprayed): 0.8±0.05mm; Dimensions (mm): 260 (L) × 140 (W) × 40 (H); Wall mounting accessories included
    SUN-ODN-IM-A-8ST-BW-HJ Fiber Optic Distribution Box Black; With adapter panel for max. 8 pieces of ST, adapters NOT included, 1 tray of 12 fibers/tray (12 slots/tray) included; Material: cold-rolled steel, thickness (after sprayed): 0.8±0.05mm; Dimensions (mm): 260 (L) × 140 (W) × 40 (H); Wall mounting accessories included
    SUN-ODN-IM-A-8FC-BW-HJ Fiber Optic Distribution Box Black; With adapter panel for max. 8 pieces of FC, adapters NOT included, 1 tray of 12 fibers/tray (12 slots/tray) included; Material: cold-rolled steel, thickness (after sprayed): 0.8±0.05mm; Dimensions (mm): 260 (L) × 140 (W) × 40 (H); Wall mounting accessories included
    SUN-ODN-IM-A-12SC-GW-HJ Fiber Optic Distribution Box Gray; With adapter panel for max. 12 pieces of SC, adapters NOT included; 2 trays of 12 fibers/tray (12 slots/tray) included; Material: cold-rolled steel, thickness (after sprayed): 0.8±0.05mm; Dimensions (mm): 330 (L) × 183 (W) × 70 (H); Wall mounting accessories included
    SUN-ODN-IM-A-12DLC-GW-HJ Fiber Optic Distribution Box Gray; With adapter panel for max. 12 pieces of duplex LC (SC type), adapters NOT included; 2 trays of 12 fibers/tray (12 slots/tray) included; Material: cold-rolled steel, thickness (after sprayed): 0.8±0.05mm; Dimensions (mm): 330 (L) × 183 (W) × 70 (H); Wall mounting accessories included
    SUN-ODN-IM-A-12ST-GW-HJ Fiber Optic Distribution Box Gray; With adapter panel for max. 12 pieces of ST, adapters NOT included; 2 trays of 12 fibers/tray (12 slots/tray) included; Material: cold-rolled steel, thickness (after sprayed): 0.8±0.05mm; Dimensions (mm): 330 (L) × 183 (W) × 70 (H); Wall mounting accessories included
    SUN-ODN-IM-A-12FC-GW-HJ Fiber Optic Distribution Box Gray; With adapter panel for max. 12 pieces of FC, adapters NOT included; 2 trays of 12 fibers/tray (12 slots/tray) included; Material: cold-rolled steel, thickness (after sprayed): 0.8±0.05mm; Dimensions (mm): 330 (L) × 183 (W) × 70 (H); Wall mounting accessories included

  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local Area Networks
