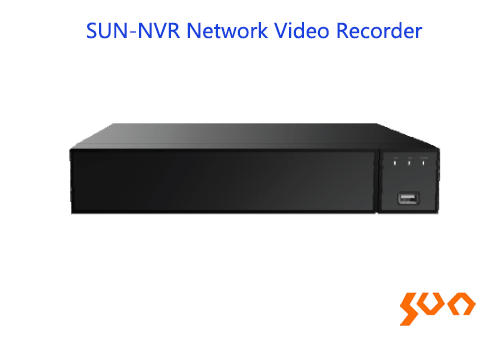

SUN-NVR Network Video Recorder

Model: SUN-NVR

Up to 36ch and 4K resolution, 1~2 SATA hard disk slots, Black

    Key Features

  • Up to 16 channel IP cameras can be connected
  • Supports decoding H.265+/H.265/H.264+/H.264 video formats
  • Up to 5MP high-definition live view, storage and playback
  • Up to 4ch @ 1080p decoding capacity
  • Up to 80 Mbps high incoming bandwidth ensures IP cameras can be connected
  • 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
  • 1 HDD for continuous video recording
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-NVR network video recorder (NVR) is a specialized computer system that includes a software program that records video in a digital format to a disk drive, USB flash drive, SD memory card or other mass storage device. An NVR is typically deployed in an IP video surveillance system.
  • Specifications
    Parameters Specification
    System
    Main Processor ARM Cortex A7 processor
    Operating System Embedded LINUX
    Video
    Input 16CH (2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
    Output 1 VGA, 1 HD
    Audio
    Output 1 Port 3.5mm(Linear, 1kΩ)
    Audio Bit Rate  64kbps
    Audio Compression Standard G711u, G711a, ADPCM_DVI4
    Alarm
    Sensor Input No
    Output No
    Motion Detection 16 channel, MD zones: 396 (22 × 18)
    Trigger Events Recording, Email, FTP, Snapshot, Buzzer and Screen Tips
    Display
    HD Output Resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
    VGA Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
    Display Split 16CHxD1/9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP
    Digital Zoom Yes
    OSD Camera Title, Time, Recording, Motion Detection, Event Alarm
    Recording
    Video Compression H265/H264/H265+/H264+
    Resolution 5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),
    960P(1280x960),720P(1280×720),D1 (720×576/720×480)
    Record Rate PAL: 5MP@16×25fp, 4MP@16x25fp, 3MP@16×25fp, 1080P@16×25fp, 960P@16×25fp, 720P@16×25fp, D1@16×25fp
    NTSC: 5MP@16×30fp, 4MP@16×30fp, 3MP@16×30fp, 1080P@16×30fp, 960P@16×30fp, 720P@16×30fp, D1@16×30fp
    Record Mode Manual\Timer\Motion Detection\Smart Alarm
    Playback & Backup
    Local Sync Playback 1CH 5MP@30fps, 1CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@20fps, 4CH 960P@30fps, 4CH 720P@30fps
    Decode Capability 4CH 1080P@20fps
    Remote Sync Playback Yes
    Search Mode ALL, Channel, Manual, Time, Date, Motion Detection, Event Alarm
    Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom
    Backup Mode USB Device/Network
    Network
    Interface 1 RJ45 10M/100M Adaptive Ethernet Interface
    Incoming Bandwidth 80MB
    Network Functions TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p
    Onvif Version Support Onvif 2.8
    Web Browser IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
    CMS Software Support Windows 7/ Windows 8/Windows 10/MAC OS
    Cloud Support(P2P) Yes
    Smart Phone iPhone, iPad, Android, Android Pad
    Storage
    Interface Type 1 SATA Hard Disk Interface (2.5"/3.5" SATA)
    Capacity Up to 8TB capacity
    General
    USB Interface 2 USB 2.0 Interfaces
    Working Temperature -10~55℃/10~90%
    Power Source DC12V, 2A
    Dimension 260(W) x43(H) x215(D) mm
    Weight 2.0kg (without HDD)


    Standard Accessories
    No. Product Unit Quantity
    1 Network Video Recorder set 1
    2 Power Line piece 1
    3 Mouse piece 1

  • Ordering Information
    Model Name Description
    SUN-NVR-16-5M-1H Network Video Recorder 16ch; Resolution: 5M(1ch) / 1080P(4ch); 1x SATA hard disk slot (up to 8TB), 1x RJ45, 2x USB2.0; Dimensions (mm): 260(L) x 215(W) x 43(H); Hard disk not included
    SUN-NVR-25-4K-2H Network Video Recorder 25ch; Resolution: 4K(1ch) /(4ch); 2*SATA hard disk slots (up to 16TB), 1*RJ45 port, 1*USB2.0 port, 1*USB3.0 port; Dimensions (mm): 310 (L) x 295 (W) x 46 (H); Hard disk NOT included
    SUN-NVR-36-4K-2H Network Video Recorder 36ch; Resolution: 4K(1ch) /(4ch); 2*SATA hard disk slots (up to 16TB), 1*RJ45 port, 1*USB2.0 port, 1*USB3.0 port; Dimensions (mm): 310 (L) x 295 (W) x 46 (H); Hard disk NOT included
