Low insertion loss, high return loss
Parameters | Specification | |||
Fiber Type | Single mode | Multimode | ||
G652D (G657A/G657B optional) | OM3/OM4 (OM1/OM2 optional) | |||
Insertion Loss (dB) | ≤ 0.7 (0.35 optional) | |||
Return Loss (dB) | UPC | ≥ 45 | ≥ 20 | |
APC | ≥ 55 | / | ||
Durability (dB) 500 mating times | △IL ≤ 0.2, △RL ≤ 5 | |||

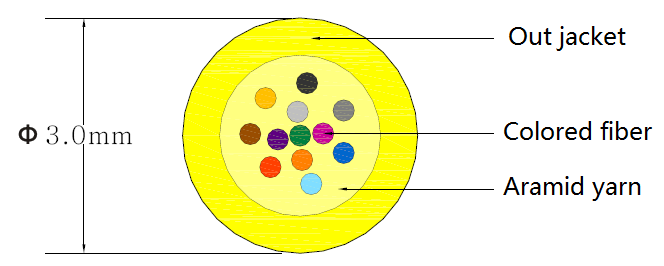

Cable | Type | Round cable (flat ribbon cable optional) | ||
Jacket Material | PVC (LSZH optional) | |||
Outer Diameter (mm) | 3.0 | |||
Operating Temperature (°C) | -20 ~ +75 | |||
Storage Temperature (°C) | -20 ~ +75 |

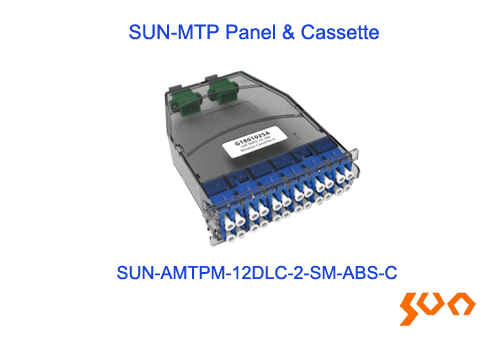

SUN-MTP Patch Panel & Cassette
Model: SUN-MTP
19" Standard rack structure
Features
SUN-AD Fiber Optic Adaptor
Model: SUN-AD
The adapters including FC, SC, ST, LC, MTRJ, MPO (PC ⁄ APC, SM ⁄ MM)
Features
SUN-1000 Media Converter
Model: SUN-1000
10/100/1000Mbps, 1xRJ45, 1xOptical port
Features
SUN-OT5000 OTDR
Model: SUN-OT5000
Can test SM and MM fibers, optional light source, VFL and power meter
Features
SUN-PM100L Fiber Optic Polishing Machine
Model: SUN-PM100L
Suitable for mass production
Features
