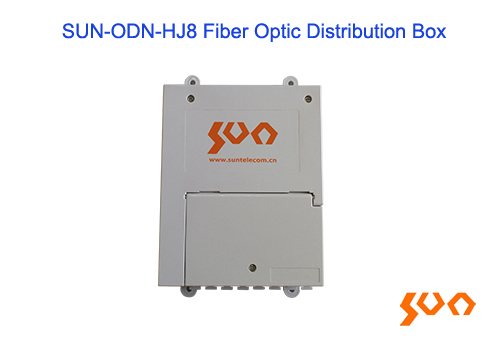

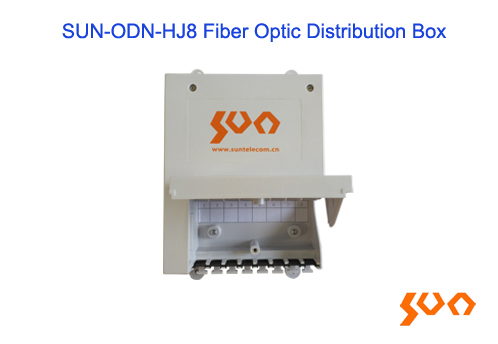

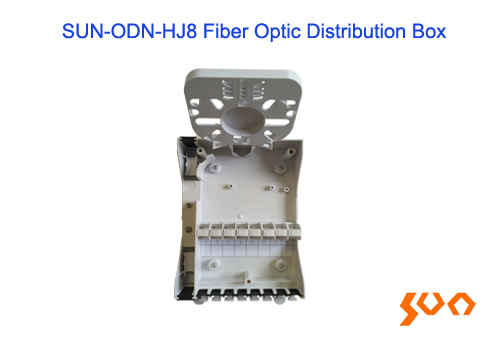

Indoor, 1x1:4 or 1x1:8 splitter, Max adaptors: 8, SC, DLC (SC Type)
| Parameters | Specification | |
| Max. No. of Adapters | 8 | |
| Adaptor Type | SC, DLC (SC Type) | |
| Splitter Type | Blockless PLC splitter | |
| No. of Inlet and Outlet Ports | 1 in 8 out | |
| Max. Cable Diameter (mm) | Input Port | 8 |
| Output Port | 3.0mm round cable or 3×2.0mm drop cable | |
| Material | ABS (Flame-retardant ABS or ABS+PC is optional) | |
| Operating Temp (°C) | -25 ~ +55 | |
| Dimensions (mm) | 190 (L) × 126 (W) × 46 (H) | |
| Weight (g) | 325 | |
| No. | Name | Unit | Quantity |
| 1 | Fiber Optic Distribution Box | set | 1 |
| 2 | Protective Sleeves | pieces | 8 |
| 3 | Ties | pieces | 3 |
| 4 | Wall Mount Screw Set | set | 1 |
| Model | Name | Description |
| SUN-ODN-HJ8-W | Fiber Optic Distribution Box | Suitable for 1 piece of 1x8 (or 1 piece of 1x4) PLC splitter; With the adaptor panel for max. 8 pieces of SC or duplex LC (SC type); Adaptors and PLC splitters NOT included, wall mounting accessories included |
SUN-PLC Fiber Optic Splitter
Model: SUN-PLC
Splitting ratio: 1x2, 1(2)x4, 1(2)x8, 1(2)x16, 1(2)x32, 1(2)x64
Features
Low insertion loss Low PDL High reliability and stability Good channel uniformity
Fiber Optic Patchcord
Model:
Different interface optional, Easy operation, Low insertion loss
Features
Low insertion loss High return loss Good repeatability
SUN-AD Fiber Optic Adaptor
Model: SUN-AD
The adapters including FC, SC, ST, LC, MTRJ, MPO (PC ⁄ APC, SM ⁄ MM)
Features
Different interfaces Easy operation Low insertion loss
SUN-OC-SLT-SP GYTS Cable
Model: SUN-OC-SLT-SP
GYTS, Loose Tube Light-armored (Steel Tape) Cable, 2~144cores
Features
Good mechanical and temperature performance High hydrolysis resistance and high strength loose tube Good crush resistance and flexibility High tensile strength ensured by steel wire Good moisture-proof ensured by PSP Gopher protected cable

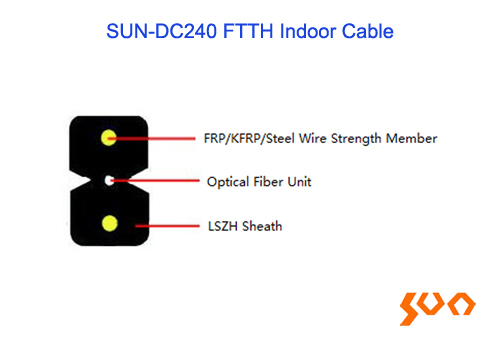

SUN-DC240 FTTH Indoor Cable
Model: SUN-DC240
Drop Cable, 1~4 cores, G657, flame retardent, for FTTH application
Features
Good crush resistance ensured by parallel strength member Low smoke, zero halogen sheath Simple Structure, light weight and high practicability
SUN-OT5000 OTDR
Model: SUN-OT5000
Can test SM and MM fibers, optional light source, VFL and power meter
Features
Quick startup FTTX in-service testing (Up to1:64 splitter) Built-in PON power meter for Triple-play testing (Only for SUN-OT5000-PON) High configuration series include optical light source, optical power meter, visual fault locator (VFL) and Optical Connector Inspector (MCI) modules USB data interface (PC software for batch data processing and report output) Dustproof and shockproof (2-meter drop test) Light weight, small size, rugged design and simple operation Visual link image software (Optional)
SUN-1000 Media Converter
Model: SUN-1000
10/100/1000Mbps, 1xRJ45, 1xOptical port
Features
1000Mbps transmission rate Compliance with IEEE standards MTBF of more than 50000 hours Full & half duplex operation and auto-negotiation Electric interface self-adapting parallel/crossover connections Longest 1552 byte data packet transmission QoS ensuring VoIP data packet transmission STP Spanning Tree forming a redundant network Low power consumption and low heat for longtime stable operation Single/Multi mode and Single/Dual fiber transmission modes Network Management Function (optional)
