SUN-OC-FIG8SF-AP GYFTC8A Cable

Model: SUN-OC-FIG8SF-AP

GYFTC8A, 2~144 cores

    Key Features

  • Good mechanical and temperature performance
  • High hydrolysis resistance and high tensile strength loose tube
  • High tensile strength of stranded wires meeting the requirement of self-supporting
  • Good moisture-proof ensured by aluminum tape
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video

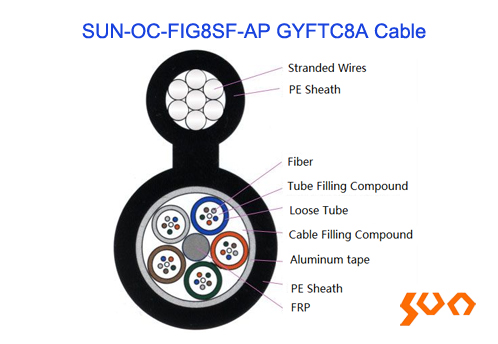

  • 　Sun Telecom’s SUN-OC-FIG8SF-AP stranded loose tube non-metallic strength member light-armored (Aluminum Tape) figure 8 cable (GYFTC8A) construction is that 250um fibers are positioned in a loose tube which is made of high modulus plastic and filled with a water-resistant filling compound; A FRP, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member; Tubes are stranded around the strength member into a compact and circular cable core; The armor layer (Aluminum Tape) is longitudinally applied over the cable core which is filled with the filling compound to protect it from water ingress; This part of cable accompanied with the stranded wires are completed with a polyethylene (PE) sheath to be figure 8 structure.

  • Standards
    Sun Telecom’s SUN-OC-FIG8SF-AP stranded loose tube non-metallic strength member light-armored (Aluminum Tape) figure 8 cable (GYFTC8A) complies with standard YD/T1155 and IEC60794-1.

    Fiber Optic Characteristics
    Parameters Specification
    Fiber Type G.652D (9/125μm) G651A1
    (50/125μm)    		 G651A1b
    (62.5/125μm)
    Attenuation (dB/km) @850nm   ≤2.3 ≤2.7
    @1300nm   ≤0.6 ≤0.6
    @1310nm ≤0.36
    @1550nm ≤0.22
    Bandwidth (MHz·km) @850nm   ≥500 ≥200
    @1300nm   ≥500 ≥500
    Numerical Aperture   0.200±0.015NA 0.275±0.015NA
    Cable Cut-off Wavelength (nm) ≤1260

    Cable Specifications
    Parameters Specification
    Fiber Count 2~30 32~36 38~60 62~72 74~96 98~120 122~144
    Cable Diameter (mm) ±0.3 8.8 x 15.8 9.1 x 16.1 9.6 x 16.6 10.2 x 17.2 11.7 x 18.7 12 x
    20    		 14.2 x
    21.2
    Cable Weight (kg/km) 145 158 158 186 205 270 270
    Messenger Wire 7*1.0 steel wire
    Loose Tube Material PBT
    Loose Tube Filling Compound Jelly
    Cable Filling Compound Jelly
    Central Strength Member FRP
    Armor Layer Aluminum Tape
    Tensile Strength (N) Short Term 6000
    Long Term 3000
    Crush Resistance (N) Short Term 3000
    Long Term 1000
    Bending Radius (mm) Dynamic 20D
    Static 10D
    Attenuation (dB/km) MM Fiber @850nm ≤3.0 (50/125μm)
    ≤3.3 (62.5/125μm)
    MM Fiber @1300nm ≤1.0
    SM Fiber @1310nm ≤0.36
    SM Fiber @1550nm ≤0.22
    Operating Temperature (°C) -40 ~ +70
    Storage Temperature (°C) -40 ~ +70

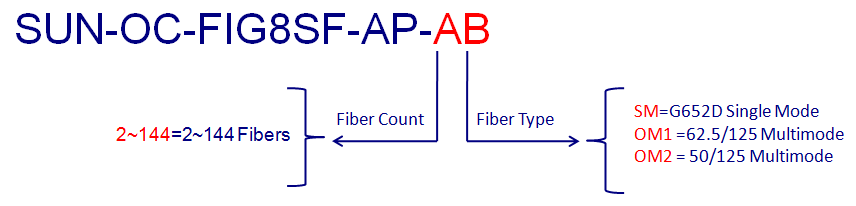

  • Example: SUN-OC-FIG8SF-AP-24SM-I
    GYFTC8A outdoor cable, FIG8, stranded loose tube, FRP central strength member, single APL armor and single PE jacket; 24 fibers, G652D

  • ● Core network
    ● Metropolitan area network
    ● Access network
