Dome type, IP67, POE
| Parameters | Specification |
| Camera | |
| Image Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS Sensor |
| Resolution | 2MP 1080P |
| Effective Pixels | 1945(H)*1097(V) |
| Compression | H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec |
| Minimum Illumination | 0.005Lux |
| S/N Ratio | ≥52dB |
| Scanning System | Progressive |
| Video Output | Network |
| Reset Button | Optional |
| Lens | |
| Focus Length | 2.8~12mm |
| Focus Control | Manual |
| Lens Type | Manual |
| Pixels | 2MP |
| Night Vision | |
| Infrared LED | 14u x 24pcs |
| Infrared Distance | 30M |
| IR Status | Auto Control |
| IR Power On | Auto Control |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP |
| ONVIF | Support ONVIF 2.4(Profile S/T) |
| P2P | YES, Support QR Code |
| POE | Support IEEE 802.3af |
| Video Delay | 0.3S (Within the Lan) |
| Main Stream 1 | 2048*1536@15fps |
| Main Stream 2 | 1920*1080@30fps |
| Main Stream 3 | 1280*720@30fps |
| Sub Stream 1 | 720*480@15fps 720*480@30fps |
| Tri Stream | 352*288@15fps 352*288@30fps |
| IE Brower | IE8-11, Google Chrome, Firefox , Mac Safari |
| Smart Phone | iPhone, iPad, Android, Android Pad |
| Camera Features | |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering, HLC |
| Full Starlight | Starlight |
| Corridor Pattern | Support |
| Defog Mode | Support |
| ROI | Support |
| BLC | Support |
| WDR | WDR: 96dB |
| Motion Detection | Support |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR/CMS/Web |
| Language | Chinese Simplified, English |
| General | |
| Housing | IP67 |
| Anti-cut Bracket | No |
| IR Cut Filter | Yes |
| Operation Temperature | -20℃ ~ +60℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 950mA |
| Dimension | 119(D) x 98(H) mm |
| Weight | 800g |
| No. | Product | Unit | Quantity |
| 1 | IP Camera | set | 1 |
| 2 | Install screw | set | 1 |
| Model | Name | Description |
| SUN-IPC-D-2.8-12-30M-HL200-POE | IP Camera | IP Camera; Dome type; 2MP 1080P; 1/2.8" SONY CMOS Sensor, WDR, Starlight, With Internal POE; IR range: 30m, Board Lens:2.8~12mm; IP67; Dimensions (mm): 119(D) x 98(H) |
| SUN-IPC-D-3.6-20M-HL200-POE | IP Camera | Dome type; 2MP; 1/2.8" SONY CMOS Sensor, WDR, starlight, with POE function; IR range: 20m, board lens: 3.6mm; IP67; Dimensions (mm): 93 (D) x 74 (H) |
SUN-IPC-B-3.6-25M-H800-POE IP Camera
Model: SUN-IPC-B-3.6-25M-H800-POE
Bullet type, IP67, POE
Features
Up to 8MP resolution Support ROI function Standard video compression with high compression ratio Progressive scan CMOS, capture motion video without incised margin High-performance and long service life Infrared LED, Approx. 25 meters IR range IR cut filter with auto switch POE (Power over Ethernet) 3D NR WDR Ingress protection level: IP67
SUN-Cat6 UTP Outdoor Network Cable
Model: SUN-Cat6
Cat6, UTP, Outdoor, PE
Features
Flexible copper conductor and PE jacket is easy to install Four twisted pairs reduce noise for a clean uninterrupted connection Bandwidth tested up to 550MHZ
SUN-Cat6 UTP Indoor Network Cable
Model: SUN-Cat6
CAT6, UTP, Indoor, PVC
Features
Flexible copper conductor and PVC jacket is easy to install Four twisted pairs reduce noise for a clean uninterrupted connection Bandwidth tested up to 550MHZ

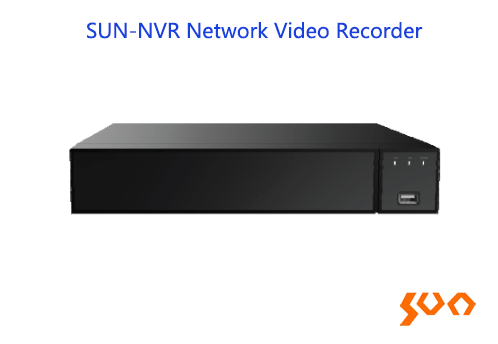

SUN-NVR Network Video Recorder
Model: SUN-NVR
Up to 36ch and 4K resolution, 1~2 SATA hard disk slots, Black
Features
Up to 16 channel IP cameras can be connected Supports decoding H.265+/H.265/H.264+/H.264 video formats Up to 5MP high-definition live view, storage and playback Up to 4ch @ 1080p decoding capacity Up to 80 Mbps high incoming bandwidth ensures IP cameras can be connected 1 HDMI and 1 VGA interfaces: both interfaces support independent video output 1 HDD for continuous video recording
