Cat6, UTP, Outdoor, PE
| Parameters | Specification | ||
| Type | CAT6 UTP | ||
| Conductor | 23 AWG | ||
| Conductor | Material | Bare copper | |
| O.D (mm) | 1/0.57± 0.0057 | ||
| Insulation | Material | HDPE | |
| Average Thickness (mm) | 0.22 | ||
| Min. Thickness (mm) | 0.16 | ||
| O.D (mm) | 1.02 ± 0.05 | ||
| Pair | 1.Blue/ blue &white 2.Orange/ orange &white 3.Green/ green &white 4.Brown/ brown &white |
||
| Cross | 4.8*4.8*0.45 | ||
| Inner Jacket | Average Thickness (mm) | 0.6 | |
| Min. Thickness (mm) | 0.41 | ||
| Outer Diameter (mm) | 6.1 ± 0.3 | ||
| Material | PVC | ||
| Color | Gray | ||
| Outer Jacket | Average Thickness (mm) | 0.6± 0.05 | |
| Min. Thickness (mm) | 0.41 | ||
| Outer Diameter (mm) | 7.3±0.3 | ||
| Material | PE | ||
| Color | Black (other color optional) | ||
| Packing Length (M) | 305 | ||
| Frequency (MHz) | Max Attenuation (dB/100M) | RL (dB/100M) | Characteristic Impedance |
| 4 | 3.7 | 23 | 100±15 |
| 10 | 5.9 | 25 | |
| 16 | 7.5 | 25 | |
| 20 | 8.4 | 25 | |
| 31.25 |
10.6 | 23.6 | |
| 62.5 |
15.4 | 21.5 | |
| 100 |
19.8 | 20.1 | |
| 200 | 29 | 18 | |
| 250 | 32.8 | 17.3 |
| Model | Name | Description |
| SUN-CAT6-305M-UTP-23-BK-PE | Network Cable | Cat6 UTP outdoor network cable, 23AWG 1/0.57mm, bare copper, color: black, double jacket (inner PVC, outer PE), 305M/reel |

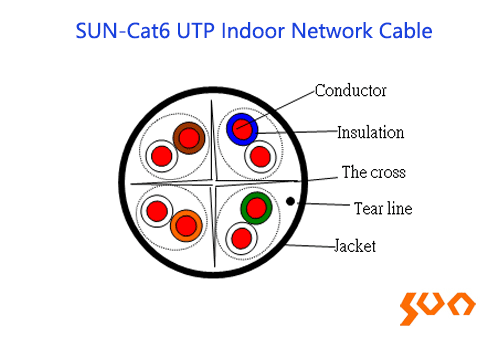

SUN-Cat6 UTP Indoor Network Cable
Model: SUN-Cat6
CAT6, UTP, Indoor, PVC
Features
Flexible copper conductor and PVC jacket is easy to install Four twisted pairs reduce noise for a clean uninterrupted connection Bandwidth tested up to 550MHZ

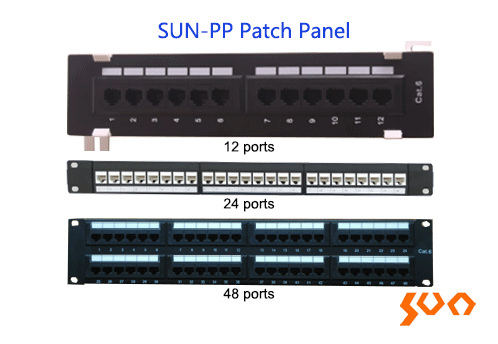

SUN-PP12/24/48 Network Patch Panel
Model: SUN-PP12/24/48
Max 48 ports, 19" standard rack size
Features
Removable rear cable manager Modular design, easy to install and manage

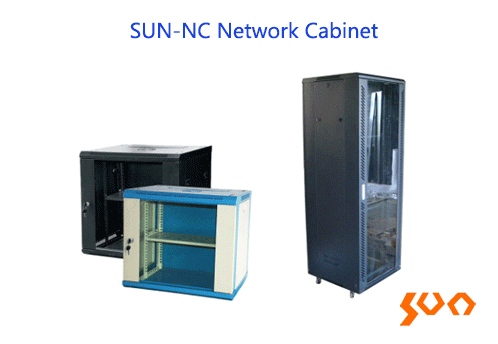

SUN-NC Network Cabinet
Model: SUN-NC
4~47U, Cold rolled steel, Black
Features
Optional doors, glass, grid or steel plate door Un-assembled, easy for trasnportaion More space for cable management High loading capacity
Fiber Optic Patchcord
Model:
Different interface optional, Easy operation, Low insertion loss
Features
Low insertion loss High return loss Good repeatability
