For ADSS Cables
| Item | Parameter |
| Material | Flat steel (80mm width × 6mm thickness) |
| Surface | Hot dip galvanizing |
| Thickness of Galvanizing Coating (um) | ≥85 |
| Suitable Tower Main Material (angle steel) Width (mm) | 125, 145 or as request |

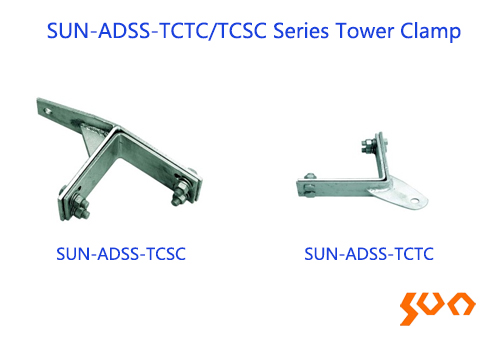

| SUN-ADSS-TCTC-T125 | Used for tension clamp, suitable for tower main material (angle steel) width: 101~125mm; Material: hot dip galvanized flat steel, dimensions (mm): 80 (W) × 6 (T) |
| SUN-ADSS-TCTC-T145 | Used for tension clamp, suitable for tower main material (angle steel) width: 126~145mm; Material: hot dip galvanized flat steel, dimensions (mm): 80 (W) × 6 (T) |
| SUN-ADSS-TCSC-T125 | Used for suspension clamp, suitable for tower material (angle steel) width: 101~125mm; Material: hot dip galvanized flat steel, dimensions (mm): 80 (W) × 6 (T) |
| SUN-ADSS-TCSC-T145 | Used for suspension clamp, suitable for tower material (angle steel) width: 126~145mm; Material: hot dip galvanized flat steel, dimensions (mm): 80 (W) × 6 (T) |
SUN-ADSS Fiber Optic Cable
Model: SUN-ADSS
ADSS, Double jacket, 2~144F
Features
Can be installed without shutting off the power Large span lengths Good performance of tensile strength Light weight and small diameter
SUN-FOSC-OPAD OPGW&ADSS Fiber Optic Splice Closure
Model: SUN-FOSC-OPAD
Max 144 fibers, 48 fibers ⁄ tray; 4 ports; Aluminum alloy
Features
Prompt, easy and convenient installation Good sealing performance Whole body of the closure is made of high strength AL-alloy High mechanical strength Can be reused, easy to rejoin and expand capacity Used on pole or tower
SUN-ADSS-TC Series Tension Clamp
Model: SUN-ADSS-TC
For ADSS Cables
Features
Connect with the pole or tower and bear the line load Stress is equally distributed without intensive stress pivot Aluminum clad steel wires rod against corrosion and improve the mechanical properties Used on pole or tower
SUN-ADSS-SVD Spiral Vibration Damper
Model: SUN-ADSS-SVD
For ADSS Cables
Features
High strength, aging resistance, high elasticity Effectively reduces levels of Aeolian vibration on cables
SUN-ADSS-DSC Series Double Suspension Clamp
Model: SUN-ADSS-DSC
For ADSS Cables
Features
Mainly used on long span rivers and valleys with large drop in level Stress is equally distributed in large touching area Aluminum alloy rods against corrosion and improve the mechanical properties Used on pole or tower
SUN-ADSS-LDC Series Lead Down Clamp
Model: SUN-ADSS-LDC
For ADSS Cables
Features
Reliable, convenient and fast installation Used on pole or tower Electro-insulating rubber type
SUN-ADSS-PC Single Suspension Type Pole Clamp
Model: SUN-ADSS-PC
For ADSS Cables
Features
Used on pole Hot dip galvanized surface treatment, agaisnt rust and corrosion
SUN-ADSS-CSR Cable Storage Rack
Model: SUN-ADSS-CSR
For ADSS Cables
Features
Hot dip galvanized surface treatment, against rust and corrosion A large space meet cable minimun radius of curvature Used on pole or tower
SUN-ADSS-JHSC J Hook Suspension Clamp
Model: SUN-ADSS-JHSC
For ADSS Cables
Features
Easy, quick and safe installation Galvanized steel material, against rust and corrosion
SUN-ADSS-WTTC Wedge Type Tension Clamp
Model: SUN-ADSS-WTTC
For ADSS Cables
Features
Easy, quick and safe installation UV protected plastic parts Stainless steel metal parts
SUN-ADSS-SC Series Suspension Clamp
Model: SUN-ADSS-SC
For ADSS Cables
Features
Simple structure, easy installation Stress is equally distributed in large touching area Preformed armor rods are optional for short span (100m) Used on pole or tower
SUN-ADSS-CC Corona Coil
Model: SUN-ADSS-CC
For ADSS Cables
Features
Made of aluminum alloy Intended to reduce electrical stress Not interfere with the performance of tension clamp or suspension clamp
