SUN-ADSS-TC Series Tension Clamp

Model: SUN-ADSS-TC

For ADSS Cables

    Key Features

  • Connect with the pole or tower and bear the line load
  • Stress is equally distributed without intensive stress pivot
  • Aluminum clad steel wires rod against corrosion and improve the mechanical properties
  • Used on pole or tower
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • 　Sun Telecom's SUN-ADSS-TC tension clamp bears the tension strength, connecting ADSS cable to pole or tower.
  • Specifications
    Item Parameter
    Material Shackle, Thimble Clevis, Extension Ring Galvanized steel
    Preformed Armored Rods Aluminum clad steel wires (surface glue dipping and sand capping). (Galvanized steel wires are optional.)
    Strength Class (KN) 10 15 25 35 45
    Max. Suitable Span (m) 100 200 300 500 600
    Suitable Cable Diameter (mm) 9.8~10.8
    10.9~11.8
    11.9~12.8    		 12.9~13.8 11.2~12.2
    12.3~13.3    		 11.2~12.2
    13~14    		 13~14
    Connector Part Model U-3, TC-3 U-3, TC-3, PH-3 U-7, TC-7, PH-7
    Layer of Preformed Armor Rods
    (Single Layer/ Double Layer)    		 Single layer Double layer


  • SUN-ADSS-TC-S1-R10-D10.8 Tension clamp, suitable for max 100m span and cable diameter: 9.8~10.8mm ADSS cable; Strength class: 10KN; Single layer of preformed armor rods
    SUN-ADSS-TC-S1-R10-D11.8 Tension clamp, suitable for max 100m span and cable diameter: 10.9~11.8mm ADSS cable; Strength class: 10KN; Single layer of preformed armor rods
    SUN-ADSS-TC-S1-R10-D12.8 Tension clamp, suitable for max 100m span and cable diameter: 11.9~12.8mm ADSS cable; Strength class: 10KN; Single layer of preformed armor rods
    SUN-ADSS-TC-S2-R15-D13.8 Tension clamp, suitable for max 200m span and cable diameter: 12.9~13.8mm ADSS cable; Strength class: 15KN; Single layer of preformed armor rods
    SUN-ADSS-TC-S3-R25-D12.2 Tension clamp, suitable for max 300m span and cable diameter: 11.2~12.2mm ADSS cable; Strength class: 25KN; Double layer of preformed armor rods
    SUN-ADSS-TC-S3-R25-D13.3 Tension clamp, suitable for max 300m span and cable diameter: 12.3~13.3mm ADSS cable; Strength class: 25KN; Double layer of preformed armor rods
    SUN-ADSS-TC-S5-R35-D12.2 Tension clamp, suitable for max 500m span and cable diameter: 11.2~12.2mm ADSS cable; Strength class: 35KN; Double layer of preformed armor rods
    SUN-ADSS-TC-S5-R35-D14 Tension clamp, suitable for max 500m span and cable diameter: 13~14mm ADSS cable; Strength class: 35KN; Double layer of preformed armor rods
    SUN-ADSS-TC-S6-R45-D14 Tension clamp, suitable for max 600m span and cable diameter: 13~14mm ADSS cable; Strength class: 45KN; Double layer of preformed armor rods

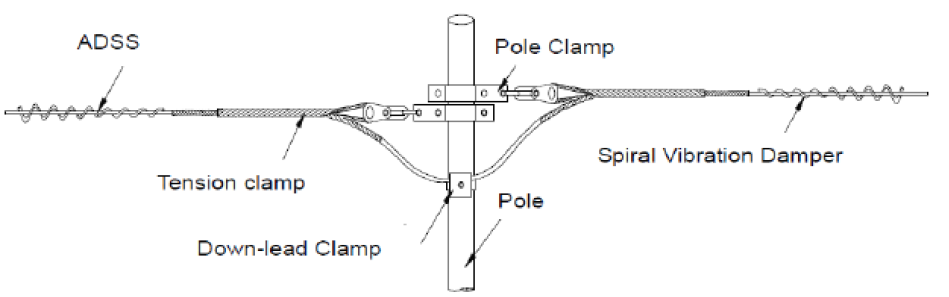

  • Pole mounted

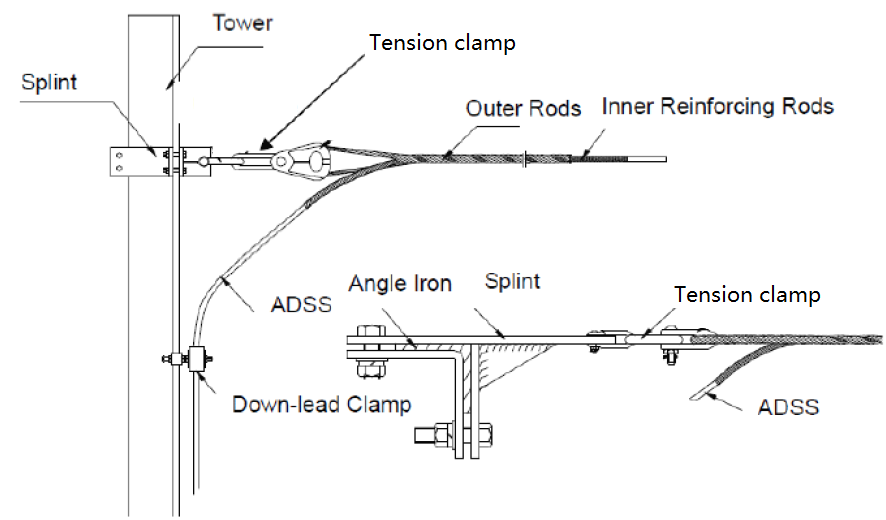

    Tower mounted
