SUN-ADSS-SC Series Suspension Clamp

Model: SUN-ADSS-SC

For ADSS Cables

    Key Features

  • Simple structure, easy installation
  • Stress is equally distributed in large touching area
  • Preformed armor rods are optional for short span (100m)
  • Used on pole or tower
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • 　Sun Telecom's SUN-ADSS-SC suspension clamp is used to suspend ADSS cable.
  • Specifications
    Item Parameter
    Material Shackle Galvanized steel
    Housing Aluminum
    Insert Rubber
    Outer/ Inner Armor Rods Aluminum alloy
    Max Strength Class (KN) 30 30 50
    Max. Span (m) 100 200 300
    Suitable Cable Diameter (mm) 9.8~10.8
    10.9~12.1
    12.2~13.1    		 11.2~12.2
    12.3~13.3    		 13~14
    Connector Part Model U-3, TK-3 U-7, TK-7B, ZH-7
    Layer of Armor Rods
    (Single Layer/ Double Layer)    		 No armor rods for span ≤100m (Default), but it’s optional Double layer


  • Model Description
    SUN-ADSS-SC-S1-R30-D10.8-NR Suspension clamp, suitable for max 100m span and cable diameter: 9.8~10.8mm ADSS cable; Strength class: 30KN; Without preformed armor rods
    SUN-ADSS-SC-S1-R30-D12.1-NR Suspension clamp, suitable for max 100m span and cable diameter: 10.9~12.1mm ADSS cable; Strength class: 30KN; Without preformed armor rods
    SUN-ADSS-SC-S1-R30-D13.1-NR Suspension clamp, suitable for max 100m span and cable diameter: 12.2~13.1mm ADSS cable; Strength class: 30KN; Without preformed armor rods

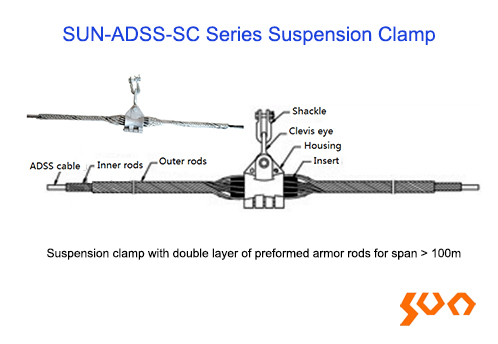

    SUN-ADSS-SC-S2-R30-D12.2 Suspension clamp, suitable for max 200m span and cable diameter: 11.2~12.2mm ADSS cable; Strength class: 30KN; Double layer of preformed armor rods
    SUN-ADSS-SC-S2-R30-D13.3 Suspension clamp, suitable for max 200m span and cable diameter: 12.3~13.3mm ADSS cable; Strength class: 30KN; Double layer of preformed armor rods
    SUN-ADSS-SC-S3-R50-D14 Suspension clamp, suitable for max 300m span and cable diameter: 13~14mm ADSS cable; Strength class: 50KN; Double layer of preformed armor rods


  • Pole mounted (suspension clamp without preformed armor rods)

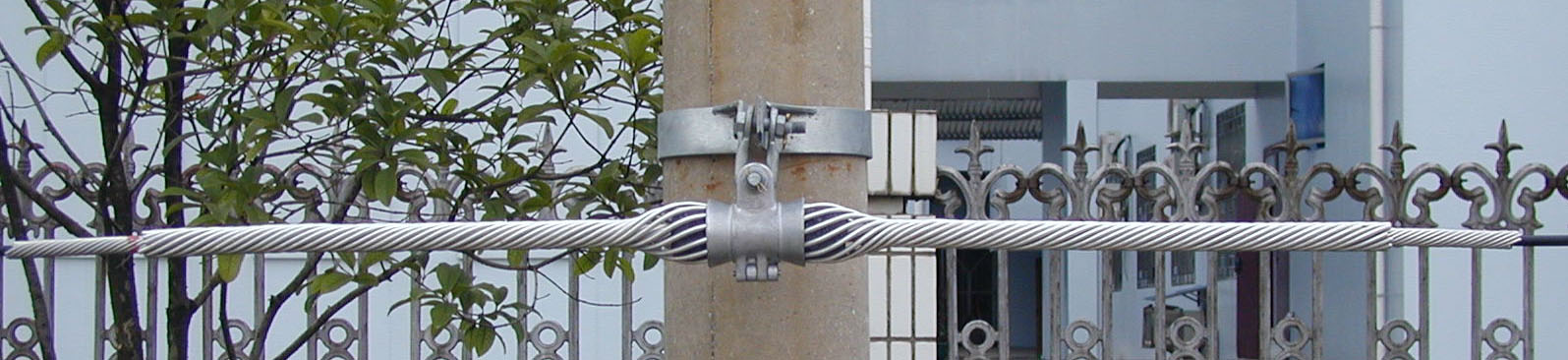

    Pole mounted (suspension clamp with preformed armor rods)

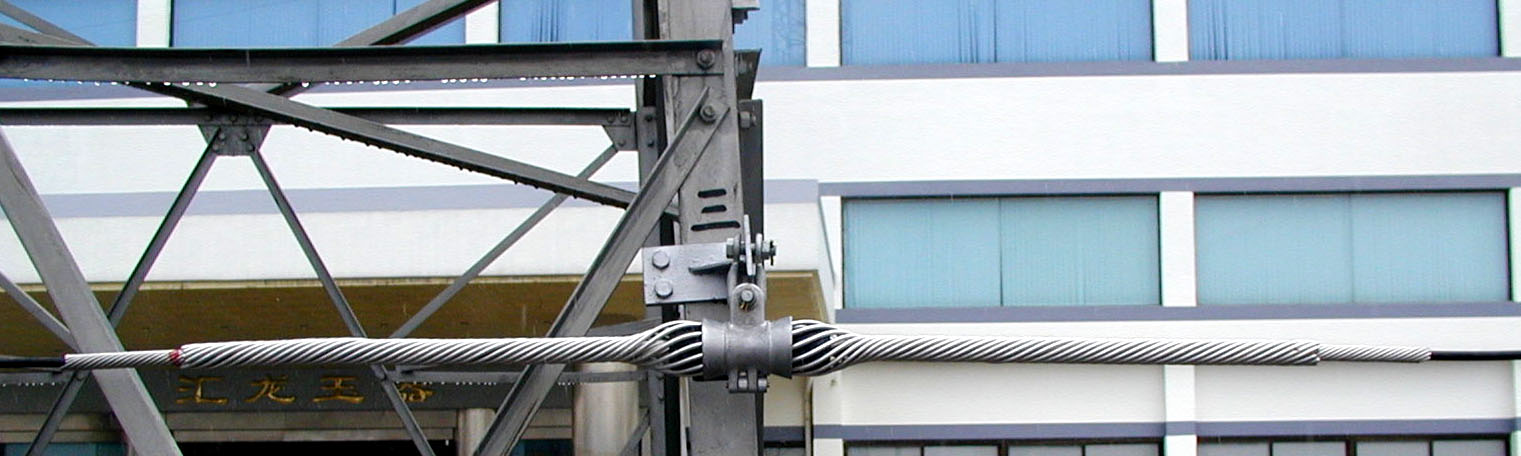

    Tower mounted (suspension clamp with preformed armor rods)
