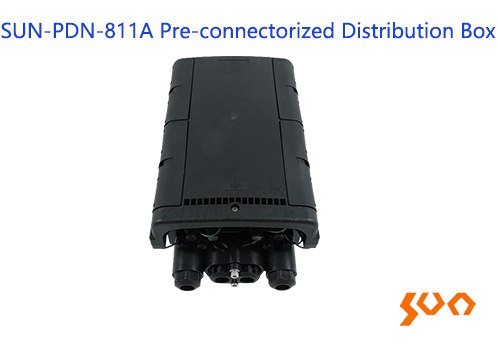

SUN-PDN-811A Pre-connectorized Distribution Box

Model: SUN-PDN-811A

IP68; 1 oval cable entry, 2 branch cable entries, and 8 pre-connectorized adapters

    Key Features

  • Advanced structure design, easy operation and reasonable routing
  • Material PP+GF
  • Moisture-proof, waterproof, dust-proof, anti-aging
  • IP68
  • 1 oval cable entry, 2 branch cable entries, and 8 pre-connectorized adapters
  • Wall/ Aerial/ Pole/ Pedestal mounted
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom’s SUN-PDN-811A fiber optic pre-connectorized distribution box is used as a distribution point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and it provides solid protection and management for the FTTx network building.
    　
  • Parameters
    Specification
    Material
    Box
    PP+GF
    Splice Tray
    Type
    24 cores/tray
    Splitter Type
    1pc of 1x8 blockless type PLC splitter/tray
    Number of Trays
    4
    Splicing Capacity (cores)
    96 (without splitter)
    Pre-connectorized Adapter
    Number
    8
    Adapter Type
    K1
    Input Mid-span Port
    Qty (pc)
    1
    Cable Diameter (mm)
    8~18
    Branch Ports
    Qty (pc)
    2
    Cable Diameter (mm)
    8~18
    IP
    IP68
    Color
    Black
    Temperature Range (°C)
    -40 ~ +85
    Dimensions (mm)
    370(L) x 210(W) x 124(H)
    Installation Method
    Wall/ pole/ aerial/ Pedestal
    Gross Weight (KG)
    3.3

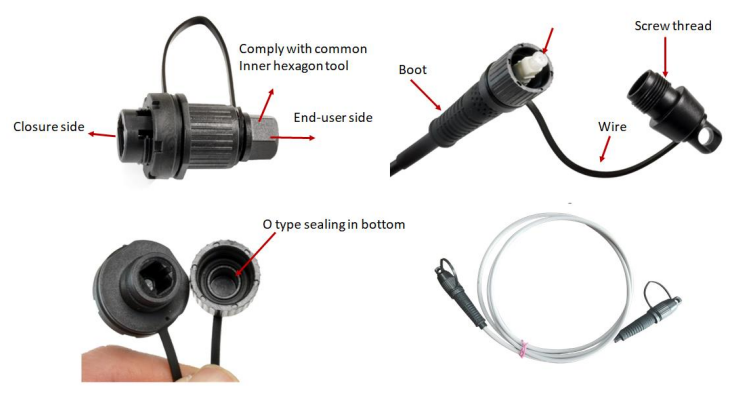

    Note: 1. Type K Pre-connectorized connector and adapter


    Installation

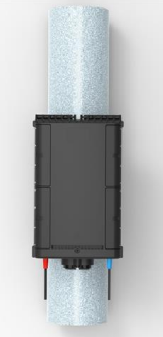

           Wall mounted                           Aerial mounted                        Pedestal mounted         Pole mounted

  • SUN-PDN-811A-KASC-BPW
    Fiber Optic Distribution Box
    Pre-connectorized multiport terminal box; Loaded with 1pc 1×8 PLC splitter (SC/APC) and 8pcs type K adapters (SC); 4pcs of 24-core/tray (12 slots/ tray) included; Black color, dimensions (mm): 370(L) x 210(W) x 124(H); Including wall and pole mounting accessories
  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local area networks
