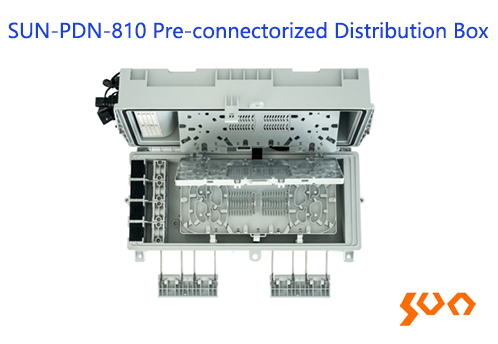

SUN-PDN-810 Pre-connectorized Distribution Box

Model: SUN-PDN-810

IP65; Max. 8 pre-connectorized adapters; 4 cable inlet ports

    Key Features

  • Advanced structure design, easy operation and reasonable routing
  • Material PC+ABS
  • Moisture-proof, waterproof, dust-proof, anti-aging
  • IP65
  • Max. 8 pre-connectorized adapters
  • 4 cable inlet ports
  • Wall/ Pole/ Aerial mounted
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom’s SUN-PDN-810 series fiber optic pre-connectorized distribution box is used as a distribution point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and it provides solid protection and management for the FTTx network building.
  • Parameters
    Specification
    Model
    SUN-PDN-810
    Material
    Box
    PC+ABS
    Splice Tray
    Type
    32 cores/tray (16 slots/ tray) with 2 slots for splitter
    Splitter Type
    1x8 blockless type PLC splitter
    Splicing Capacity (cores)
    96
    Pre-connectorized Adapter
    Number
    8 (upgradeable to 16pcs)
    Adapter Type
    B/C/D/H1
    Input Port
    Qty (pc)
    4
    Cable Diameter (mm)
    8~16
    IP
    IP65
    Color
    Gray (default, black color is optional)
    Temperature Range (°C)
    -40 ~ +85
    Relative Humidity (%) (+30°C)
    ≤85
    Atmospheric Pressure (Kpa)
    70~106
    Dimensions (mm)
    380(L) x 198.5(W) x 121(H)
    Installation Method
    Wall/ pole/ aerial

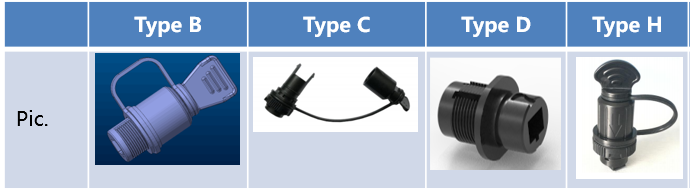

    Note: 1. Pre-connectorized adapters


    Structure Drawing
    A*B*C 380(L) x 198.5(W) x 121(H) IMG_256

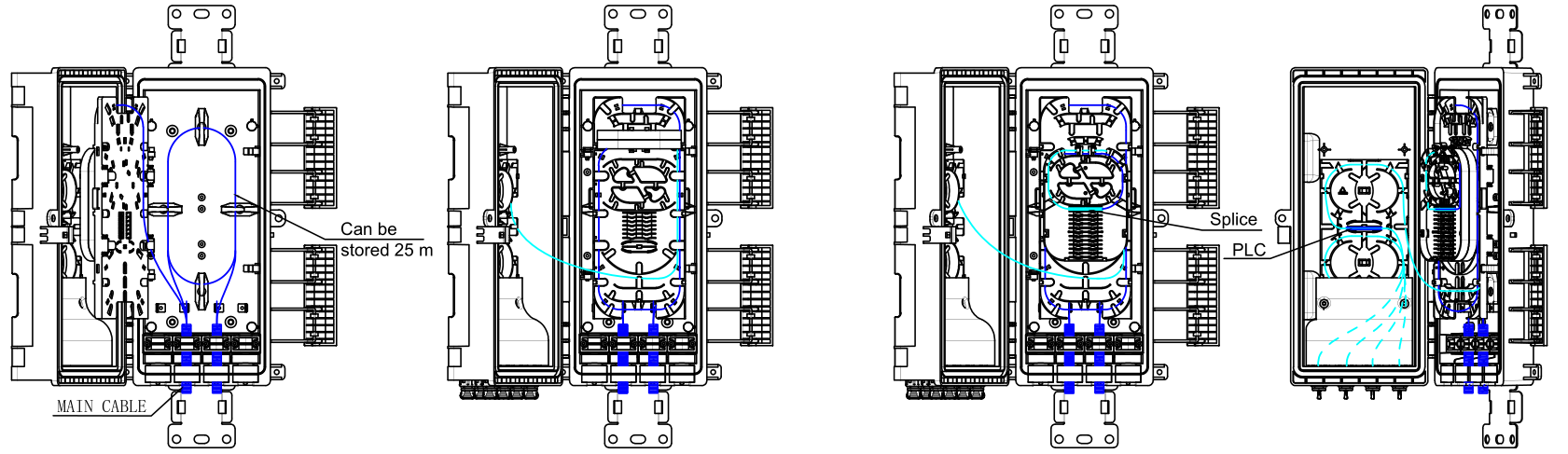

    Cable Route

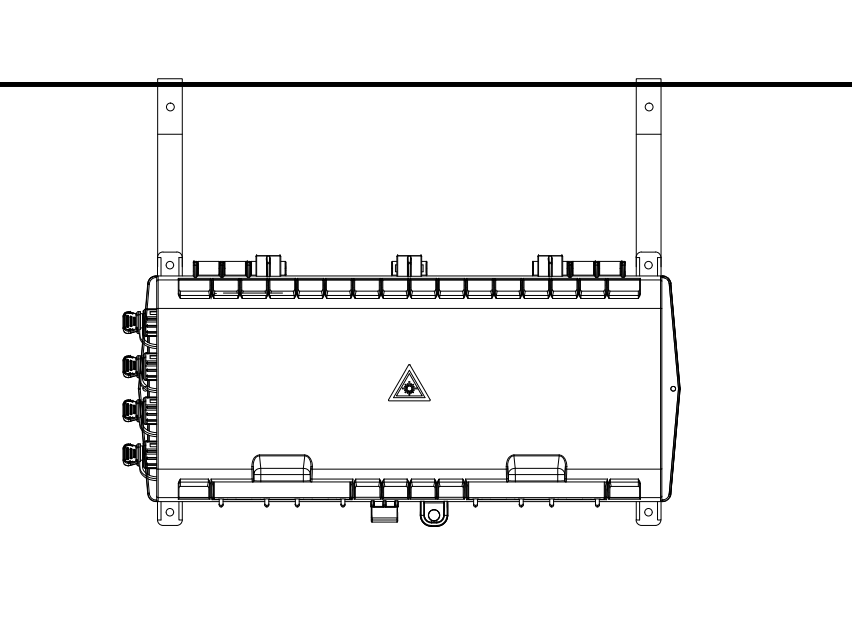

    Installations
    IMG_256
    IMG_256

  • SUN-PDN-810-CSC-GPW
    Fiber Optic Distribution Box
    Pre-connectorized multiport terminal box; Loaded with 1pc 1×8 PLC splitter and 8pcs type C adapters (SC); 3pcs of 32-core/tray (16 slots/ tray) included; Gray color, dimensions (mm): 380(L) x 198.5(W) x 121(H); Including wall and pole mounting accessories

  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local area networks
