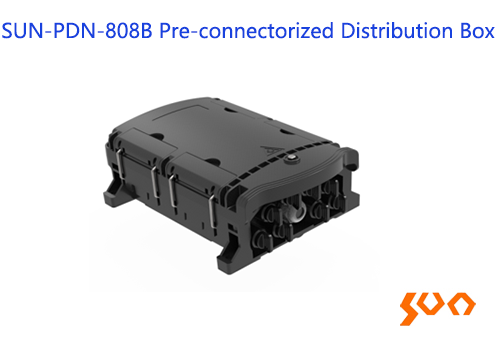

SUN-PDN-808 Pre-connectorized Distribution Box

Model: SUN-PDN-808

IP65; Max. 9 pre-connectorized adapters

    Key Features

  • Advanced structure design, easy operation and reasonable routing
  • Material PP
  • Moisture proof, waterproof, dust-proof, anti-aging
  • IP65
  • Max. 9 pre-connectorized adapters
  • Two ways to enter the cable
  • Wall/ Pole/ Aerial mounted
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom’s SUN-PDN-808 series fiber optic pre-connectorized distribution box is used as a distribution point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splitting and distribution can be done in this box, and it provides solid protection and management for the FTTx network building.
  • Parameters
    Specification
    Model
    SUN-PDN-808A
    SUN-PDN-808B
    Material
    Box
    PP
    Metallic Parts
    High quality stainless steel
    Pre-connectorized Adapter
    Number
    9
    8

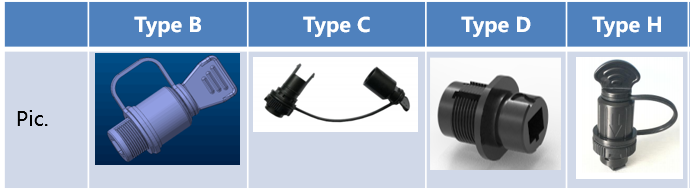

    Adapter Type
    B/C/D/H1

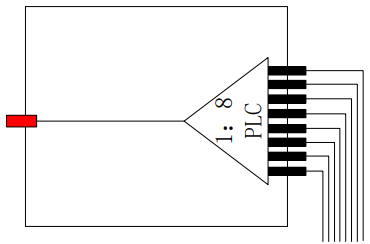

    Suitable Splitter Type
    1:8PLC
    1:8PLC
    Type of Input Cable Port
    Pre-connectorized adapter*1
    Cable gland*1
    IP Rating
    IP65
    Re-open
    Support
    Color
    Black
    Temperature Range (°C)
    -40 ~ +85
    Relative Humidity (%) (+30°C)
    ≤85
    Atmospheric Pressure (Kpa)
    70~106
    Dimensions (mm)
    264(L) x 182(W) x 84(H)
    Installation Method
    Wall/ pole/ Aerial
    Note: 1 Pre-connectorized adapters

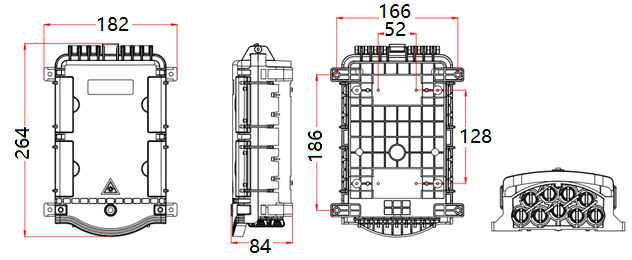

    Structure Drawing (mm)

    Installation
      IMG_256  G`[GCUDJXH{L51WIVA}_4$ASB4ITD$BF)$%UE[MOJ@@5XM
    Wall mounted                    Pole mounted                         Aerial mounted

  • SUN-PDN-808A-CSC-BW
    Fiber Optic Distribution Box
    Pre-connectorized multiport distribution box; Loaded with 1pc 1×8PLC splitters and 9pcs type C adapters (SC); Black color, dimensions (mm): 264(L) x 182(W) x 84(H); Including wall mounting accessories

    SUN-PDN-808B-CSC-BW
    Fiber Optic Distribution Box
    Pre-connectorized multiport distribution box; Loaded with 1pc 1×8 PLC splitter and 8pcs type C adapters (SC); Cable gland input port; Black color, dimensions (mm): 264(L) x 182(W) x 84(H); Including wall mounting accessories



  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local area networks
