SUN-PDN-806 Pre-connectorized Distribution Box

Model: SUN-PDN-806

IP68; Max. 10 pre-connectorized adapters; Three ways to enter the cable

    Key Features

  • Advanced structure design, easy operation and reasonable routing
  • Material PP
  • Moisture-proof, waterproof, dust-proof, anti-aging
  • IP68
  • Max. 10 pre-connectorized adapters
  • Three ways to enter the cable
  • Wall/ Pole/ Aerial mounted
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom’s SUN-PDN-806 series fiber optic pre-connectorized distribution box is used as a distribution point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splitting and distribution can be done in this box, and it provides solid protection and management for the FTTx network building.
  • Parameters
    Specification
    Model
    SUN-PDN-806A
    SUN-PDN-806B
    Material
    Box
    PP
    Metallic Parts
    High quality stainless steel
    Pre-connectorized Adapter
    Number
    10
    8
    Adapter Type
    B/C/D/H1
    Suitable Splitter Type

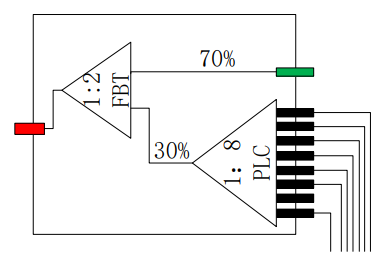

    1:2 FBT (30%:70%) + 1:8PLC

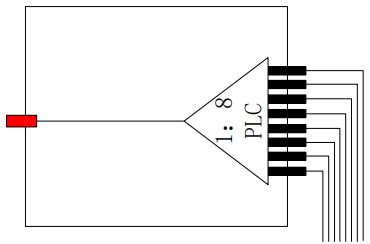

    1:8PLC

    1:2FBT splitter with other unequal splitting ration can be customized as request
    Type of Input Cable Port
    Pre-connectorized adapter*2
    Cable gland*1
    IP Rating
    IP68
    Re-open
    Support
    Color
    Black
    Temperature Range (°C)
    -40 ~ +85
    Relative Humidity (%) (+30°C)
    ≤85
    Atmospheric Pressure (Kpa)
    70~106
    Dimensions (mm)
    264(L) x 100(W) x 66.5(H)
    Installation Method
    Wall/ pole
    Cable Storage Rack
    Optional
    Parameters
    Specification
    Model
    SUN-PDN-806C
    SUN-PDN-806D
    Pre-connectorized Adapter
    Number
    8
    9
    Adapter Type
    B/C/D/H1
    Suitable Splitter Type
    1:8PLC
    1:8PLC
    Type of Input Cable Port
    Heat shrinking tube*1
    Pre-connectorized adapter*1

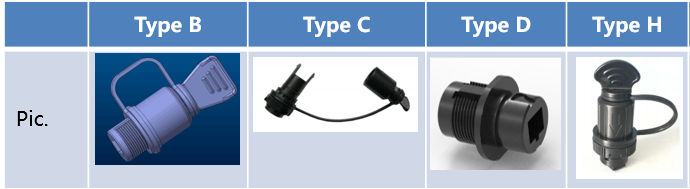

    Note: 1 Pre-connectorized adapters

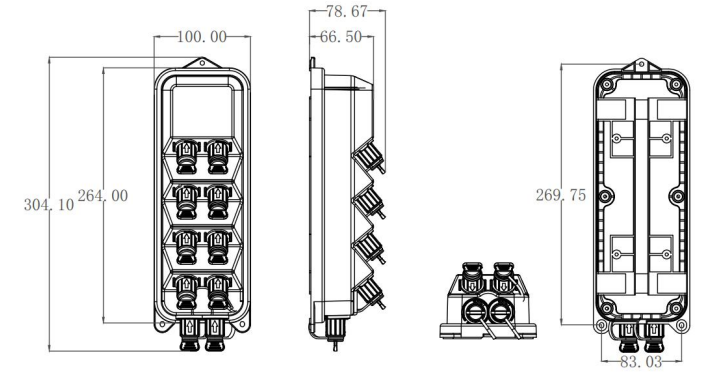

    Structure Drawing (mm)

    Installation

    Wall mounted                      Pole mounted

  • SUN-PDN-806A-37-CSC-BW
    Fiber Optic Distribution Box
    Pre-connectorized multiport distribution  box; Loaded with 1pc 1×2 FBT (30%:70%) +1×8PLC splitters and 10pcs type C adapters (SC); Black color, dimensions (mm): 264(L) x 100(W) x 66.5(H); Including wall mounting accessories

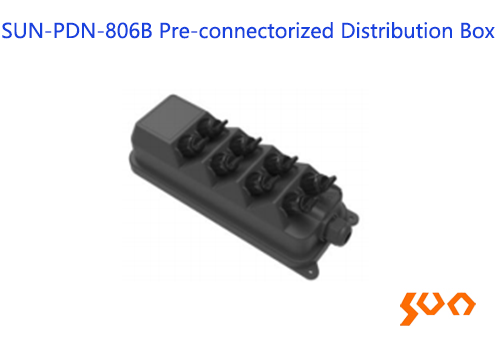

    SUN-PDN-806B-CSC-BW
    Fiber Optic Distribution Box
    Pre-connectorized multiport distribution  box; Loaded with 1pc 1×8 PLC splitter and 8pcs type C adapters (SC); Cable gland input port; Black color, dimensions (mm): 264(L) x 100(W) x 66.5(H); Including wall mounting accessories

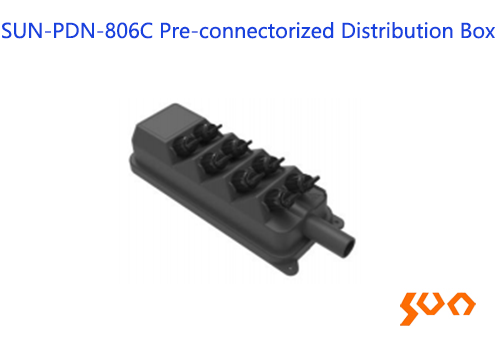

    SUN-PDN-806C-CSC-BW
    Fiber Optic Distribution Box
    Pre-connectorized multiport distribution  box; Loaded with 1pc 1×8 PLC splitter and 8pcs type C adapters (SC); Heat shrinking tube input port; Black color, dimensions (mm): 264(L) x 100(W) x 66.5(H); Including wall mounting accessories

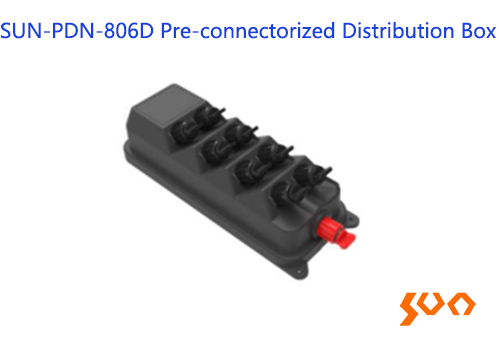

    SUN-PDN-806D-CSC-BW
    Fiber Optic Distribution Box
    Pre-connectorized multiport distribution  box; Loaded with 1pc 1×4 PLC+1×8PLC splitters and 9pcs type C adapters (SC); Black color, dimensions (mm): 264(L) x 100(W) x 66.5(H); Including wall mounting accessories

  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local area networks
