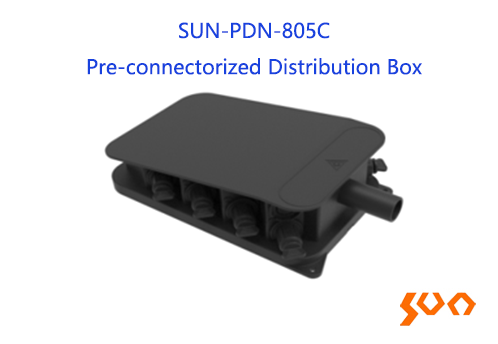

SUN-PDN-805 Pre-connectorized Distribution Box

Model: SUN-PDN-805

IP68; Max. 10 pre-connectorized adapters; Three ways to enter the cable

    Key Features

  • Advanced structure design, easy operation and reasonable routing
  • Material PP
  • Moisture-proof, waterproof, dust-proof, anti-aging
  • IP68
  • Max. 10 pre-connectorized adapters
  • Three ways to enter the cable
  • Wall/ Pole/ Aerial mounted
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-PDN-805 series fiber optic pre-connectorized distribution box is used as a distribution point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splitting and distribution can be done in this box, and it provides solid protection and management for the FTTx network building.
  • Parameters Specification
    Model SUN-PDN-805A SUN-PDN-805B SUN-PDN-805C
    Material Box PP
    Metallic Parts High quality stainless steel
    Pre-connectorized Adapter Number 10 8 8

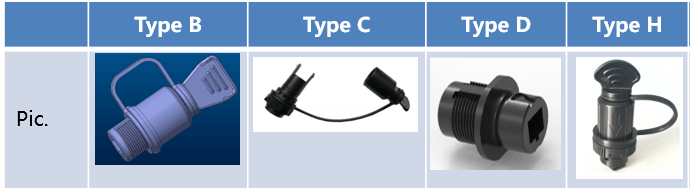

    Adapter Type B/C/D/H1

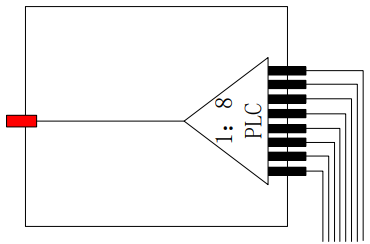

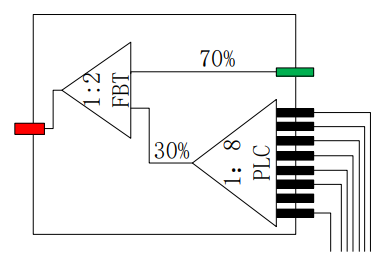

    Suitable Splitter Type 1:2 FBT (30%:70%) + 1:8PLC 1:8PLC 1:8PLC

    1:2FBT splitter with other unequal splitting ration can be customized as request
    Type of Input Cable Port Pre-connectorized adapter*2 Cable gland*1 Heat shrinking tube*1
    IP Rating IP68
    Re-open Support
    Color Black
    Temperature Range (°C) -40 ~ +85
    Relative Humidity (%) (+30°C) ≤85
    Atmospheric Pressure (Kpa) 70~106
    Dimensions (mm) 240(L) x 150(W) x 74(H)
    Installation Method Wall/ pole
    Cable Storage Rack Optional

    Parameters Specification
    Model SUN-PDN-805D SUN-PDN-805E
    Pre-connectorized Adapter Number 12 12
    Adapter Type B/C/D/H1

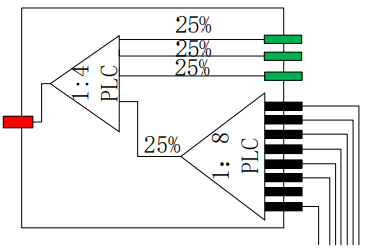

    Suitable Splitter Type 1:4PLC+1:8PLC 1:4PLC+1:8PLC
    Type of Input Cable Port Cable gland*1 Heat shrinking tube*1
    Note: 1 Pre-connectorized adapters


    Structure Drawing (mm)
    Installation
    {_R`RHE3EG8[8TR)5S{HK)7  Y@H`TY(O]$DJVR896V7{9YW
    Wall mounted                      Pole mounted
  • Ordering Information (For example)
    SUN-PDN-805A-37-CSC-BW
    Fiber Optic Distribution Box
    Pre-connectorized multiport distribution box; Loaded with 1pc 1×2 FBT (30%:70%) + 1×8PLC splitters and 10pcs type C adapters (SC); Black color, dimensions (mm): 240 (L) ×150 (W) × 74 (H); Including wall mounting accessories

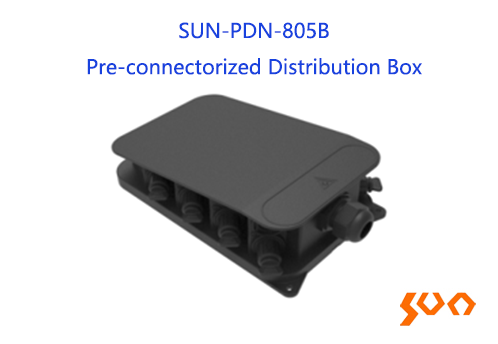

    SUN-PDN-805B-CSC-BW
    Fiber Optic Distribution Box
    Pre-connectorized multiport distribution box; Loaded with 1pc 1×8 PLC splitter and 8pcs type C adapters (SC); Cable gland input port; Black color, dimensions (mm): 240 (L) ×150 (W) × 74 (H); Including wall mounting accessories

    SUN-PDN-805C-CSC-BW
    Fiber Optic Distribution Box
    Pre-connectorized multiport distribution box; Loaded with 1pc 1×8 PLC splitter and 8pcs type C adapters (SC); Heat shrinking tube input port; Black color, dimensions (mm): 240 (L) ×150 (W) × 74 (H); Including wall mounting accessories

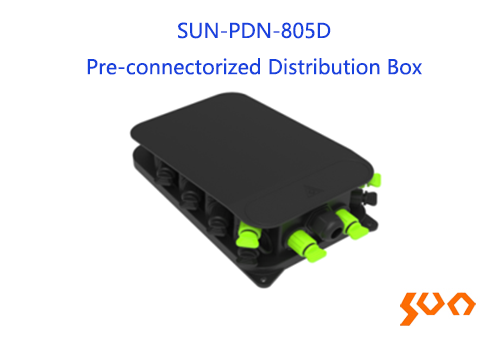

    SUN-PDN-805D-CSC-BW
    Fiber Optic Distribution Box
    Pre-connectorized multiport distribution box; Loaded with 1pc 1×4 PLC+1×8PLC splitters and 12pcs type C adapters (SC); Cable gland input port; Black color, dimensions (mm): 240 (L) ×150 (W) × 74 (H); Including wall mounting accessories

    SUN-PDN-805E-CSC-BW
    Fiber Optic Distribution Box
    Pre-connectorized multiport distribution box; Loaded with 1pc 1×4 PLC+1×8PLC splitters and 12pcs type C adapters (SC); Heat shrinking tube input port; Black color, dimensions (mm): 240 (L) ×150 (W) × 74 (H); Including wall mounting accessories
  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local area networks
