SUN-PDN-801 Pre-connectorized Distribution Box

Model: SUN-PDN-801

IP68; Max. 10 pre-connectorized adapters; Fully sealed design

    Key Features

  • Fully sealed design
  • Material PP
  • Moisture-proof, waterproof, dust-proof, anti-aging
  • IP68
  • Max. 10 pre-connectorized adapters
  • Wall/ Pole/ Aerial mounted
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-PDN-801 series fiber optic pre-connectorized distribution box is used as a distribution point for the feeder cable to connect with the drop cable in the FTTx commun　ication network system. The fiber splitting and distribution can be done in this box, and it provides solid protection and management for the FTTx network building.

  • Parameters Specification
    Model SUN-PDN-801A SUN-PDN-801B SUN-PDN-801C SUN-PDN-801D
    Material Box PP
    Metallic Parts Stainless steel 304
    Pre-connectorized Adapter Number 9 10 6 5
    Adapter Type B/C/D/H1
    Suitable Splitter Type 1x8 blockless type PLC splitter  1x2 FBT (70/302) + 1x8 blockless type PLC splitter
    (1x9 uneven)    		 1x2 FBT (70/302) + 1x4 blockless type PLC splitter
    (1x5 uneven)    		 1x4 blockless type PLC splitter
    IP Rating IP68
    Re-open Not re-opened
    Color Black
    Temperature Range (°C) -40 ~ +85
    Relative Humidity (%) (+30°C) ≤85
    Atmospheric Pressure (Kpa) 70~106
    Dimensions (mm) 179(L) x 171(W) x 66(H)
    Installation Method Wall/ pole/ Aerial

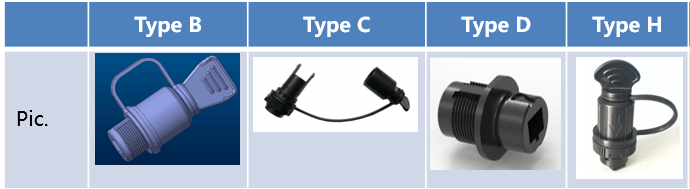

    Note: 1 Pre-connectorized adapters


                 2 1x2 FBT (70/30), other splitting rations are optional, for example: 90/10, 80/20, 70/30, 60/40, 50/50

    Standard Package
    No. Product Unit Quantity
    1 Box set 1
    2 1x 4/1x 8 Blockless Type PLC Splitter
    (Assembled inside the box) As request    		 piece 1
    3 1x2 FBT Splitter (70/30 or others)
    (Assembled inside the box) As request    		 piece 1
    4 Wall Mount Accessory set 1
    5 Pole Mount Accessory set 1

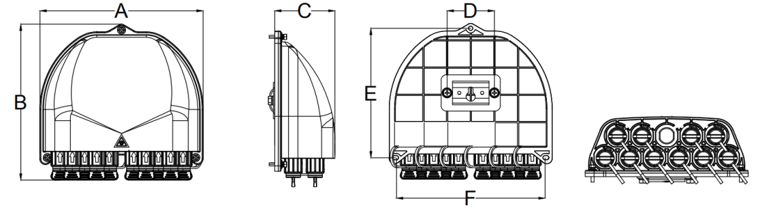

    Structure Drawing


  • Ordering Information (For example)
    SUN-PDN-801A-CSC-BPW
    Fiber Optic Distribution Box
    Pre-connectorized multiport distribution box; Loaded with 1pc 1×8 PLC splitter (SC/UPC) and 9pcs type C adapters (SC/UPC); Black color, dimensions (mm): 179 (L)×171 (W)×66 (H); Including wall and pole mounting accessories

    SUN-PDN-801B-37-CSC-BPW
    Fiber Optic Distribution Box
    Pre-connectorized multiport distribution box; Loaded with 1pc 1×2 FBT (70/30) and 1×8 PLC splitter (SC/UPC) and 10pcs type C adapters (SC/UPC); Black color, dimensions (mm): 179 (L)×171 (W)×66 (H); Including wall and pole mounting accessories

    SUN-PDN-801C-37-CSC-BPWA
    Fiber Optic Distribution Box
    Pre-connectorized multiport distribution box; Loaded with 1pc 1×2 FBT (70/30) and 1×4 PLC splitter (SC/UPC) and 6pcs type C adapters (SC/UPC); Black color, dimensions (mm): 179 (L)×171 (W)×66 (H); Including wall, pole and aerial mounting accessories

    SUN-PDN-801D-CSC-BPWA
    Fiber Optic Distribution Box
    Pre-connectorized multiport distribution box; Loaded with 1pc 1×4 PLC splitter (SC/UPC) and 5pcs type C adapters (SC/UPC); Black color, dimensions (mm): 179 (L)×171 (W)×66 (H); Including wall, pole and aerial mounting accessories

    SUN-PDN-801A-CASC-BPW
    Fiber Optic Distribution Box
    Pre-connectorized multiport distribution box; Loaded with 1pc 1×8 PLC splitter (SC/APC) and 9pcs type C adapters (SC/APC); Black color, dimensions (mm): 179 (L)×171 (W)×66 (H); Including wall and pole mounting accessories

    SUN-PDN-801B-37-CASC-BPW
    Fiber Optic Distribution Box
    Pre-connectorized multiport distribution box; Loaded with 1pc 1×2 FBT (70/30) and 1×8 PLC splitter (SC/APC) and 10pcs type C adapters (SC/APC); Black color, dimensions (mm): 179 (L)×171 (W)×66 (H); Including wall and pole mounting accessories

    SUN-PDN-801B-55-CASC-BPW
    Fiber Optic Distribution Box
    Pre-connectorized multiport distribution box; Loaded with 1pc 1×2 FBT (50/50) and 1×8 PLC splitter (SC/APC) and 10pcs type C adapters (SC/APC); Black color, dimensions (mm): 179 (L)×171 (W)×66 (H); Including wall, pole and aerial mounting accessories

  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local area networks
