Position: Home > Products > Cable Management > Pre-connectorized Distribution Box

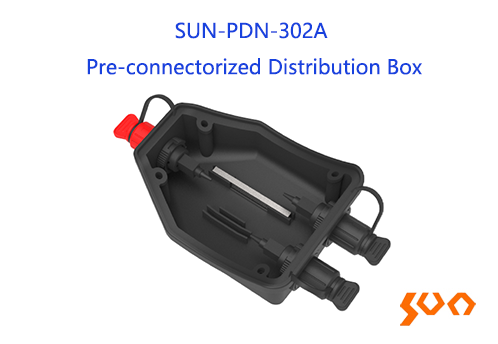

SUN-PDN-302A Pre-connectorized Distribution Box

Model: SUN-PDN-302A

IP68; Max. 3 pre-connectorized adapters

    Key Features

  • Advanced structure design, easy operation and reasonable routing
  • Material PP
  • Moisture-proof, waterproof, dust-proof, anti-aging
  • IP68
  • 3 pre-connectorized adapters
  • Wall/ Pole/ Aerial mounted
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-PDN-320A fiber optic pre-connectorized distribution box is used as a distribution point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splitting and distribution can be done in this box, and it provides solid protection and management for the FTTx network building.
  • Parameters Specification
    Material Box PP
    Metallic Parts High quality stainless steel
    Pre-connectorized Adapter Number 3

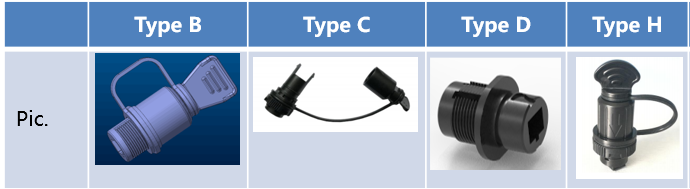

    Adapter Type B/C/D/H1

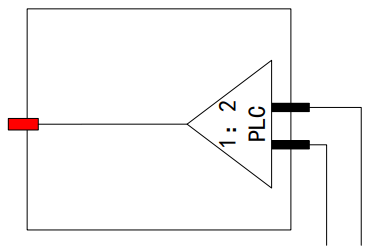

    Suitable Splitter Type 1x2 blockless type PLC splitter (60*7*4mm)
    IP Rating IP68
    Re-open Support
    Color Black
    Temperature Range (°C) -40 ~ +85
    Relative Humidity (%) (+30°C) ≤85
    Atmospheric Pressure (Kpa) 70~106
    Dimensions (mm) 193(L) x 100(W) x 54(H)
    Installation Method Wall/ pole/ Aerial
    Note: 1 Pre-connectorized adapters


    Structure Drawing (mm)
    L0P3%%MZT15Y504Y2UT7)$V

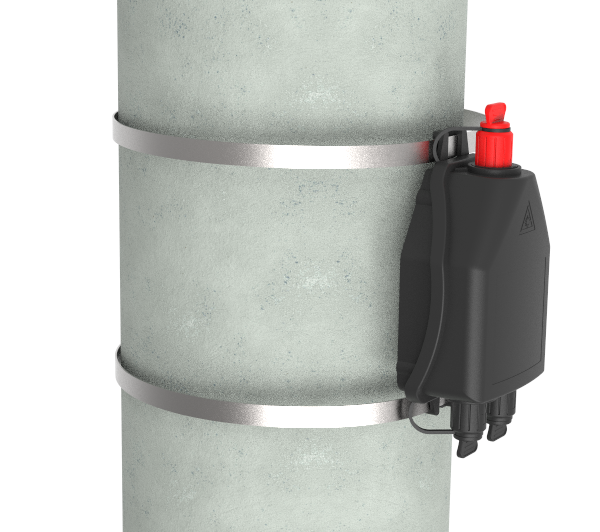

    Installation
    R}~SYCI$~1{7)_LN8XN[JHT    [KFX@`1ROVP_T5~SZ4TZG)U
    Wall mounted              Pole mounted                    Aerial mounted
  • Ordering Information (For example)
    SUN-PDN-302A-CSC-BW
    Fiber Optic Distribution Box
    Pre-connectorized multiport distribution box; Loaded with 1pc 1×2 PLC splitter and 3pcs type C adapters (SC); Black color, dimensions (mm): 190 (L)×100 (W)×54 (H); Including wall mounting accessories
  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local area networks
