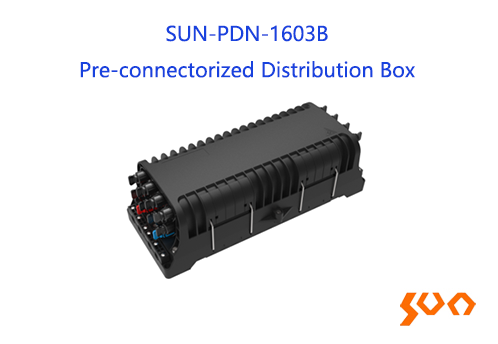

SUN-PDN-1603 Series Pre-connectorized Distribution Box

Model: SUN-PDN-1603

IP68; Max. 16 pre-connectorized adapters; 8 cable inlet ports

    Key Features

  • Advanced structure design, easy operation and reasonable routing
  • Material PP
  • Moisture-proof, waterproof, dust-proof, anti-aging
  • IP68
  • Max. 18 pre-connectorized adapters
  • 8 cable inlet ports
  • Wide selection of splice trays
  • Wall/ Pole/ Aerial mounted
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom’s SUN-PDN-1603 series fiber optic pre-connectorized distribution box is used as a distribution point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and it provides solid protection and management for the FTTx network building.

  • Parameters
    Specification
    Model
    SUN-PDN-1603A
    SUN-PDN-1603B
    Material
    Box
    PP
    Splice Tray1
    Model
    Model A, 24 cores/tray (12 slots/ tray) with 2 slots for splitter
    Splitter Type
    1x8 blockless type PLC splitter
    Number (pc)
    6
    6
    Splicing Capacity (Cores)
    144
    144
    Pre-connectorized Adapter3
    Number
    16
    18
    Adapter Type
    B/C/D/E/H/G
    Suitable Splitter Type
    1x8 or 1x16 blockless type PLC splitter
    1x2 FBT (70/302) + 1x16 blockless type PLC splitter
    Input Cable Port
    Qty (pc)
    8 (4 in 4 out)
    Cable Diameter (mm)
    5~16
    IP
    IP68
    Color
    Black
    Temperature Range (°C)
    -40 ~ +85
    Relative Humidity (%) (+30°C)
    ≤85
    Atmospheric Pressure (Kpa)
    70~106
    Dimensions (mm)
    430(L) x 196(W) x 137.5(H)
    Installation Method
    Wall/ pole/ aerial

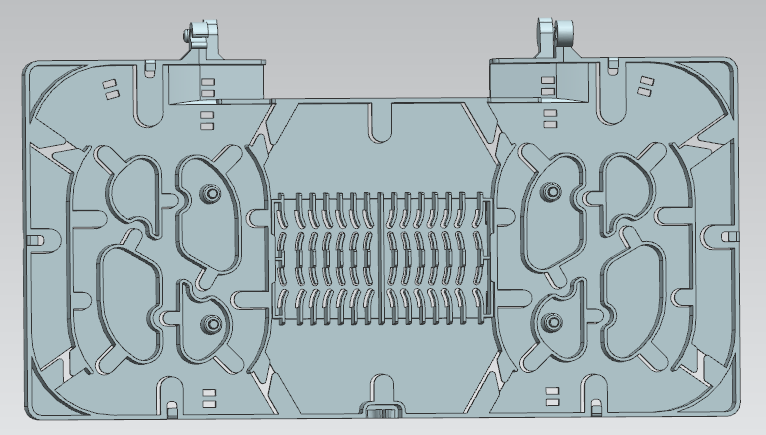

    Note: 1. Splitter tray and splice tray

    2. 1x2 FBT (70/30), other splitting rations are optional, for example: 90/10, 80/20, 70/30, 60/40, 50/50

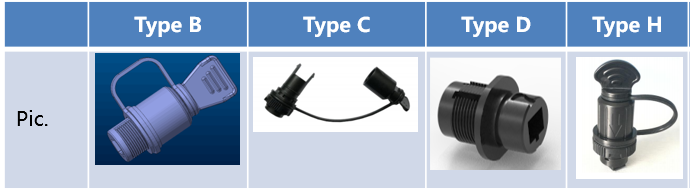

    3. Pre-connectorized adapters

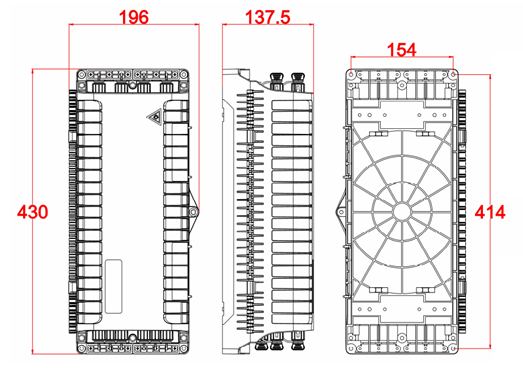

    Structure Drawing

    Cable Route

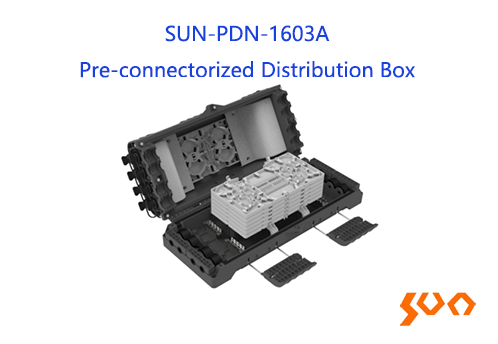

    SUN-PDN-1603A
    P8YVU67F7I`J[1~9WT{1WB5

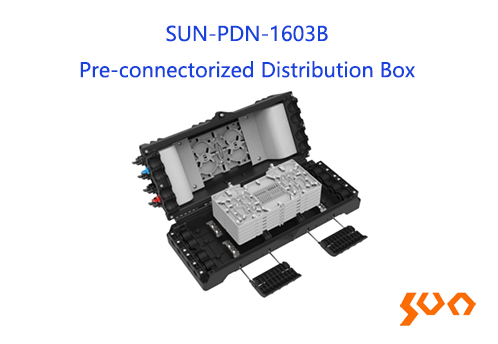

    SUN-PDN-1603B
    5D[ZNUZC@6U1_}X9N3N{6EX

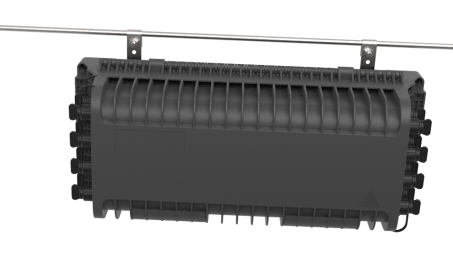

    Installation
    CKLB([Z%PCFJ(6$}6Y3%IEF `YG`3D@G)UBB[EPIV$%6EZSGPD`)$(YZ{5RHFW`HYWSF36

  • SUN-PDN-1603A-CSC-BPW
    Fiber Optic Distribution Box
    Pre-connectorized multiport distribution box; Loaded with 2pcs 1×8 PLC splitter and 16pcs type C adapters (SC); 6 trays of 24-coes/tray (12 slots/tray) included; Black color, dimensions (mm): 430 (L) x 196 (W) x 137.5 (H); Including wall and pole mounting accessories

    SUN-PDN-1603B-37-CSC-BPW
    Fiber Optic Distribution Box
    Pre-connectorized multiport distribution box; Loaded with 1pc 1×2 FBT (70/30) and 1×16 PLC splitter and 18pcs type C adapters (SC); 6 trays of 24-coes/tray (12 slots/tray) included; Black color, dimensions (mm): 430 (L) x 196 (W) x 137.5 (H); Including wall and pole mounting accessories

  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local area networks
