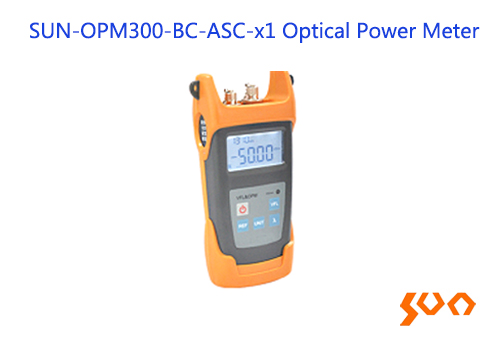

SUN-OPM300-BC-ASC-x1 Series Optical Power Meter

Model: SUN-OPM300-BC-ASC-x1

SC/APC, REF, backlight control

    Key Features

  • Power measurements in dBm or xW
  • Auto power off after 10 minutes without operation
  • Standard FC/SC/ST interchangeable port
  • Backlight LCD display for night operation
  • REF setting function
  • Intelligent backlight control
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom’s SUN-OPM300-BC-ASC-x1 series of handheld optical power meter provides testing for 6 output wavelengths with REF setting function (Reference power storage). It is a cost-effective testing solution for the fiber optic network together with a light source.
  • Parameters Specification
    Measurement Range (dBm) -50 ~ +26
    Interface Two
    Wavelength Range (nm) 800 ~ 1700
    Wavelength (nm) 850/1300/1310/1490/ 1550/1625
    Detector Type InGaAs
    Uncertainty (dB) ± 0.7
    Connector SC/APC
    Power Supply 3*AA1.5V rechargeable Battery and Recharger
    Auto Off Mode 10 mins not use
    Display Resolution (dB) ±0.01
    Operation Temperature (°C) -10 ~ +60
    Storage Temperature (°C) -25 ~ +70
    Relative Humidity 0 ~ 95% (non-condensing)
    Dimensions (mm) 192 x 102 x 50
    Weight (g) 700
    VFL Fuction
    Wavelength (nm) 650
    The Spectral Width (nm) < 10
    VFL Output Power (mw) 10
    Range for Distance Test(km) ≥ 5
    Type Fibers SM, MM
    Mode Test Continuous or flashing with frequency (2-3Hz)

    Standard Package

    No. Product Unit Quantity
    1 Optical Power Meter set 1
    2 AA 1.5V Rechargeable Battery pieces 3
    3 Recharger piece 1
    4 Soft Bag piece 1
    5 USB Disk piece 1
    6 SC Adapter (For Power Meter function) piece 1
    7 SC Adapter (For VFL function) piece 2
    8 2.5mm to 1.25mm Adapter (For VFL function) piece 1

  • Model Name Description
    SUN-OPM300-BC-ASC-x1 Optical Power Meter Handheld, 850/1300/1310/1490/1550/1625nm; Measurement range: -50~+26dBm; SC/APC port(for power meter);VFL function: 650nm, 10mw, SC/FC/ST interchangeable port; including 2*SC adapter and 1*2.5mm to 1.25mm adapter
    SUN-LC-SM-AD Adapter LC, SM, simplex, plastic housing ( blue); Ceramic sleeve, white cap
    SUN-ASC-0.25M-LC-SM-SX-3P Patch cord Simplex patchcord; SC/APC - LC/UPC; Length: 0.25M (Tolerance:0~0.1M); SM, G652D; Simplex cable; 3.0mm PVC jacket

  • ● Maintenance in Telecom
    ● Fiber Optic Lab Testing
    ● Other Fiber Optic Measurements
