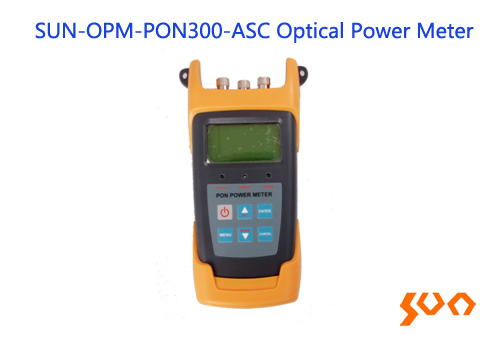

SUN-OPM-PON300-ASC Optical Power Meter

Model: SUN-OPM-PON300-ASC

SC/APC, EPON/GPON test

    Key Features

  • EPON/GPON test
  • Measurement of all three wavelengths (1310nm ,1490nm, 1550nm) on the fiber simultaneously
  • USB connection for data transfer
  • Optional normal optical power meter and visual fault locator modules
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  •  Sun Telecom’s SUN-OPM-PON300-ASC series of optical power meter can test the optical power values of voice, data and video signals, supporting EPON/GPON test. It is ideal for PON network construction and maintenance.
  • Specifications
    Parameters Specification
    1310nm Upstream Measurement
    Wavelength Range (nm) 1260~1360
    Measurement Range (dBm) -35~10
    Input Power (max) (dBm) 15
    Isolation@1490/1550 (dB) >40
    Burst Mode Measurement Error (dB) <±0.5
    1490nm Downstream Measurement
    Wavelength Range (nm) 1470~1505
    Measurement Range (dBm) -35~10
    Input Power (max) (dBm) 15
    Isolation@1310/1550nm (dB) >40
    1550nm Downstream Measurement
    Wavelength Range (nm) 1535~1570
    Measurement Range (dBm) -35~20
    Input Power (max) (dBm) 25
    Isolation@1310/1490nm (dB) >40
    Measurement Accuracy
    Uncertainty (dB) ±0.5
    Linearity (dB) ±0.1
    Insertion Loss (dB) <1.5
    General Information
    Detector Type InGaAs
    Optical Port SC/APC
    Fiber Type (um) SM 9/125
    Measurement Unit dB/dBm/xW
    Resolution (dB) 0.01
    Power Supply (V) 3*AA1.5V rechargeable Battery and Recharger
    Continuously Operation Time (h) PON: 90; OPM: 100; VFL: 50
    Operation Temperature (°C) -10~60
    Storage Temperature (°C) -25~70
    Dimensions (mm) 192(L) x 102(W) x 50(H)
    Normal Optical Power Meter Module (Optional)
    Connatural Uncertainty (dB) ±0.5
    Linearity (dB) ±0.1
    Measurement Range (dBm) -70~6
    Measurement Unit dB/dBm
    Resolution (dB) 0.01
    Calibration Wavelength (nm) 1310/1490/1550/1625
    Detector Type InGaAs
    Red Light Source (VFL) Module (Optional)
    Output Power (mW) >0.5
    Wavelength (nm) 650
    Fiber Type SM/MM

    Standard Accessories
    No. Product Unit Quantity
    1 Optical Power Meter set 1
    2 AA 1.5V Rechargeable Battery pieces 3
    3 Recharger piece 1
    4 USB Disk piece 1
    5 Soft Bag piece 1
    6 SC Adapter pieces 2
    7 USB Cable piece 1

  • Ordering Information
    Model Name Description
    SUN-OPM-PON300-ASC Optical Power
    Meter
    Handheld, SC/APC port; PON Optical Power Meter Functions, Measurement range: 1310/1490nm: -35~+10dBm,1550nm: -35~+20dBm
    SUN-MPC-ASC-1M-ASC-SM-SX-3P-A

    Master patchcord SC/APC-SC/APC; Length: 1M (tolerance: 0~0.1M); SM, G652D; Simplex cable; 3.0mm PVC jacket; Grade A

  • ● Communications network
    ● FTTx Engineering
