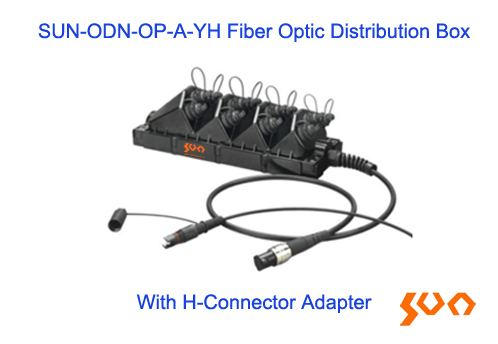

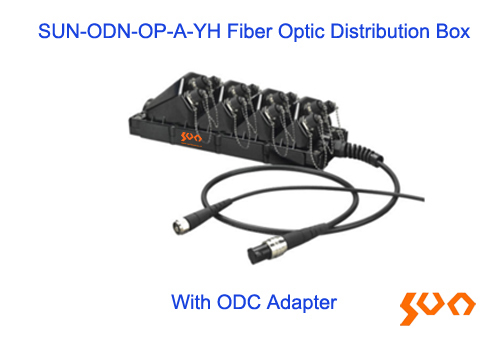

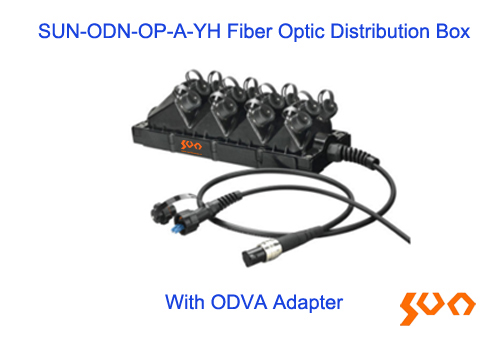

Black; Max adaptors:12; ODVA, MSC, ODC, HC adaptors; Pole mounting accessories included
| Parameters | Specification |
| Ingress Protection | IP68 |

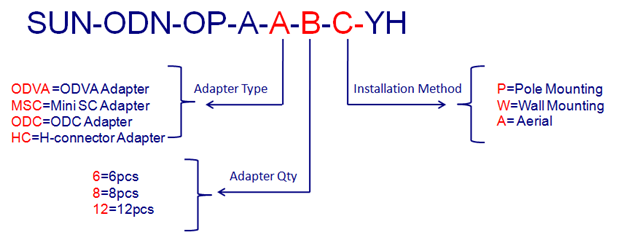

| Adapter Type | ODVA, Mini SC, ODC, H-connector |
| Adapter Qty | 6/8/12 |
| Round Cable OD (mm) | 5~14 |
| Tensile Strength (N) | 1200 |
| UV Resistance | ISO 4892-3 |
| Fire Protection Rating | UL 94-V0 |
| Number of PLC | 1-2 |
| Number of Protection Sleeves | 1-24 |
| Temperature (℃) | -40~+80 |
| Dimension (mm) | 365(L) x 137(W) x 90(H) without cover 375(L) x 142(W) x 120(H) with cover |
SUN-SFP28-25G-BIDI Optical Transceiver
Model: SUN-SFP28-25G-BIDI
25Gbps, SM, single fiber, max transmission distance: 10km; LC interface
Features
Operating data rate support 24.3Gbps to 26.5Gbps Compliant with IEEE 802.3cc Compliant with SFF-8402 Compliant with SFF-8432 Compliant with SFF-8472 Internal CDR on both Transmitter and Receiver channel Hot-pluggable SFP28 footprint DFB laser transmitter and PIN PD Receiver Simplex LC connector Built-in digital diagnostic functions Up to 10km on SMF Single power supply 3.3V Operating case temperature: Standard: 0~+70°C, Industrial: -40~+85°C
SUN-SFP28-25G-LR Optical Transceiver
Model: SUN-SFP28-25G-LR
25Gbps,1310nm; SM, dual fiber, max transmission distance: 10km; LC interface
Features
25Gb/s serial optical interface 1310nm DFB transmitter, PIN photo-detector 2-wire interface for management specifications compliant with SFF 8472, digital diagnostic monitoring interface for optical transceivers Advanced firmware allow customer system encryption information to be stored in transceiver Cost effective SFP28 solution, enables higher port densities and greater bandwidth Operating case temperature: Standard: 0~+70°C, Industrial: -40~+85°C
SUN-SFP28-CWDM-25G Optical Transceiver
Model: SUN-SFP28-CWDM-25G
25Gbps, CWDM; SM, dual fiber, max transmission distance: 10km; LC interface
Features
Operating data rate support 24.3Gbps to 26.5Gbps Compliant with IEEE 802.3cc Compliant with SFF-8402 Compliant with SFF-8432 Compliant with SFF-8472 Internal CDR on both Transmitter and Receiver channel Hot-pluggable SFP28 footprint CWDM DFB laser transmitter and PIN PD Receiver Duplex LC connector Built-in digital diagnostic functions Up to 10km on SMF Single power supply 3.3V Compliant Operating case temperature Standard: 0~+70°C Industrial: -40~+85°C
SUN-QSFP28-100G-LR4 Optical Transceiver
Model: SUN-QSFP28-100G-LR4
100Gbps, 1310nm; SM, dual fiber, max transmission distance: 10km; LC interface
Features
4 channels full-duplex transceiver modules Transmission data rate up to 26Gbps per channel 4 x 26Gb/s DFB-based LAN-WDM Cooling transmitter 4 channels PIN ROSA Low power consumption <3.5W Hot Pluggable QSFP form factor Up to reach 10km for G.652 SMF Duplex LC receptacles Built-in digital diagnostic functions Operating case temperature: Standard : 0 to +70°C, Industrial : -40 to +85°C 3.3V power supply voltage RoHS 6 compliant
SUN-CWDM WDM
Model: SUN-CWDM
2~18channel, ABS box
Features
Low insertion loss Low PDL High channel isolation Up to 18 CWDM wavelength over one pair of fiber
SUN-GYDGS Optical Fiber Ribbon Cable
Model: SUN-GYDGS
GYDGS, steel wire central strength member, single PSP armor and single PE jacket, 48~144 cores
Features
Good mechanical and temperature performance Excellent crush resistance High tensile strength ensured by steel wire All-dry design High fiber density
SUN-GYFJH Outdoor Remote Cable Patch Cord
Model: SUN-GYFJH
SM/SMA1, GYFJH cable 2 cores, 7.0mm LSZH Black jacket
Features
Low insertion loss and high return loss High intensity of tension Water and dust proof
SUN-OC-ABMC Air-blowing Micro Cable (GCYFY)
Model: SUN-OC-ABMC
Stranded loose tube, FRP central strength member and single PE jacket; 2~288 fibers
Features
Good mechanical and temperature performance High hydrolysis resistance and high strength loose tube Good flexibility High tensile strength ensured by FRP Small size and light weight, suitable for air blowing
