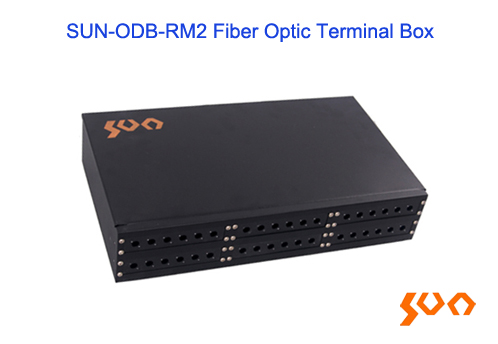

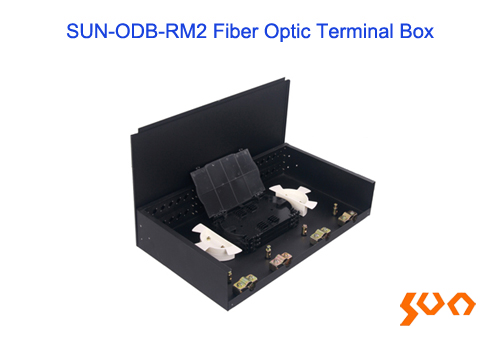

Max 48 cores, 19" standard rack size
| Parameters | Specification | ||
| Max. No. of Cores | 12 | 24 | 48 |
| Adapter Type | FC square, SC, DLC (SC type), ST | ||
| Box Material | Cold-rolled steel | ||
| Dimensions (mm) | 430 (L) × 250 (W) × 45 (H) | 430 (L) × 250 (W) × 45 (H) | 465 (L) × 285 (W) × 90 (H) |
| Weight (kg) | 2.6 | 2.6 | 3.8 |
| No. | Name | Unit | Quantity |
| 1 | Fiber Optic Terminal Box | set | 1 |
| 2 | Ties | pieces | 4, 8 or 16 |
| 3 | Protective Sleeves | pieces | 12, 24 or 48 |
| Model | Name | Description |
| SUN-ODB-RM2-12FC | Fiber Optic Terminal Box | 19-inch rack; Max. 12 cores, FC square panel; Adapters NOT included |
| SUN-ODB-RM2-12SC | Fiber Optic Terminal Box | 19-inch rack; Max. 12 cores, SC panel; Adapters NOT included |
| SUN-ODB-RM2-12ST | Fiber Optic Terminal Box | 19-inch rack; Max. 12 cores, ST panel; Adapters NOT included |
| SUN-ODB-RM2-24FC | Fiber Optic Terminal Box | 19-inch rack; Max. 24 cores, FC square panel; Adapters NOT included |
| SUN-ODB-RM2-24SC | Fiber Optic Terminal Box | 19-inch rack; Max. 24 cores, SC panel; Adapters NOT included |
| SUN-ODB-RM2-24ST | Fiber Optic Terminal Box | 19-inch rack; Max. 24 cores, ST panel; Adapters NOT included |
| SUN-ODB-RM2-48FC | Fiber Optic Terminal Box | 19-inch rack; Max. 48 cores, FC square panel; Adapters NOT included |
| SUN-ODB-RM2-48SC | Fiber Optic Terminal Box | 19-inch rack; Max. 48 cores, SC panel; Adapters NOT included |
| SUN-ODB-RM2-48ST | Fiber Optic Terminal Box | 19-inch rack; Max. 48 cores, ST panel; Adapters NOT included |
