SUN-MTP Fiber Optic Patchcord

Model: SUN-MTP

Low insertion loss, high return loss

    Key Features

  • Low insertion loss
  • High return loss
  • Good durability
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-MTP MTP patch cord is multi-fiber cable with MTP connector terminated at both ends. With low insertion loss, high return loss, and good durability, it is used for high-density fiber patching in data centers and other high fiber environments which need space saving and reduce cable management troubles.
  • Specifications
    Parameters Specification
    Fiber Type Single mode Multimode
    G652D (G657A/G657B optional) OM3/OM4 (OM1/OM2 optional)
    Insertion Loss (dB)  ≤ 0.7 (0.35 optional)
    Return Loss (dB) UPC ≥ 45 ≥ 20
    APC ≥ 55 /
    Durability (dB) 500 mating times △IL ≤ 0.2, △RL ≤ 5
    Cable Type Round cable (flat ribbon cable optional)
    Jacket Material PVC (LSZH optional)
    Outer Diameter (mm) 3.0
    Operating Temperature (°C) -20 ~ +75
    Storage Temperature (°C) -20 ~ +75

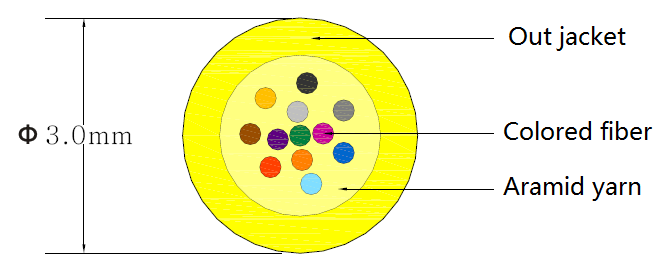

    Cable Structure

    Fiber Identification and Polarization Classification

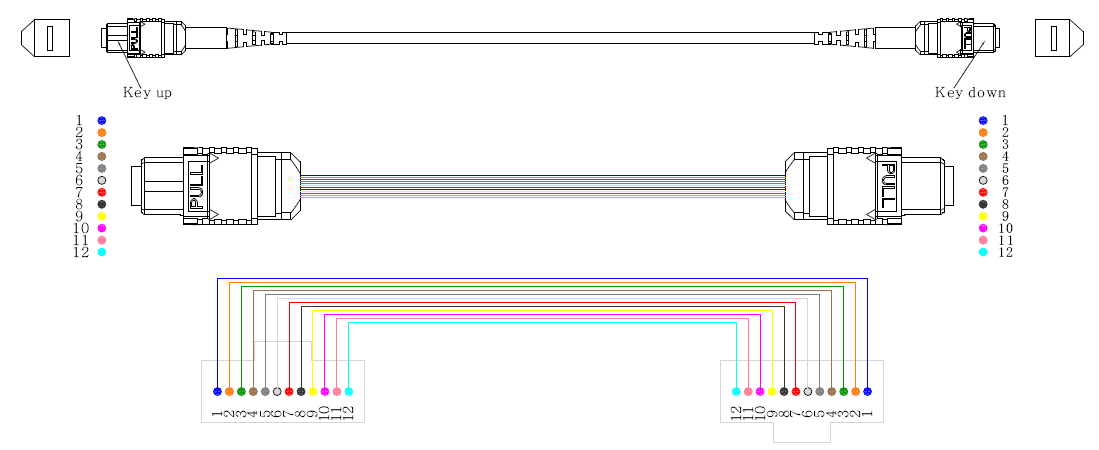

    Polarization A: Straight connection

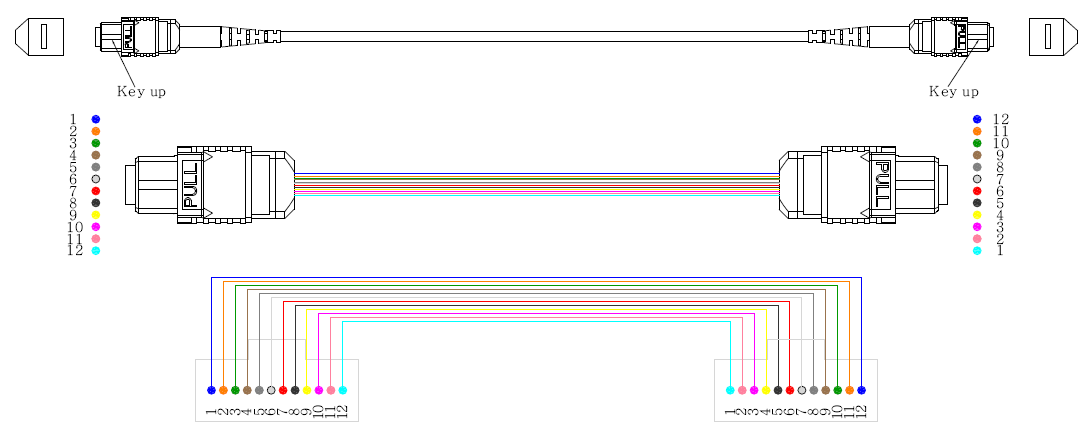

    Polarization B: Cross connection

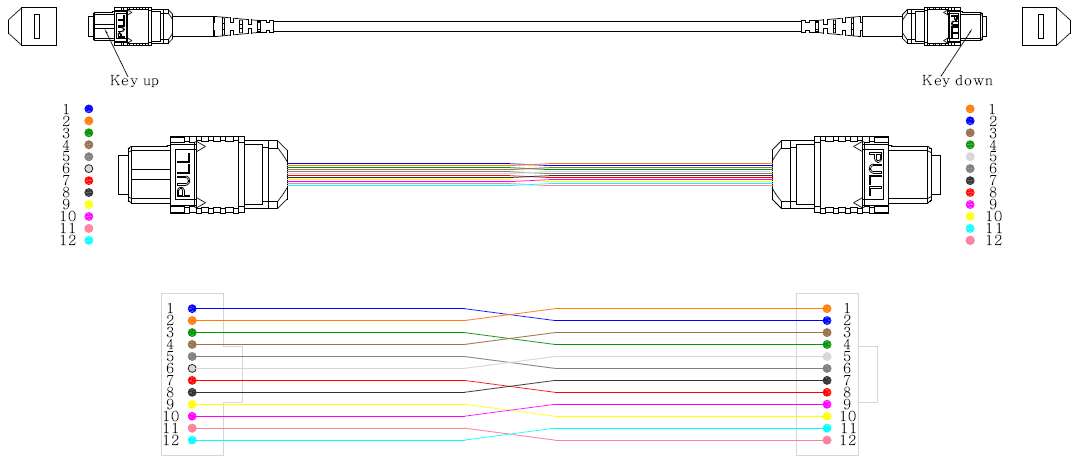

    Polarization C: Pair cross connection

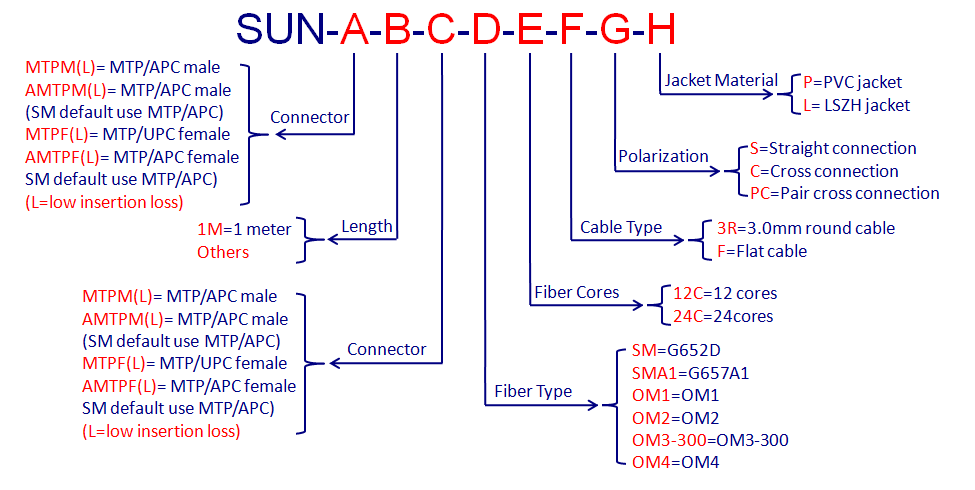

  • Example: SUN-AMTPF-1M-AMTPF-SM-12C-3R-C-L
    MTP/APC (Female)-MTP/APC (Female); Total length: 1M (Tolerance:0~0.1M); SM G652D, 12 cores, 3.0mm round cable, LSZH jacket; Cross connection

  • ● Data center
    ● Telecommunication networks
    ● Backbone networks
