Managed, 4*10G SFP+, 24*10/100/100M, rack mount, operation temperature: -40~75℃
|
Parameters
|
Specification
|
|
Standard
|
IEEE 802.3
|
|
Data (Mbps)
|
10/100/1000
|
|
Ethernet Interface
|
24* 10/100/1000M RJ-45 port or 24*1000M SFP slots
|
|
Optical Interface
|
4* 10G SFP+ slots
|
|
Transmission Distance (km)
|
SM: 20/40/60/80/100
MM: 0.55 |
|
Ring Topology
|
Not support
|
|
Star Topology
|
Support
|
|
Bus Topology
|
Support
|
|
Tree Topology
|
Support
|
|
Hybrid Topology
|
Support
|
|
Switching capacity (Gpbs)
|
36
|
|
Packet forwarding Rate (Mpps)
|
26.78
|
|
MAC Address Table
|
16K
|
|
Switching Delay (μs)
|
≤ 10
|
|
Buffer
|
12M
|
|
Flow control
|
Support
|
|
Jumbo Frame
|
Support
|
|
WatchDog
|
Support
|
|
Port Isolation
|
Support
|
|
Ring Protocol
|
Support ERPS
|
|
Link Aggregation
|
Support 12groups
|
|
Multicas
|
Support IGMP Snooping
|
|
Port Mirroring
|
Support
|
|
Storm Control
|
Support
|
|
Interface Counters
|
Support
|
|
QINQ
|
Support
|
|
802.1X Authentication
|
Support
|
|
MAC Authentication
|
Support
|
|
Port Isolation
|
Support
|
|
Rmon
|
Support
|
|
NTP client
|
Support
|
|
DHCP client
|
Support
|
|
DHCP snooping
|
Support
|
|
Ping/tracert
|
Support
|
|
Dying gasp
|
Support
|
|
Layer 3
|
Static route 1K
|
|
Power Input
|
AC100~240V and DC 12~58V dual power (Non-POE)
DC 48~58V dual power (POE) |
|
Protection Rating
|
IP40
|
|
Installation Type
|
Rack mounting
|
|
MTBF (h)
|
100,000
|
|
Operation Temperature (°C)
|
-40 ~ +75
|
|
Humidity
|
10~ 90% (non-condensing)
|
|

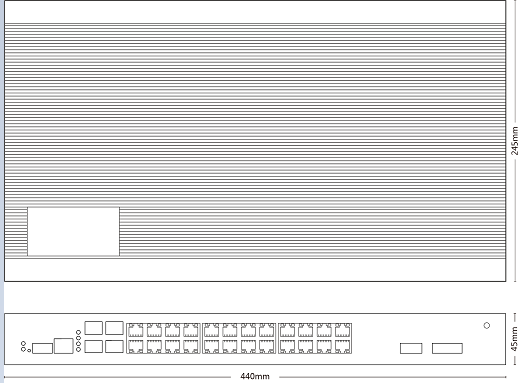

Dimension (mm)
|
440 (L) x 245 (W) x 45 (H)
|
|
Weight (kg)
|
3.1
|
|
Model
|
Product Name
|
Description
|
|
SUN-IE4XGSFPM-F24-AC-DC-75
|
Fiber Optic Switch
|
Industrial grade, managed,4*10G SFP+, 24*10/100/1000Mpbs SFP slots (SFP module NOT included); Rack-mounted, dual power supply: AC100~240V+DC12~58V; Operation Temperature (°C): -40 ~ +75; Dimension (mm): 440 (L) x 245 (W) x 45 (H)
|
|
SUN-IE4XGSFPM-C24-AC-DC-75
|
Fiber Optic Switch
|
Industrial grade, managed,4*10G SFP+, 24*10/100/1000Mpbs RJ45 ports ; Rack-mounted, dual power supply: AC100~240V+DC12~58V; Operation Temperature (°C): -40 ~ +75; Dimension (mm): 440 (L) x 245 (W) x 45 (H)
|
|
No.
|
Name
|
Unit
|
Quantity
|
|
1
|
Fiber Optic Switch
|
piece
|
1
|
|
2
|
Power Line
|
piece
|
1
|
|
3
|
User Manual
|
piece
|
1
|
|
No.
|
Name
|
Unit
|
Quantity
|
|
1
|
AC100~240V to DC 24V Power Adapter
|
piece
|
1
|
