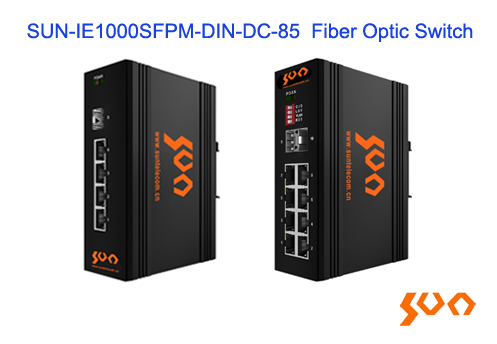

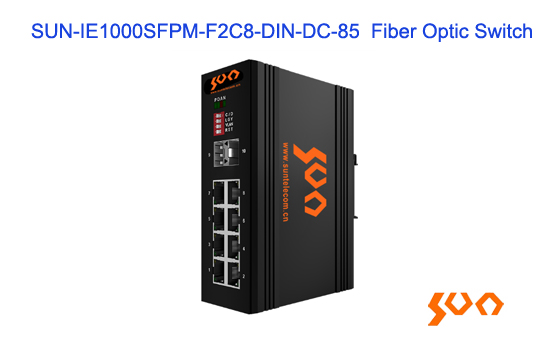

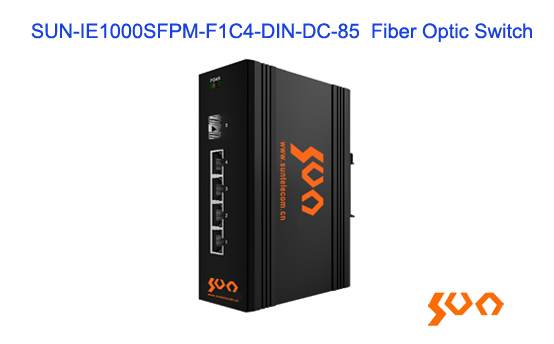

Managed, 10/100M or 10/100/100M, Din-rail mounting
| Parameters | Specification |
| Standard | IEEE 802.3 |
| Data (Mbps) | 10/100/1000 |
| Ethernet Interface | 4/8 RJ-45 port |
| Optical Interface | 1/2 SFP slots |
| Transmission Distance (km) | SM: 20/40/60/80/100 MM: 0.55 |
| Ring Topology | Support |
| Star Topology | Support |
| Bus Topology | Support |
| Tree Topology | Support |
| Hybrid Topology | Support |
| Switching capacity (Gpbs) | 36 |
| Packet forwarding Rate (Mpps) | 26.78 |
| MAC Address Table | 16K |
| Switching Delay (μs) | ≤ 10 |
| Buffer | 12M |
| Flow control | Support |
| Jumbo Frame | Support |
| WatchDog | Support |
| Port Isolation | Support |
| Ring Protocol | Support ERPS |
| Link Aggregation | Support 12groups |
| Multicas | Support IGMP Snooping |
| Port Mirroring | Support |
| Storm Control | Support |
| Interface Counters | Support |
| QINQ | Support |
| 802.1X Authentication | Support |
| MAC Authentication | Support |
| Port Isolation | Support |
| Rmon | Support |
| NTP client | Support |
| DHCP client | Support |
| DHCP snooping | Support |
| Ping/tracert | Support |
| Dying gasp | Support |
| Power interface | Phoenix terminal, dual power redundancy |
| Power Input | DC 10~58 |
| Overload | Support |
| Protection Rating | IP40 |
| Surge protection of Power | IEC 61000-4-5 Level X (6KV/6KV）（8/20us) |
| Surge protection of Ethernet port） | IEC 61000-4-5 Level 4 (4KV/4KV）（10/700us) |
| Installation Type | Din-rail mounting |
| MTBF (h) | 100,000 |
| Humidity | 10~ 90% (non-condensing) |

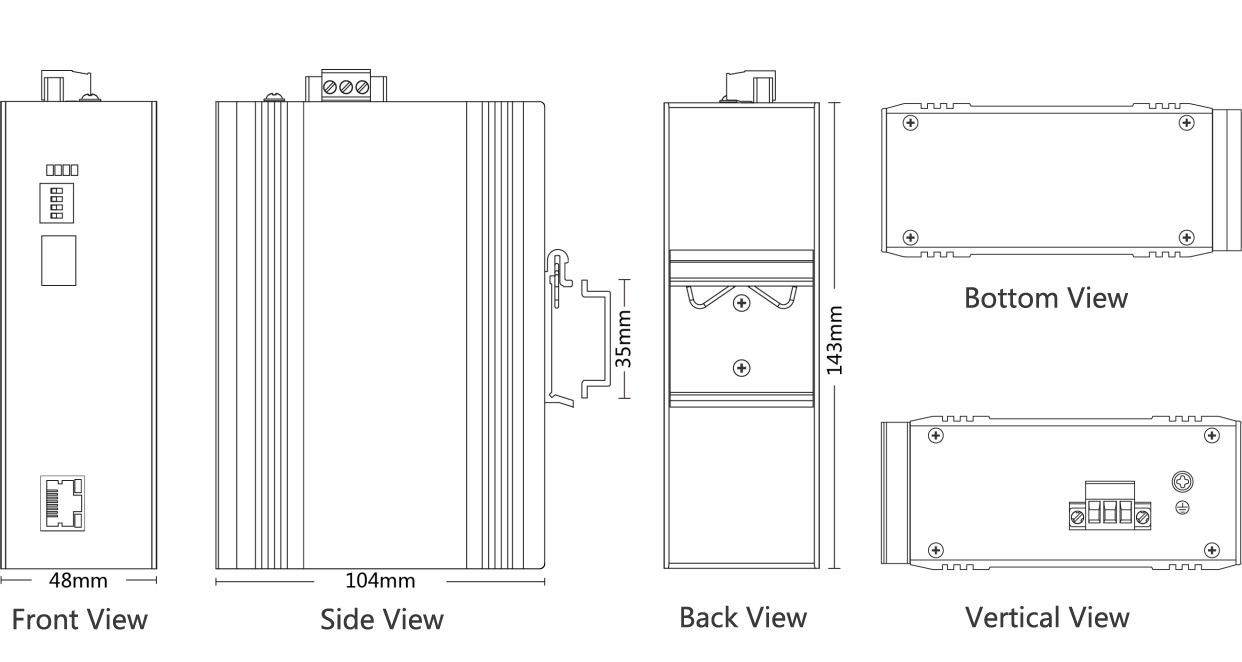

| Dimension (mm) | 143 (L) x 104 (W) x 48 (H) |
| Weight (kg) | 0.6 |
| POE Power Supply | IEEE 802.3af standard 48V 15.4W IEEE 802.3at standard 48V 30W |
| POE Pins | V+: 1, V+: 2, V-: 3 and V-: 6 |
| Operation Temperature (°C) | -40 ~ +75 (with POE function) |
| -40 ~ +85 (without POE function) |
| No. | Name | Unit | Quantity |
| 1 | Fiber Optic Switch | piece | 1 |
| 2 | User Manual | piece | 1 |
| No. | Name | Unit | Quantity |
| 1 | AC100~240V to DC 24V Power Adapter | piece | 1 |
