SUN-IC-D1X Zipcord Duplex Fiber Optic Patch Cable

Model: SUN-IC-D1X

900μm or 600μm tight buffer fiber, PVC or LSZH jacket

    Key Features

  • 900μm or 600μm tight buffer fiber, aramid yarn, PVC or LSZH jacket
  • Excellent stripping performance of tight buffer fiber
  • Suitable for SM fiber and MM fiber (50μm and 62.5μm)
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video

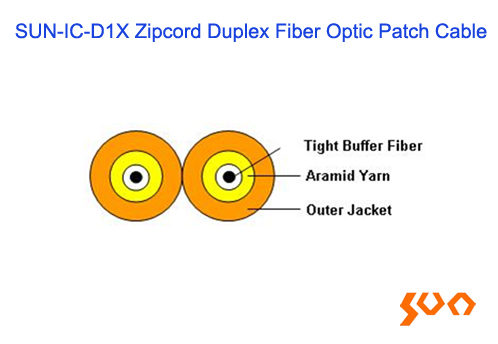

  • Sun Telecom's SUN-IC-D1X zipcord duplex fiber optic patch cable uses 900μm or 600μm tight buffer fiber as optical communication medium. The tight buffer fiber is wrapped with a layer of aramid yarn as strength member. The cable is completed with a figure 8 PVC or LSZH jacket.
  • Cable Specifications
    Parameters Specification
    Cable Type φ3.0 φ2.0 Φ1.8 φ1.6
    Cable Diameter (mm) 2.85 x 5.80 1.95 x 4.00 1.80 x 3.70 1.75 x 3.60
    Cable Weight (kg/km) 14 8 7.8 7.6
    TBF Diameter (μm) 900±50 600±50
    Fiber Type (Core/cladding) (um) 9/125, 50/125, 62.5/125
    Material of Jacket PVC1 or LSZH
    Tensile Strength (N) Short Term 200 200 200 100
    Long Term 100 100 100 50
    Bending Radius (mm) Dynamic 20D
    Static 10D
    Attenuation (After Cable (dB/km) MM Fiber @850nm ≤ 3.5
    MM Fiber @1300nm ≤ 1.5
    SM Fiber @1310nm ≤ 0.4
    SM Fiber @1550nm ≤ 0.3
    Operating Temperature (°C) -20 ~ +60
    Storage Temperature (°C) -20 ~ +60
    Note 1: The default PVC jacket is not OFNR or OFNP. OFNR or OFNP is optional as special request.

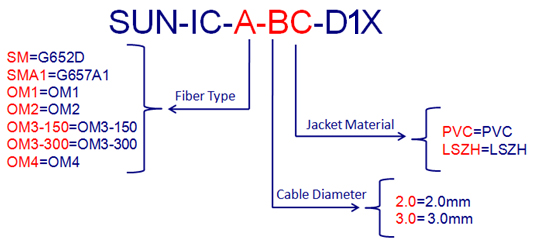

  • Example: SUN-IC-SM-3PVC-D1X-I
    Patch cable; SM 9/125um, G652D; Duplex; 3.0mm PVC jacket

  • ● Fiber optic patchcord or pigtail
