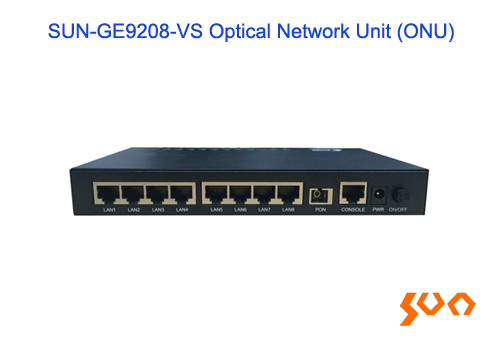

SUN-GE9208-VS Optical Network Unit (ONU)

Model: SUN-GE9208-VS

1xSC ⁄ UPC optical port and 8x10 ⁄ 100M RJ45 ports

    Key Features

  • Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc
  • Integrated OAM remote configuration and maintenance function
  • Support rich QinQ VLAN function and IGMP Snooping multicast function
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-GE9208-VS optical network unit (ONU) is one of the EPON products used in user’s side. This ONU has 1 x SC/UPC optical port and 8 x 10/100M RJ45 ports. It is compliant with IEEE EPON standard. It provides high-speed Internet access service.
  • Specifications
    Parameters Specification
    Rate (Gbps) Uplink: 1.244
    Downlink: 1.244
    Optical Output Power (dBm) -1 ~ 4
    Receiving Sensitivity (dBm) -27
    Receiving Saturability (dBm) -3
    PON Interface 1 x SC/UPC optical port
    Data Interface 8 x 10/100M RJ45 ports
    Power Supply (V) External power adapter, 12V/0.5A
    Power Consumption (W) < 12
    Working Temperature (ºC) -10 ~ +55
    Humidity 10 ~ 90%, no condensing
    Dimensions (mm) 205 (L) x 125 (W) x 28 (H)
    Weight (g) 400

    Standard Package
    No. Name Unit Quantity
    1 Optical Network Unit (ONU) set 1
    2 Power Adapter set 1
    3 UTP Patch Cord piece 1

  • Ordering Information
    Model Name Description
    SUN-GE9208-VS Optical Network Unit (ONU) EPON; 1 port of SC/UPC and 8 port of 10/100/M RJ45; External power supply: AC 100~240V to DC 12V power adapter

    Other Options of ONUs
    Model Name Description
    SUN-GE9201GW-VS Optical Network Unit (ONU) EPON; 1 port of SC/UPC and 1 port of 10/100/1000M RJ45; With Wi-Fi; External power supply: AC 100~240V to DC 12V power adapter
    SUN-GE9204GP2W-VS Optical Network Unit (ONU) EPON; 1 port of SC/UPC, 4 ports of 10/100/1000M RJ45 and 2 ports of VoIP POTS; With Wi-Fi; External power supply: AC 100~240V to DC 12V power adapter
    SUN-GE9204GP2RW-VS Optical Network Unit (ONU) EPON; 1 port of SC/APC, 4 ports of 10/100/1000M RJ45, 2 ports of VoIP POTS and 1 port of CATV Threaded F-female (British); With Wi-Fi; External power supply: AC 100~240V to DC 12V power adapter
    SUN-GE9201H(Z)G-VS Optical Network Unit (ONU) EPON; 1 port of SC/UPC and 1 port of 10/100/1000M RJ45; External power supply: AC 100~240V to DC 12V power adapter

  • ● FTTH access networks
    ● Telecommunication networks
    ● Local Area Networks
