Position:
Home >
Products
> Fiber Optic Tools
> Fusion Splicers / Fiber Cleavers

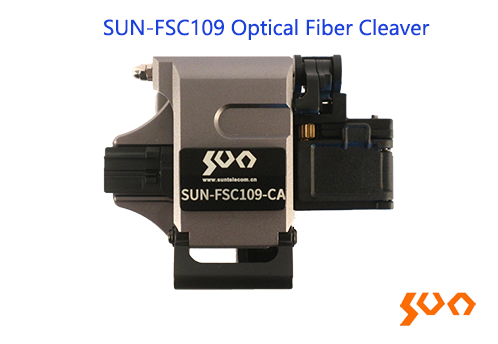

Single core, Metal body, 48,000 times blade life, Ordinary trash can and automatic recycling trash can are optional
|
Model
|
SUN-FSC109-C
|
SUN-FSC109-CA
|
|
Trash Can
|
Include without Automatic
recycling |
Include with Automatic
recycling |
|
Applicable range
|
Single Core
|
|
|
Coating Diameter (mm)
|
250 ~ 900
|
|
|
Fiber Diameter (um)
|
125
|
|
|
Cleaving Angle
|
≤ 0.5°
|
|
|
Blade Life (times)
|
48000
|
|
|
Cleave Length (mm)
|
8~20
|
|
|
Dimension (mm)
|
59 (L) x 55 (W) x 49 (H)
|
|
|
Weight (g)
|
255
|
|
| Model | Name | Description |
|
SUN-FSC109-C
|
Optical Fiber Cleaver
|
Single fiber, 250/900um; Life of blade: 48,000 times; Including trash can(without Automatic recycling)
|
|
SUN-FSC109-CA
|
Optical Fiber Cleaver
|
Single fiber, 250/900um; Life of blade: 48,000 times; Including trash can( Automatic recycling)
|
SUN-FS1290-I Fiber Optic Fusion Splicer
Model: SUN-FS1290-I
Backbone type; Single fiber fusion, touch screen; 6 motors
Features
Auto-splicing mode 6 motors core alignment Feeder fiber optic cable splicing 6s fast splicing mode and 20s heating time 5 inch touch screen
SUN-FS1230-I Fiber Optic Fusion Splicer
Model: SUN-FS1230-I
Backbone type; Single fiber fusion, touch screen
Features
Feeder fiber optic cable splicing 6s fast splicing mode and 20s heating time Precise aligning, clad aligning methods 5 inch touch screen
SUN-TK100P-N Fiber Optic Tool Kit
Model: SUN-TK100P-N
Suitable for cable installation
Features
Easy to carry All kinds of tools
SUN-ODB-RM2C Fiber Optic Terminal Box
Model: SUN-ODB-RM2C
19-inch Rack mount sliding type
Features
19-inch standard structure Sliding design, rack mounted FC square/SC/DSC/ST adapter panel
SUN-1000 Media Converter
Model: SUN-1000
10/100/1000Mbps, 1xRJ45, 1xOptical port
Features
1000Mbps transmission rate Compliance with IEEE standards MTBF of more than 50000 hours Full & half duplex operation and auto-negotiation Electric interface self-adapting parallel/crossover connections Longest 1552 byte data packet transmission QoS ensuring VoIP data packet transmission STP Spanning Tree forming a redundant network Low power consumption and low heat for longtime stable operation Single/Multi mode and Single/Dual fiber transmission modes Network Management Function (optional)
