Backbone type, 6 motors, single fiber fusion, core alignment, 6s fusion splicing
| Parameters | Specification |
| Applicable Fibers | SM (G.652 & G.657), MM (G.651), DS (G.653), NZDS (G.655),EDF |
| Fiber Type | Single core |
| Splice Loss (dB) | 0.02 (SM) 0.01 (MM) 0.04 (DS/NZDSF) |
| Typical Splice Loss (dB) | 0.01~0.05 |
| Return Loss (dB) | ≥60 |
| Typical Splicing Time (s) | 6 |
| Typical Heating Time (s) | 20 (time can be set and temperature can be adjusted) |
| Fiber Aligning Methods | core alignment |
| Fiber Diameter (μm) | Cladding diameter: ≥100 Coating diameter: 125 ~ 1000 |
| Fiber Cleaved Length (mm) | 8 ~ 16 |
| Fiber Holder | Multifunctional holder (used for bare fiber, pigtail, patch cord and drop cable) |
| Heat Shrink Tubing (mm) | 20~60 |
| Tension Test (N) | 1.5~2.0 |
| Lighting | 3 high-power LED whit light |
| Display | 5 inch touch screen |
| Operation Method | Button/ touch screen |
| Screen Lightness Adjustable | Yes |
| Fiber Image Magnification | Double click 500X (X, Y, X/Y view) |
| Splicing Program | 41 |
| Heating Program | 50 |
| Storage of Splice Loss | 20000 pieces |
| Terminal | Mini USB2.0 |
| Battery | Li-battery, 5200mAh, no less than 280 times (splicing and heating) |
| Electrode Life | 3000 ARCS (battery life can be extended more than 20% by using an electrode grinder) |
| Power Supply | Input AC 100 ~ 240V Output DC 12~15V |
| Operation Temperature (℃) | -10 ~ +50 |
| Storage Temperature (℃) | -40 ~ +60 |
| Relative Humidity | 0 ~ 95%, no condensing |
| Dimensions (mm) | 165(L) × 160 (W) × 140 (H) |
| Weight (kg) | 2.2 (including rubber bumper, not including battery) |

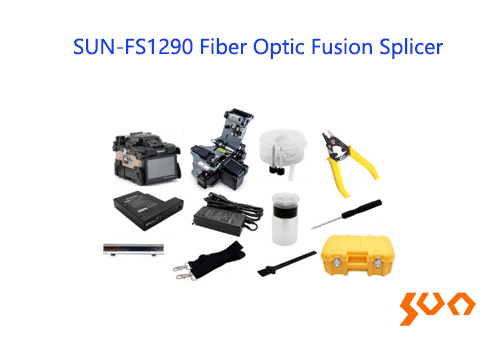

| No. | Name | Unit | Quantity |
| 1 | Fiber Optic Fusion Splicer | set | 1 |
| 2 | Fiber Cleaver (Including trash can) | piece | 1 |
| 3 | Fiber Stripper | piece | 1 |
| 4 | Li-Battery | piece | 1 |
| 5 | Power Adapter | piece | 1 |
| 6 | Spare Electrodes | pair | 1 |
| 7 | Cooling Tray | piece | 1 |
| 8 | Cleaning Tools | set | 1 |
| 9 | USB Disk | piece | 1 |
| 10 | Tool Bag | piece | 1 |
| Model | Name | Description |
| SUN-FS1290-I | Fiber Optic Fusion Splicer | Backbone type; 5 inch touch screen, 6 motors;Single fiber fusion, used with bare fiber, pigtail (0.9mm~3mm jacket), patch cord (0.9mm~3mm jacket), drop cable (2.0x3.1mm); Fiber cleaver(Including trash can) and fiber stripper included; Dimensions (mm) :165 (L) × 160 (W) × 140 (H) |

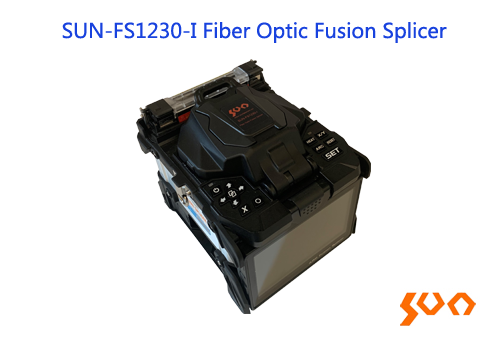

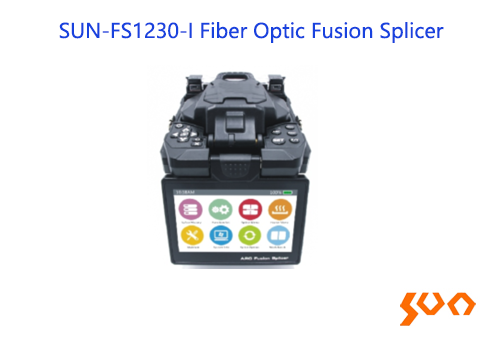

SUN-FS1230-I Fiber Optic Fusion Splicer
Model: SUN-FS1230-I
Feeder type, single fiber fusion, core alignment
Features
Feeder fiber optic cable splicing 6s fast splicing mode and 20s heating time Precise aligning, clad aligning methods 5 inch touch screen
SUN-ODB-RM2C Fiber Optic Terminal Box
Model: SUN-ODB-RM2C
Used in CO as a cable termination 19-inch Rack mount sliding type
Features
19-inch standard structure Sliding design, rack mounted FC square/SC/DSC/ST adapter panel
SUN-1000 Ethernet Media Converter
Model: SUN-1000
10 ⁄ 100 ⁄ 1000Mbps, 1xRJ45, 1xOptical port
Features
Compliance with IEEE standards MTBF of more than 50000 hours Full & half duplex operation and auto-negotiation Electric interface self-adapting parallel/crossover connections Longest 1552 byte data packet transmission QoS ensuring VoIP data packet transmission STP Spanning Tree forming a redundant network Low power consumption and low heat for longtime stable operation Single/Multi mode and Single/Dual fiber transmission modes Network Management Function (optional)
SUN-OT5000 OTDR
Model: SUN-OT5000
Can test SM and MM fibers, optional light source, VFL and power meter
Features
Quick startup FTTX in-service testing (Up to1:64 splitter) Built-in PON power meter for Triple-play testing High configuration series include optical light source, optical power meter, visual fault locator (VFL) and Optical Connector Inspector (MCI) modules USB data interface (PC software for batch data processing and report output) Dustproof and shockproof (2-meter drop test) Light weight, small size, rugged design and simple operation Visual link image software (Optional)
SUN-FOSC-ZT607 Splice Closure
Model: SUN-FOSC-ZT607
Max 96 fibers, 24 fibers tray, 8-16mm cables, 6 ports, sliding locking
Features
Advanced internal design with enough space for fiber splicing and storage Long lasting body with high-strength PC plastic material Protection rating IP68 Usable for multiple number of times Lower and upper cases with sliding locking

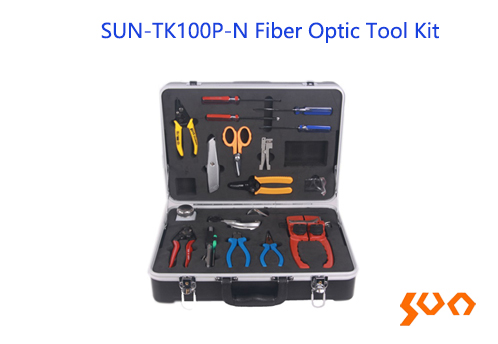

SUN-TK100P-N Fiber Optic Tool Kit
Model: SUN-TK100P-N
Suitable for optical cable installation
Features
Easy to carry All kinds of tools
SUN-GE9100B-VS Optical Line Terminal (OLT)
Model: SUN-GE9100B-VS
1U rack mount, 2/4/8/16 PON ports, up to 1024 users (under 1:64 split ratio) for ONU access
Features
Space saving Convenient for installation and maintenance Maximum 16×PON, 8×Gigabit optical uplink and 8×Gigabit copper uplink ports
