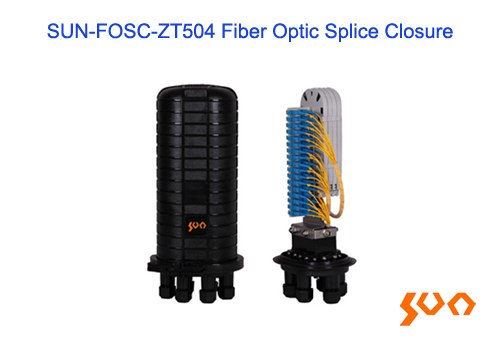

SUN-FOSC-ZT504 Splice Closure

Model: SUN-FOSC-ZT504

Max 96 fibers, 24 fibers tray, 8-16mm cable, 6 ports, mechanical sealing

    Key Features

  • Advanced internal design with enough space for fiber splicing and storage
  • Long lasting body with high-strength PC plastic material
  • Suitable for 2 pieces of 1x8 Blockless PLC splitter
  • Protection rating IP68
  • Cable ports with mechanical sealing
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • 　Sun Telecom's SUN-FOSC-ZT504 fiber optic splice closure is used for not only splicing and branching but also splitting and distribution. This type of closure is suitable for the installation of backbone cables and drop cables with different diameters.
  • Specifications
    Parameters Specification
    Material PC
    Protection Rating IP68
    No. of In-out Ports 6
    Cable Diameter 4 holes: 8~16 mm cables or 3/5 mm drop cables
    2 holes: 8~21 mm cables or 3/5 mm drop cables
    Splitter Type 1*8 blockless PLC splitter
    Adapter Type SC
    No. of Adapters 34
    No. of Fibers/Tray 24
    Max. Capacity of Fibers 96
    Dimensions (mm) 220(D) × 490(H)

    Standard Package
    No. Product Unit Quantity
    1 Closure Box set 1
    2 Protective Sleeves pieces According to no. of fibers
    3 Ties pieces According to no. of trays
    4 Insulation Tape piece 1
    5 Drying Agent piece 1
    6 Ground Wire piece 1
    7 Emery Cloth piece 1
    8 Numbering Paper piece According to no. of fibers
    9 Special Wrenches pieces 2

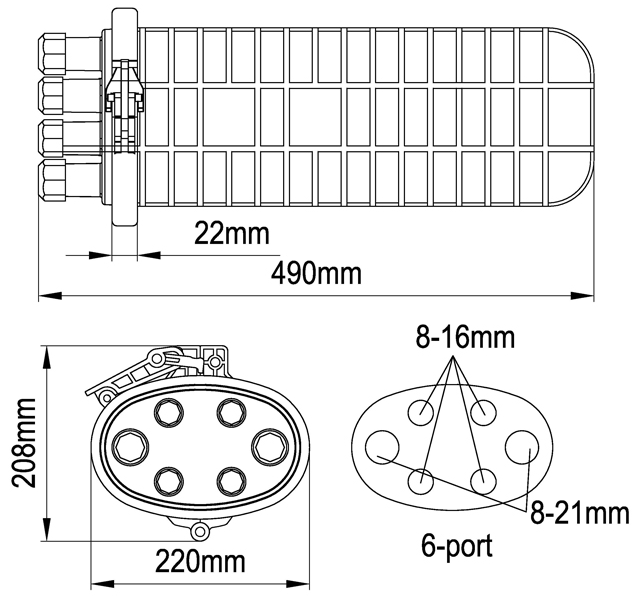

    Structural Drawing

    Optional Accessories
    No. Product Unit Quantity
    1 Earthing Deriving Device set 1
    2 Valve piece 1
    3 Protection Tube piece 1
    4 Port Plug (For Drop Cables) piece 1
    5 Aerial Mounting (Customized) set 1
    6 Wall Mounting (Vertical) set 1
    7 Wall Mounting (Horizontal) (Customized) set 1
    8 Pole Mounting set 1

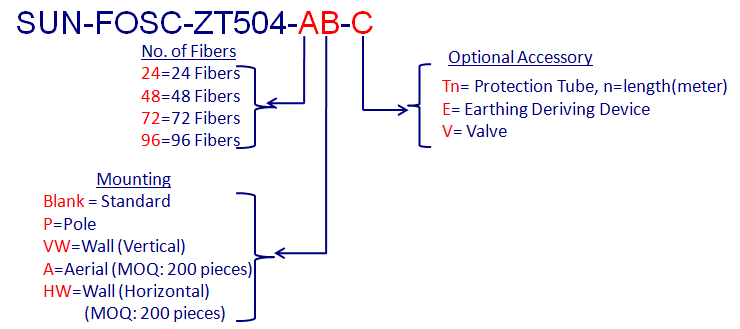

  • Example 1:
    Model Name Description
    SUN-FOSC-ZT504-24P Fiber Optic Splice Closure Dome type, mechanical sealing; 24 fibers, 2 trays of 24 fibers/tray (12 slots/tray) included: 1 tray for splicing and 1 tray for PLC splitter; 6 cable ports, max capacity: 96 fibers, max adapters: 34pcs of SC, max 3 pieces of 1*8 Blockless PLC splitters; IP68, material: PC, dimensions (mm): 220 (D) x 490 (H); With accessories for pole mounting; Adapters, pigtails and PLC splitters NOT included

     Example 2:
    Model Name Description
    SUN-FOSC-ZT504-48VW Fiber Optic Splice Closure Dome type, mechanical sealing; 48 fibers, 3 trays of 24 fibers/tray (12 slots/tray) included: 2 trays for splicing and 1 tray for PLC splitter; 6 cable ports, max capacity: 96 fibers, max adapters: 34pcs of SC, max 3 pieces of 1*8 Blockless PLC splitters; IP68, material: PC, dimensions (mm): 220 (D) x 490 (H); With accessories for wall mounting (vertical); Adapters, pigtails and PLC splitters NOT included

  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local Area Networks
