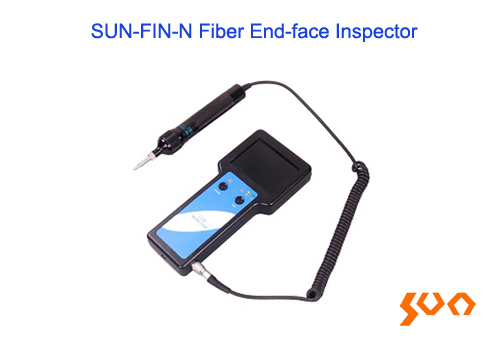

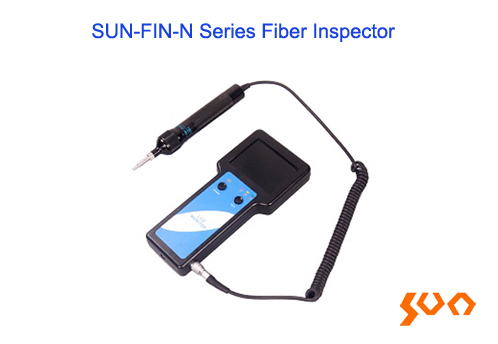

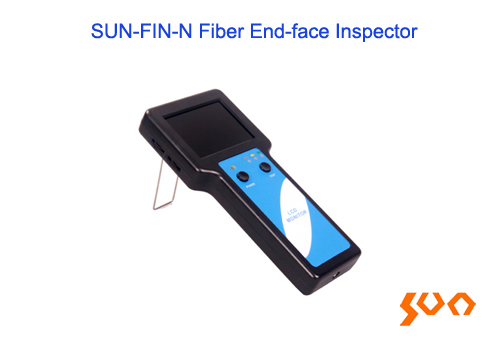

SUN-FIN Fiber Ferrule Inspector

Model: SUN-FIN

This handheld inspector with LCD is easy to view the end face of the ferrule

    Key Features

  • Sharp picture
  • Easy Operation
  • Small size and light weight
  • Low power consumption
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ

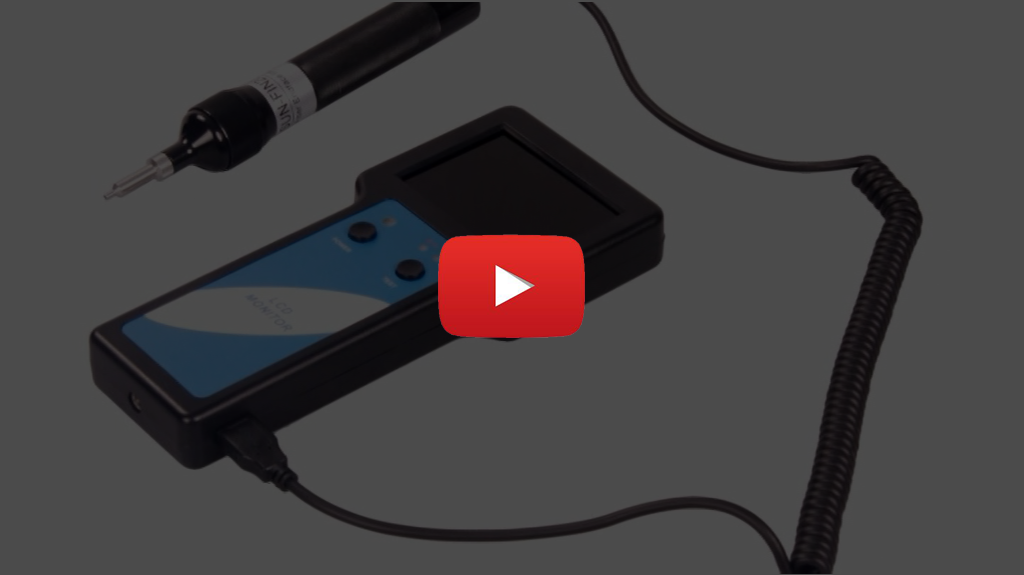

  • Product Video
  • 　Sun Telecom’s SUN-FIN200/400-N fiber ferrule inspector is excellent in performance and convenient in operation.
    With 220k pixel of TFT sharp and finely LCD, which magnifies about 200/400 times of object, it makes you easier to judge the status of fiber ferrule. Its compact size made it an ideal tool of connector ferrule inspection for fiber network installation. Varies of adapters meet different requirements on inspection of male fiber connectors & female fiber connectors, such as FC/SC/ST/E2000/LC/MU and TOSA/ROSA fiber ferrule.
    It keeps working about 6 hours with 12V re-chargeable battery, which installed in monitor, or working with powered supply. Alternative of display is computer monitor through corresponding software.
  • Specifications
    Parameters Specifications
    Model SUN-FIN200-N SUN-FIN400-N
    Image Zoom 200X 400X
    AV Output PAL
    Display Screen 3.5” TFT 220K LCD
    Power Consumption (W) 3
    Working Temp. (°C) -10 ~ +50
    Storage Temp. (°C) -20 ~ +50
    Voltage 12V recharge battery incl. or DC 12V, W/adaptor
    Working Hour Over 6 hours
    Dimensions (mm) Monitor: 205 (L) × 94 (W) × 25 (H) / microscope: φ23 × 160

    Standard Components
    No Components Unit SUN-FIN200-N SUN-FIN400-N
    1 Video Microscope Set 1 (200x) 1 (400x)
    2 Recharger Set 1 1
    3 Handheld LCD Monitor Set 1 1
    4 OLU Optical Unit Piece 1 1

    5

    BNC to Aviation Connector Patch Cord

    		 Piece 1 1
    6 2.5mm Adaptor - male Piece 1 1
    7 1.25mm Adaptor - male Piece 1 1
    8 FC/UPC Adaptor - female Piece 1 1
    9 SC/UPC Adaptor – female Piece 1 1
    10 LC/UPC Adaptor - female Piece 1 1
    11 Suitcase Piece 1 1

    Optional Parts
    No Components Unit SUN-FIN200-N SUN-FIN400-N
    1 Aviation Connector to USB  Patch Cord Piece 1 1
    2 Holder Piece 1 1
    3 Picture Capture Card Piece 1 1

  • Part No. Product Name Picture Description
    SUN-FIN200-N Fiber End Face Inspector Handheld; 200X; OLU optical unit, 2.5mm UPC universal male adaptor, 1.25mm UPC universal male adaptor and FC/SC/LC female adaptors included
    SUN-FIN400-N Fiber End Face Inspector Handheld; 400X; OLU optical unit, 2.5mm UPC universal male adaptor, 1.25mm UPC universal male adaptor and FC/SC/LC female adaptors included

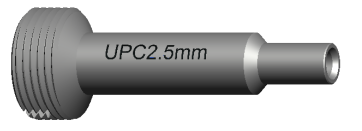

    SUN-FIN-N-250 Adaptor 2.5mm UPC universal male adaptor; Used for SUN-FIN200/400-N Fiber End Face Inspector

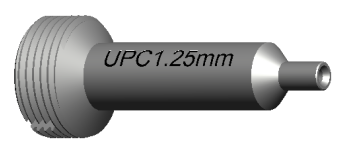

    SUN-FIN-N-125 Adaptor 1.25mm UPC universal male adaptor; Used for SUN-FIN200/400-N Fiber End Face Inspector
    SUN-FIN-N-E2000-M Adaptor E2000/UPC male adaptor; Used for SUN-FIN200/400-N Fiber End Face Inspector

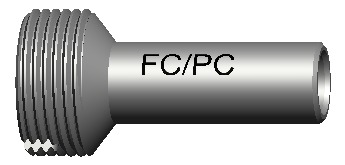

    SUN-FIN-N-FC-F Adaptor FC/UPC female adaptor; Used for SUN-FIN200/400-N Fiber End Face Inspector

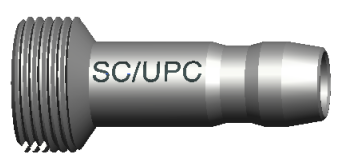

    SUN-FIN-N-SC-F Adaptor SC/UPC female adaptor; Used for SUN-FIN200/400-N Fiber End Face Inspector

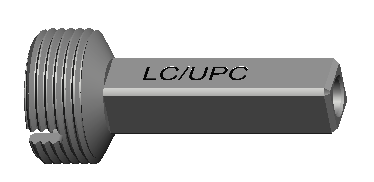

    SUN-FIN-N-LC-F Adaptor LC/UPC female adaptor; Used for SUN-FIN200/400-N Fiber End Face Inspector
    SUN-FIN-N-ST-F Adaptor ST/UPC female adaptor; Used for SUN-FIN200/400-N Fiber End Face Inspector
    SUN-FIN-N-E2000-F Adaptor E2000/UPC female adaptor; Used for SUN-FIN200/400-N Fiber End Face Inspector

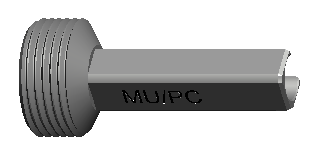

    SUN-FIN-N-MU-F Adaptor MU/UPC female adaptor; Used for SUN-FIN200/400-N Fiber End Face Inspector

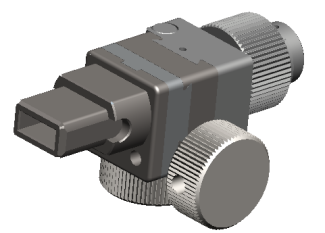

    SUN-FIN-N-MTP-F Adaptor MTP/UPC female adaptor; Used for SUN-FIN200/400-N Fiber End Face Inspector

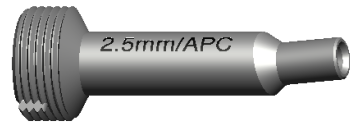

    SUN-FIN-N-A250 Adaptor 2.5mm APC universal male adaptor; Used for SUN-FIN200/400-N Fiber End Face Inspector

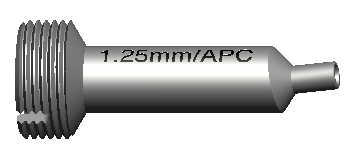

    SUN-FIN-N-A125 Adaptor 1.25mm APC universal male adaptor; Used for SUN-FIN200/400-N Fiber End Face Inspector

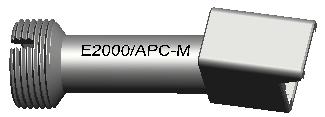

    SUN-FIN-N-AE2000-M Adaptor E2000/APC male adaptor; Used for SUN-FIN200/400-N Fiber End Face Inspector

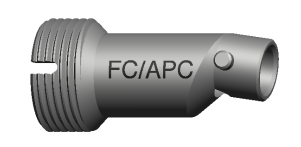

    SUN-FIN-N-AFC-F Adaptor FC/APC female adaptor; Used for SUN-FIN200/400-N Fiber End Face Inspector
    SUN-FIN-N-ASC-F Adaptor SC/APC female adaptor; Used for SUN-FIN200/400-N Fiber End Face Inspector
    SUN-FIN-N-AMTP-F Adaptor MTP/APC female adaptor; Used for SUN-FIN200/400-N Fiber End Face Inspector

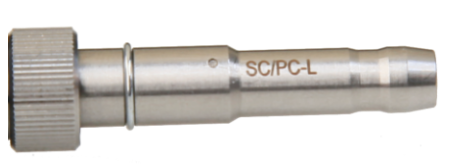

    SUN-FIN-N-SC-L-F Adaptor SC/UPC long type female adaptor(OLU optical unit inside) ; Used for SUN-FIN200/400-N Fiber End Face Inspector

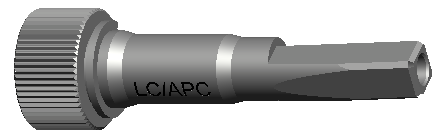

    SUN-FIN-N-ALC-L-F Adaptor LC/APC long type female adaptor(OLU optical unit inside) ; Used for SUN-FIN200/400-N Fiber End Face Inspector

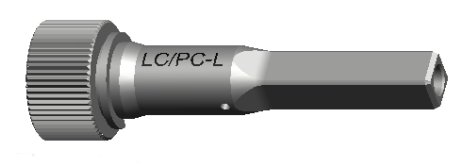

    SUN-FIN-N-LC-L-F Adaptor LC/UPC long type female adaptor(OLU optical unit inside) ; Used for SUN-FIN200/400-N Fiber End Face Inspector

  • ● Fiber network installation
    ● SFP, XFP, TOSA, ROSA inspection
    ● Fiber instrument output inspection
    ● Fiber connector ferrule inspection
