SUN-EC Fiber End-face Inspector

Model: SUN-EC

Integrated design, 200X 400X, FC ⁄ SC ⁄ ST ⁄ LC ⁄ MU adaptors

    Key Features

  • Integrated design
  • Easy operation and clear imaging
  • Image input & output and storage function
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ

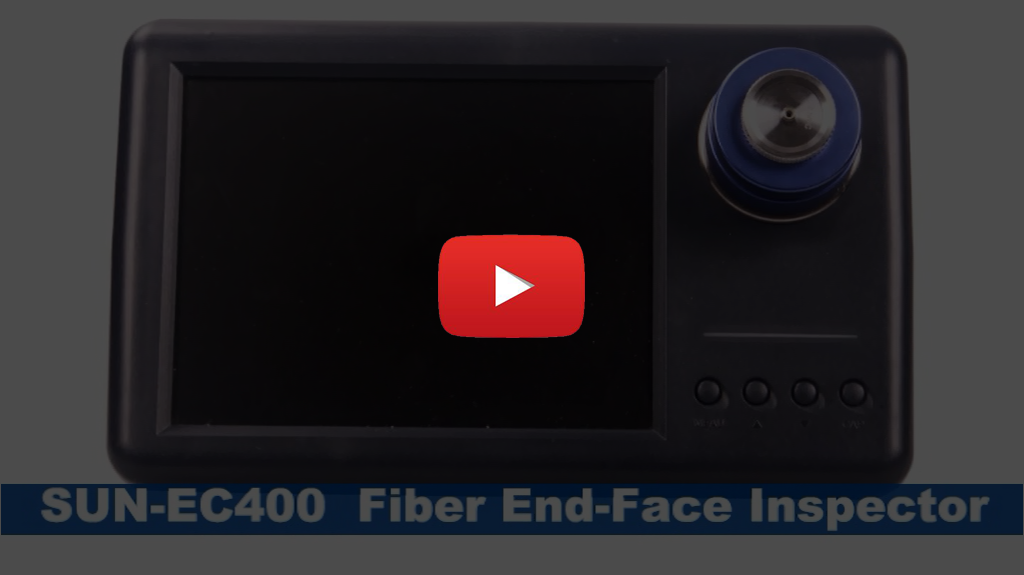

  • Product Video
  • Sun Telecom's SUN-EC series of fiber end-face inspector is integrated equipment which combines an optical microscope and a monitor in one body. SUN-EC series of fiber end-face inspector has clear images and a long lifetime. It has 1.25mm and 2.5mm UPC universal male adaptors for a wide variety of connectors and can save the images to an SD card. It is easy to operate and widely used in fiber optic patch cord manufacturing for fiber optic connector end face quality inspection.
  • Specifications
    Parameters Specification
    Model SUN-EC200 SUN-EC400
    Optical Magnification 200 x 400 x
    Monitor Visual Field (um) 375 ~ 500 180 ~ 250
    Focusing Method Manual
    Image Output Mode PAL
    Displayer 8” TFT, 800*600
    Adaptor Interface 2.5mm UPC universal male adaptor (FC/SC/ST)
    1.25mm UPC universal male adaptor (LC/MU)
    Power Supply (V) Input: AC 100 ~ 240
    Output: DC 12
    Power (w) 3
    Operation Temperature (°C) 10 ~ +50
    Storage Temperature (°C) 0 ~ +55
    Dimensions (mm) 270 (L) x 245 (W) x 155 (H)
    Weight (kg) 1.6

    Standard Package

    No. Name Unit Quantity
    1 Fiber End-face Inspector set 1
    2 2.5mm UPC Universal Male Adaptor piece 1
    3 1.25mm UPC Universal Male Adaptor piece 1
    4 8G SD Memory Card piece 1
    5 Power Adapter piece 1
    6 USB Disk piece 1

    Optional Accessories

    No. Name Unit Quantity
    1 Fiber End-face Inspector Probe (SUN-EC-P200) piece 1
    2 Fiber End-face Inspector Probe (SUN-EC-P400) piece 1

  • Model Name Description
    SUN-EC200 Fiber End-face Inspector Bench-top integrated conventional type, 200x, manual focus; 2.5 mm UPC universal male adaptor and 1.25 mm UPC universal male adaptor included; 8G SD memory card
    SUN-EC400 Fiber End-face Inspector Bench-top integrated conventional type, 400x, manual focus; 2.5 mm UPC universal male adaptor and 1.25 mm UPC universal male adaptor included; 8G SD memory card
    SUN-EC-P200 Fiber End-face Inspector Probe Handheld Fiber End-face Inspector Probe, 200x; 2.5 mm UPC universal male adaptor, 1.25 mm UPC universal male adaptor, FC/SC/LC Female adaptors included; Used for SUN-EC200 and SUN-EC200-A Fiber End-face Inspector
    SUN-EC-P400 Fiber End-face Inspector Probe Handheld Fiber End-face Inspector Probe, 400x; 2.5 mm UPC universal male adaptor, 1.25 mm UPC universal male adaptor, FC/SC/LC Female adaptors included; Used for SUN-EC400 and SUN-EC400-A (P) Fiber End-face Inspector
    SUN-EC-250 Fiber Optic Adaptor 2.5 mm UPC universal male adaptor; Used for SUN-EC200/400 Fiber End-face Inspector
    SUN-EC-125 Fiber Optic Adaptor 1.25 mm UPC universal male adaptor; Used for SUN-EC200/400 Fiber End-face Inspector

  • ● Fiber optic connector end-face inspection
