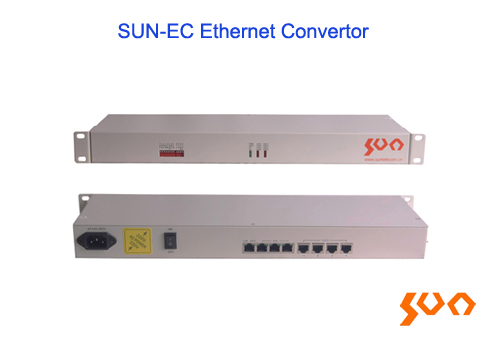

SUN-EC Ethernet Convertor

Position: Home > Products > Active Components > Protocol Optical Multiplexers

Model: SUN-EC

E1 to Ethernet

Key Features

Realize transparent transfer Ethernet data in 1 to 4/8 E1 channels
10M/100M Ethernet, full/half duplex self adapt, support VLAN
Ethernet support AUTO-MDIX( cross over and straight through self adapt)
Setting CRC alarm limitation to auto isolate lines with low transfer quality, single direction. When one direction error rate over limitation, disconnect only one direction, the other is not affected. Unbalance in two directions
Allow 4 E1 channels up to 10ms transfer delay. when the delay over the limitation, can stop transfer automatically
Support Dynamic Ethernet MAC address(4096), having local address filter function
E1 interface having internal clock resume circuit and HDB3 codec circuit
E1 circuit number auto-negotiation, E1 circuit auto assemble/disassemble
E1 interface compliant to ITU G.703, G.704 and G.823
Provide balanced 120-Ohm RJ45 or unbalanced 75-Ohm BNC E1 interface
Optional copper or fiber optic Ethernet interface
Support reset remote system from local system
Support SNMP function (Optional)

Description
Specifications
Ordering Information

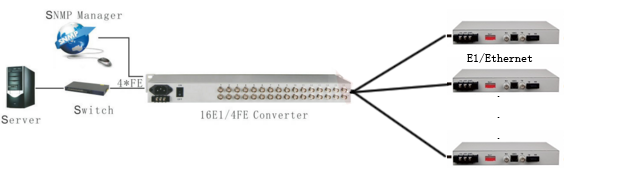

Applications
FAQ
Product Video

　Sun Telecom’s SUN-EC series of Ethernet convertors apply reverse multiplexing technology to transfer 10M/100M Ethernet data by using E1s. It realizes conversion between 1 to 4/8/16 E1 channels and Ethernet interface. It is capable of providing a real Ethernet throughput of 8Mbps respectively. And it also automatically adapted to lower data rates from 2Mbps, in case that less E1 circuits is employed.

Parameters		Specifications
E1 Interface
Interface Standard		comply with protocol G.703
Interface Rate (kbps)		2048kbps ± 50ppm
Interface Code		HDB3
E1 Impedance		75Ω (unbalance), 120Ω (balance)
Jitter Tolerance		In accord with protocol G.742 and G.823
Ethernet Interface (10/100M UTP)
Interface Rate		10/100Mbps, half/full duplex auto-negotiation
Interface Standard		Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
Mac Address Capability		4096
Connector		RJ45, support Auto-MDIX
Operating Environment
Power Supply		AC180V ~ 260V or DC 48V or DC 24V
Power Consumption (W)		≤10
Working Temperature (°C)		-10 ~ 50
Dimension (mm)	Standalone	216(W) * 140(D) * 31(H)
	Rack mount	483(W) * 138(D) * 44(H)
Working Humidity		5%~95 % (no condensation)
Storage Temperature (°C)		-40 ~ 70
Storage Humidity		5%~95 % (no condensation)

Model	Name	Description
SUN-EC-1E1-1FE-75/120	Ethernet Convertor	1 channel E1 to 1 channel Ethernet; 1 port of RJ45 (120Ω) or BNC(75Ω) E1 interface, 1 port of 10/100Mbps RJ45 Ethernet interface; AC 220V
SUN-EC-4E1-1FE-75/120	Ethernet Convertor	4 channel E1 to 1 channel Ethernet; 4 ports of RJ45 (120Ω) or BNC(75Ω) E1 interface, 1 port of 10/100Mbps RJ45 Ethernet interface; AC 220V
SUN-EC-8E1-1FE-75/120	Ethernet Convertor	8 channel E1 to 1 channel Ethernet; 8 ports of RJ45 (120Ω) or BNC(75Ω) E1 interface, 1 port of 10/100Mbps RJ45 Ethernet interface; AC 220V
SUN-EC-1E1-4FE-75/120	Ethernet Convertor	1 channel E1 to 4 channel Ethernet; 1 port of RJ45 (120Ω) or BNC(75Ω) E1 interface, 4 port of 10/100Mbps RJ45 Ethernet interface; AC 220V
SUN-EC-4E1-4FE-75/120	Ethernet Convertor	4 channel E1 to 4 channel Ethernet; 4 ports of RJ45 (120Ω) or BNC(75Ω) E1 interface, 4 ports of 10/100Mbps RJ45 Ethernet interface; AC 220V
SUN-EC-8E1-4FE-75/120	Ethernet Convertor	8 channel E1 to 4 channel Ethernet; 8 ports of RJ45 (120Ω) or BNC(75Ω) E1 interface, 4 ports of 10/100Mbps RJ45 Ethernet interface; AC 220V
SUN-EC-16E1-4FE-75/120	Ethernet Convertor	16 channel E1 to 4 channel Ethernet; 8 ports of RJ45 (120Ω) or BNC(75Ω) E1 interface, 4 ports of 10/100Mbps RJ45 Ethernet interface; AC 220V
