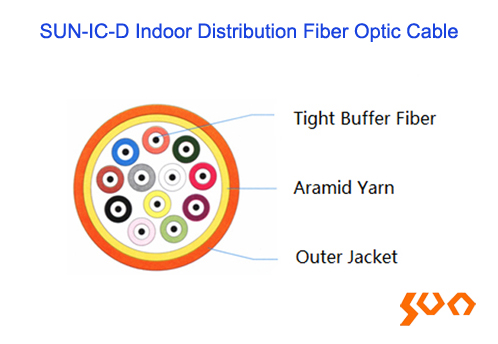

D-type Indoor Cable
| Parameters | Specification | |||
| Fiber Type | G.652D (9/125μm) | G651A1 (50/125μm) |
G651A1b (62.5/125μm) |
|
| Attenuation (dB/km) | @850nm | ≤ 2.3 | ≤ 2.7 | |
| @1300nm | ≤ 0.6 | ≤ 0.6 | ||
| @1310nm | ≤ 0.35 | |||
| @1550nm | ≤ 0.21 | |||
| Bandwidth (MHz·km) | @850nm | ≥500 | ≥ 200 | |
| @1300nm | ≥500 | ≥ 500 | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength (nm) | ≤ 1260 | |||
| Parameters | Specification | ||||||||
| Fiber Count | 2 | 4 | 6 | 8 | 12 | 24 | 36 | 48 | |
| Cable Diameter (±0.5) (mm) | 4.0 | 5.0 | 5.2 | 5.5 | 6.3 | 8.5 | 9.5 | 10.5 | |
| Cable Weight (kg/km) | 13 | 21 | 24 | 28 | 34 | 57 | 72 | 96 | |
| Tensile Strength (N) | Short Term | 440 | 660 | ||||||
| Long Term | 130 | 200 | |||||||
| Crush Resistance (N) | Short Term | 1000 | |||||||
| Long Term | 200 | ||||||||
| Bending Radius (mm) | Dynamic | 20D | |||||||
| Static | 10D | ||||||||
| Attenuation (After Cable (dB/km) | MM Fiber @850nm | ≤ 3.5 | |||||||
| MM Fiber @1300nm | ≤ 1.5 | ||||||||
| SM Fiber @1310nm | ≤ 0.4 | ||||||||
| SM Fiber @1550nm | ≤ 0.3 | ||||||||
| Operating Temperature (°C) | -20 ~ +60 | ||||||||
| Storage Temperature (°C) | -20 ~ +60 | ||||||||
