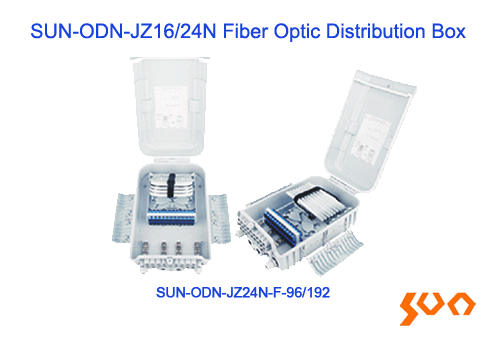

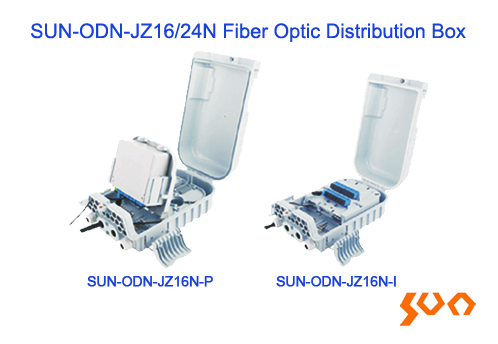

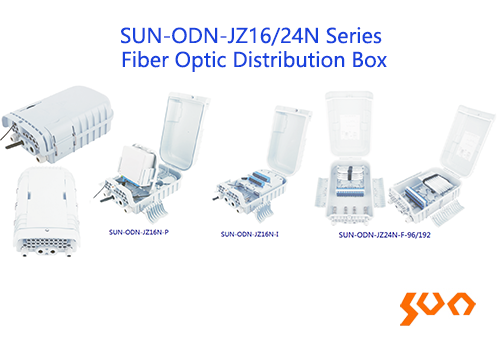

SUN-ODN-JZ16/24N Distribution Box

Model: SUN-ODN-JZ16/24N

Outdoor, 1*1:16 splitters（blockless or insert type）, Max adaptors: 16/24, SC, DLC adaptor

    Key Features

  • Protection rating IP65
  • Moisture-proof, water-proof and anti-aging
  • Indoor or outdoor wall/pole mount
  • SC adapter panel
  • Fast connector applicable
  • Suitable for insert type or blockless type PLC splitter
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • 　Sun Telecom's SUN-ODN-JZ16/24N series fiber optic distribution boxes are widely used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting and distribution can be done in these boxes. These series of boxes provide solid protection and management for the FTTx networks.

  • Specifications
    Parameters Specification
    Model SUN-ODN-JZ16N-P SUN-ODN-JZ16N-I SUN-ODN-JZ24N-F-96 SUN-ODN-JZ24N-F-192
    Max. No. of Adapters / 16 24
    No. of Splice Tray / / 4 8
    Max. Core of Splice Tray / / 12/24 (two sleeves per slot)
    Max. No. of Splitter Max 1pc 1:16 or 2pcs 1:8 insert type splitter Max 1pc 1:16 blockless type splitter
    Adaptor Type SC, DLC (SC type)
    Box Material PC+ABS
    No. of Inlet and Outlet Ports 4 in 16 out 4 in 24 out
    Splitter Type Insert type Blockless type
    Cable Gland Size PG13.5
    Qty 2
    Mid-span Support
    Max. Cable Diameter of mid-span port (mm) 13.5
    Suitable Cable Type of output ports (mm) 2x3mm drop cable or ≤4.5mm round cable or upon customer request
    Environmental Temperature (°C) -25 ~ +55
    Color Gray, (black color is optional but with MOQ)
    Mounting Method Wall mounting or pole mounting
    Dimensions (mm) 287(L)x172(W)x102(H) 353(L)x212(W)x106(H)

    Standard Package
    No. Product Unit Quantity
    1 Box set 1
    2 Ties pieces According to fiber tray
    3 Key piece 1
    4 Protective Sleeves pieces 16/24
    5 Protective Tube (0.3 meter) piece 1
    6 Wall Mount Accessory set 1


  • Ordering Information
    Model Name Description
    SUN-ODN-JZ16N-P-GW Fiber Optic Distribution Box Gray; Suitable for 1 piece of 1x16 (or two pieces of 1x8) insert type PLC splitter; 4 cable input ports(mid-span port included); 16pcs output ports; PLC splitter NOT included; Material: PC+ABS; Dimensions: 287(L)x172(W)x102(H)mm; Wall mount accessories included
    SUN-ODN-JZ16N-P-GP Fiber Optic Distribution Box Gray; Suitable for 1 piece of 1x16 (or two pieces of 1x8) insert type PLC splitter; 4 cable input ports(mid-span port included); 16pcs output ports; PLC splitter NOT included; Material: PC+ABS; Dimensions: 287(L)x172(W)x102(H)mm; Pole mount accessories included
    SUN-ODN-JZ16N-I-GW Fiber Optic Distribution Box Gray; Suitable for 1 piece of 1x16 or 1x8 blockless type PLC splitter; with the adaptor panel for max.16 pieces of SC or duplex LC (SC type); 4 cable input ports(mid-span port included); 16pcs output ports; Adaptors and PLC splitter NOT included; Material: PC+ABS; Dimensions: 287(L)x172(W)x102(H)mm; Wall mount accessories included
    SUN-ODN-JZ16N-I-GP Fiber Optic Distribution Box Gray; Suitable for 1 piece of 1x16 or 1x8 blockless type PLC splitter; with the adaptor panel for max.16 pieces of SC or duplex LC (SC type); 4 cable input ports(mid-span port included); 16pcs output ports; Adaptors and PLC splitter NOT included; Material: PC+ABS; Dimensions: 287(L)x172(W)x102(H)mm; Pole mount accessories included
    SUN-ODN-JZ24N-F-96-GW Fiber Optic Distribution Box Gray; Suitable for 1 piece of 1x16 or 2pcs of 1x8 blockless type PLC splitter; 4pcs of 12/24-core splice trays; with the adaptor panel for max.24 pieces of SC or duplex LC (SC type); 4 cable input ports(mid-span port included); 24pcs output ports; Adaptors and PLC splitter NOT included; Material: PC+ABS; Dimensions: 353(L)x212(W)x106(H)mm; Wall mount accessories
    included
    SUN-ODN-JZ24N-F-96-GP Fiber Optic Distribution Box Gray; Suitable for 1 piece of 1x16 or 2pcs of 1x8 blockless type PLC splitter; 4pcs of 12/24-core splice trays; with the adaptor panel for max.24 pieces of SC or duplex LC (SC type); 4 cable input ports(mid-span port included); 24pcs output ports; Adaptors and PLC splitter NOT included; Material: PC+ABS; Dimensions: 353(L)x212(W)x106(H)mm; Pole mount accessories
    included
    SUN-ODN-JZ24N-F-192-GW Fiber Optic Distribution Box Gray; Suitable for 1 piece of 1x16 or 2pcs of 1x8 blockless type PLC splitter; 8pcs of 12/24-core splice trays; with the adaptor panel for max.24 pieces of SC or duplex LC (SC type); 4 cable input ports(mid-span port included); 24pcs output ports; Adaptors and PLC splitter NOT included; Material: PC+ABS; Dimensions: 353(L)x212(W)x106(H)mm; Wall mount accessories included
    SUN-ODN-JZ24N-F-192-GP Fiber Optic Distribution Box Gray; Suitable for 1 piece of 1x16 or 2pcs of 1x8 blockless type PLC splitter; 8pcs of 12/24-core splice trays; with the adaptor panel for max.24 pieces of SC or duplex LC (SC type); 4 cable input ports(mid-span port included); 24pcs output ports; Adaptors and PLC splitter NOT included; Material: PC+ABS; Dimensions: 353(L)x212(W)x106(H)mm; Pole mount accessories included



  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local Area Networks
