Position: Home > Products > Fiber Optic Cable Management > Fiber Optic Distribution Boxes

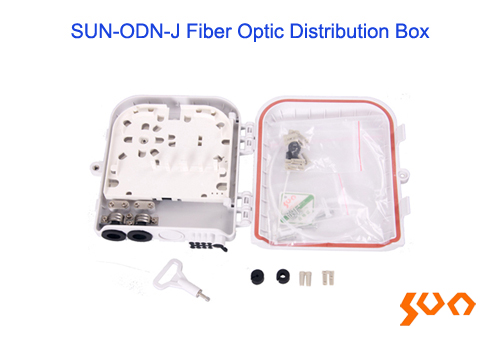

SUN-ODN-J Distribution Box

Model: SUN-ODN-J

Outdoor, 1 1:4 or 1:8 splitter, Max adaptors: 8, SC, DLC adaptor

    Key Features

  • Protection rating IP65
  • Anti-UV, impact resistant and rainfall resistant
  • Wall or pole mount
  • Indoor or outdoor use
  • SC adapter panel
  • Fast connector applicable
  • Suitable for one 1x 4 or 1 x 8 PLC splitter
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  •  Sun Telecom’s SUN-ODN-J fiber optic distribution box allows the installation of PLC splitters and is especially suitable for PON projects. It is made out of high strength engineering plastics with compacted size and light weight.
  • Specifications
    Parameters Specification
    Max. No. of Adapters 8
    Adaptor Type SC, DLC (SC Type)
    Box Material ABS
    Splitter Type Blockless PLC splitter
    No. of Inlet and Outlet Ports 2 in 8 out
    Max. Cable Diameter (mm) 16
    Environmental Temperature (°C) -25 ~ +55
    Weight (kg) 0.8~1.0
    Dimensions (mm) 205(L) ×180 (W) × 50(H)

    Standard Package

    No. Product Unit Quantity
    1 Box set 1
    2 Ties pieces 10
    3 Key piece 1
    4 Protective Sleeves pieces 8
    5 Insulation Tape piece 1

    Optional Accessories

    No. Product Unit Quantity
    1 Screw Set set 1
    2 Hold Hoop set 1

  • Model Name Description
    SUN-ODN-J-W Fiber Optic Distribution Box Suitable for 1 piece of 1x8 (or 1 piece of 1x4) PLC splitter; With the adaptor panel for max. 8 pieces of SC or duplex LC (SC type); Adaptors and PLC splitters NOT included, wall mounting accessories included
    SUN-ODN-J-P Fiber Optic Distribution Box Suitable for 1 piece of 1x8 (or 1 piece of 1x4) PLC splitter; With the adaptor panel for max. 8 pieces of SC or duplex LC (SC type); Adaptors and PLC splitters NOT included, pole mounting accessories included

  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local Area Networks
