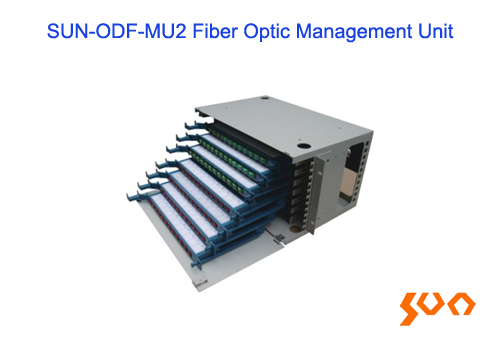

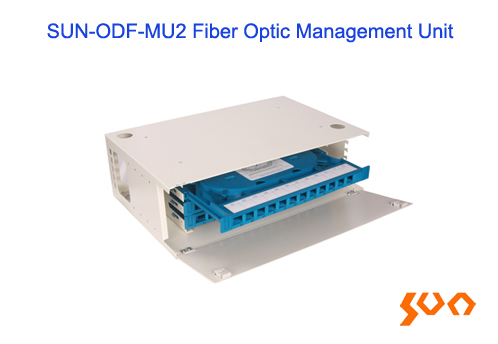

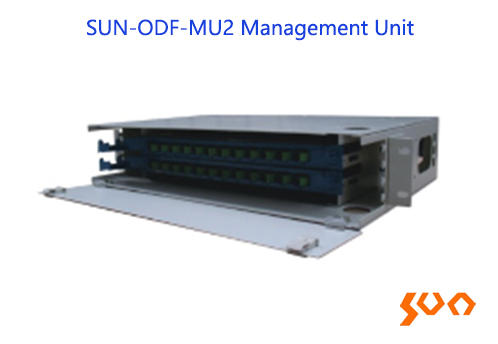

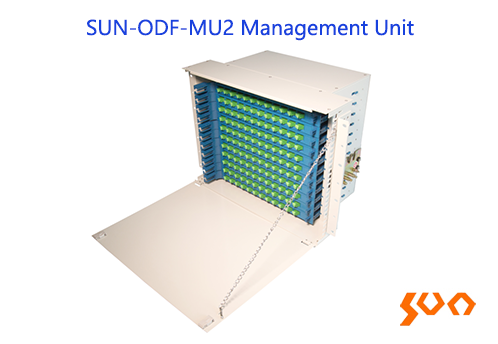

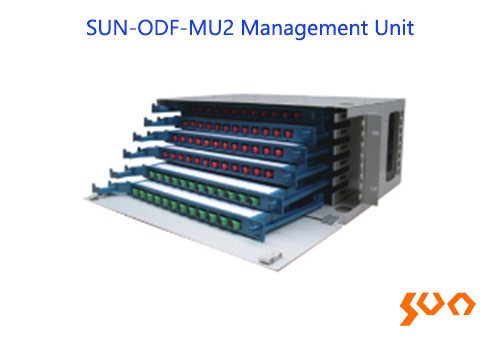

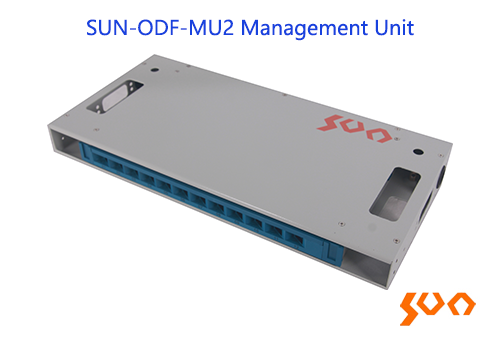

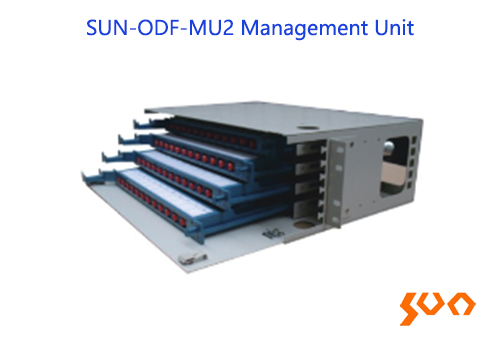

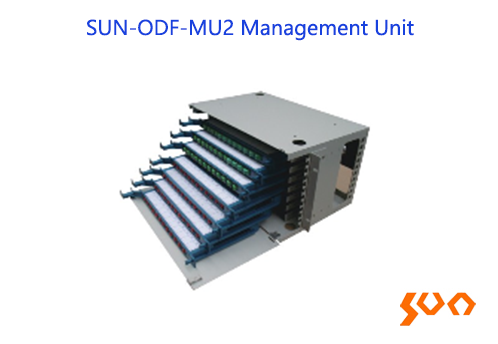

Max cores: 12-96, uses an integrated splice tray structure for easy of use
| Parameters | Specification | ||||||
| Model | SUN-ODF-MU2A-12 | SUN-ODF-MU2B-24 | SUN-ODF-MU2B-48 | SUN-ODF-MU2B-72 | SUN-ODF-MU2B-96 | ||
| Max. No. of Cores | 12 | 24 | 48 | 72 | 96 | ||
| Frame Material | Cold-rolled steel | ||||||
| Adapter Type | FC square, SC, DLC (SC type) | ||||||
|
Insulation Resistance (MΩ) |
1000 @500V (DC) | ||||||
|
Withstanding Voltage (V(D.C)/1min) |
≥3000, no breakdown, no flashover | ||||||
| Dimensions (mm) | 430(W) x 250(D) x 1U(H) | 430(W) x 300(D) x 2U(H) | 430(W) x 300(D) x 3U(H) | 430(W) x 300(D) x 4U(H) | 430(W) x 300(D) x 6U(H) | ||
| Weight (kg) | 3.1 | 5.7 | 7.7 | 9.8 | 13.7 | ||
| Model | Name | Description |
| SUN-ODF-MU2A-12 | Fiber Optic Management Unit | Max. 12 cores, SC/FC (square) panel; Adapters NOT included |
| SUN-ODF-MU2B-24 | Fiber Optic Management Unit | Max. 24 cores, SC/FC (square) panel; Adapters NOT included |
| SUN-ODF-MU2B-48 | Fiber Optic Management Unit | Max. 48 cores, SC/FC (square) panel; Adapters NOT included |
| SUN-ODF-MU2B-72 | Fiber Optic Management Unit | Max. 72 cores, SC/FC (square) panel; Adapters NOT included |
| SUN-ODF-MU2B-96 | Fiber Optic Management Unit | Max. 96 cores, SC/FC (square) panel; Adapters NOT included |
